TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E35505700
Product Family
MAK

Other properties

Terminal Size [mm]
1.2
Application
Signal
Core Material
CuSn
Plating Material
Sn
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
Min Temp (C)
-40
Max Temp (C)
+130

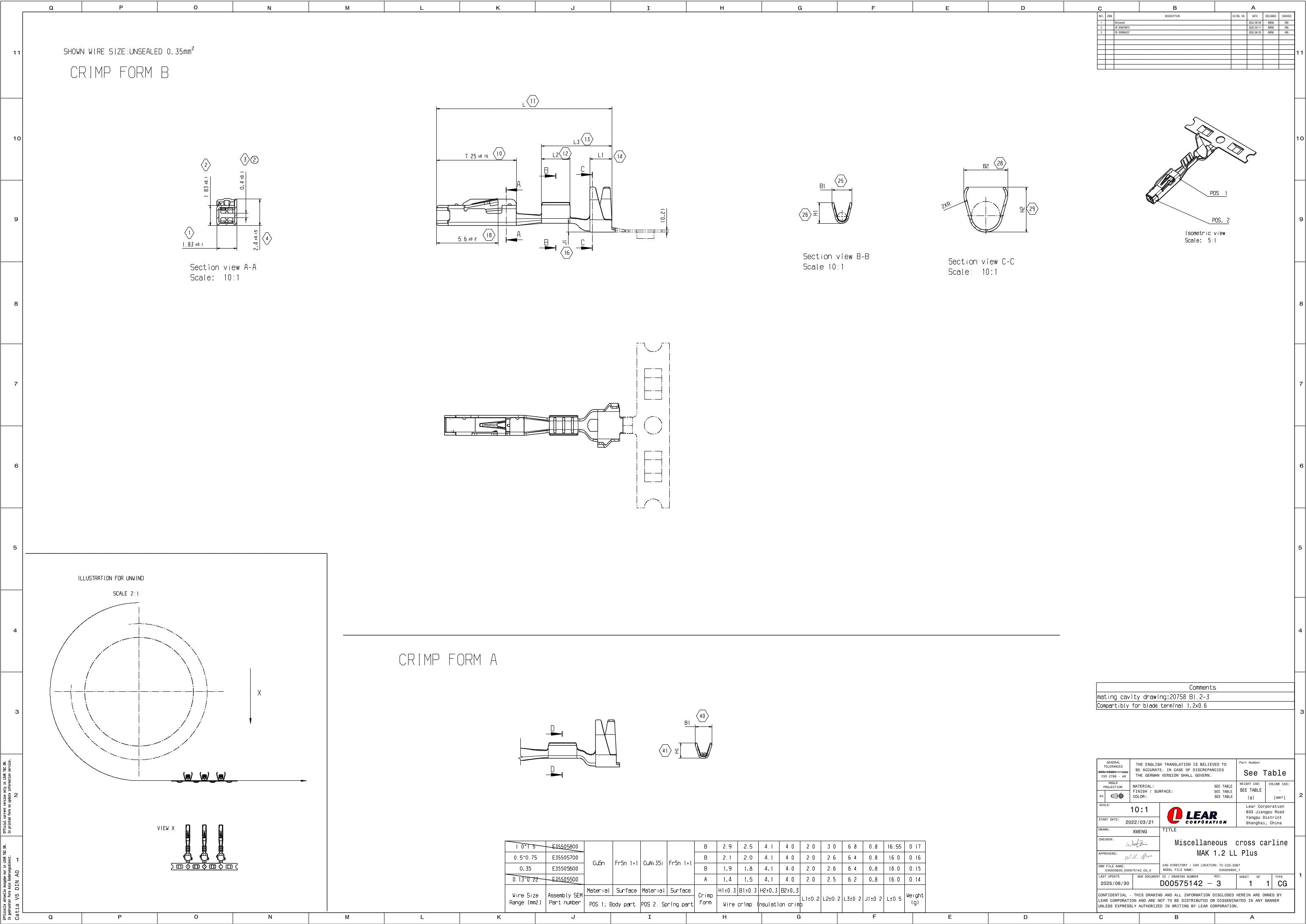

2D Drawing

2D Drawing E35505700

DOWNLOAD
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
2way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
2way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30194200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
2way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
2way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30194300
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30194400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
2way MAK 1.2 Receptacle Sealed Black Connector, Code A
2way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35207200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
2way MAK 1.2 Receptacle Sealed Natural Connector, Code B
2way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E35207400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
2way MAK 1.2 Receptacle Sealed Blue Connector, Code C
2way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E40819500
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30203300
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30203500
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30203700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Black Connector, Code A
3way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35207600
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Natural Connector, Code B
3way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E35207900
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Blue Connector, Code C
3way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E36539700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30205000
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30205200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30205400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35208300
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E40819900
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E35208400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed

E35505700 - MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²

Part Number: E35505700

MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²

Product Specification

A sealed receptacle terminal belonging to the MAK product family, sized at 1.2 mm. It falls within the Terminals product category and is configured for crimp termination.

The terminal operates across a temperature range of −40 to +130 °C, making it suitable for demanding automotive thermal environments.

Part Number: E35505700.

This product requires other components for a fully functional assembly configuration:

Lear Connection Systems is offering other variants of this product:
