TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E35207200
- Product Family
- MAK
Other properties
- No. of cavities
- 2
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- A
- Remarks
- Code A

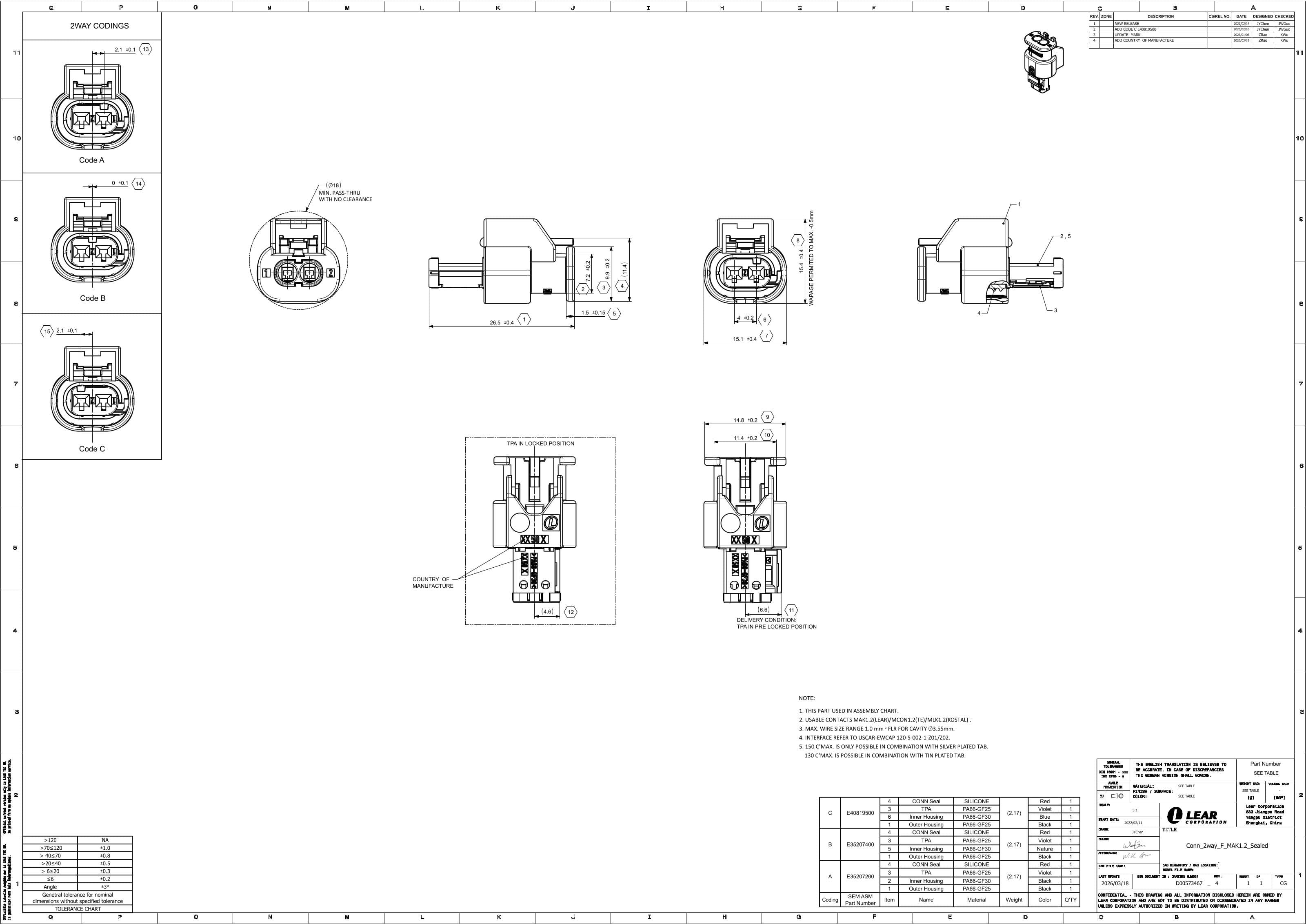

2D Drawing
2D Drawing E35207200
E35207200 - 2way MAK 1.2 Receptacle Sealed Black Connector, Code A
Part Number: E35207200
.PNG&w=3840&q=75)
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 2-cavity receptacle with a terminal size of 1.2 mm. The connector is fully sealed.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mechanical coding type A serves as the poka-yoke mating feature, ensuring correct connector orientation and preventing mismating.
The main connector part is molded in PA66 GF with a dominant black color. The operating temperature range spans -40 to 150 °C.
Additional note: Code A.
Part Number: E35207200.
