TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E35208400
Product Family
MAK

Other properties

No. of cavities
4
Terminal Type
Receptacle
Terminal Size [mm]
1.2
Sealable
Sealed
Color
BLUE
Min Temp (C)
-40
Max Temp (C)
150
Connector Application
Sensors, On Engine, 48V
Mechanical coding
C
Remarks
Code C

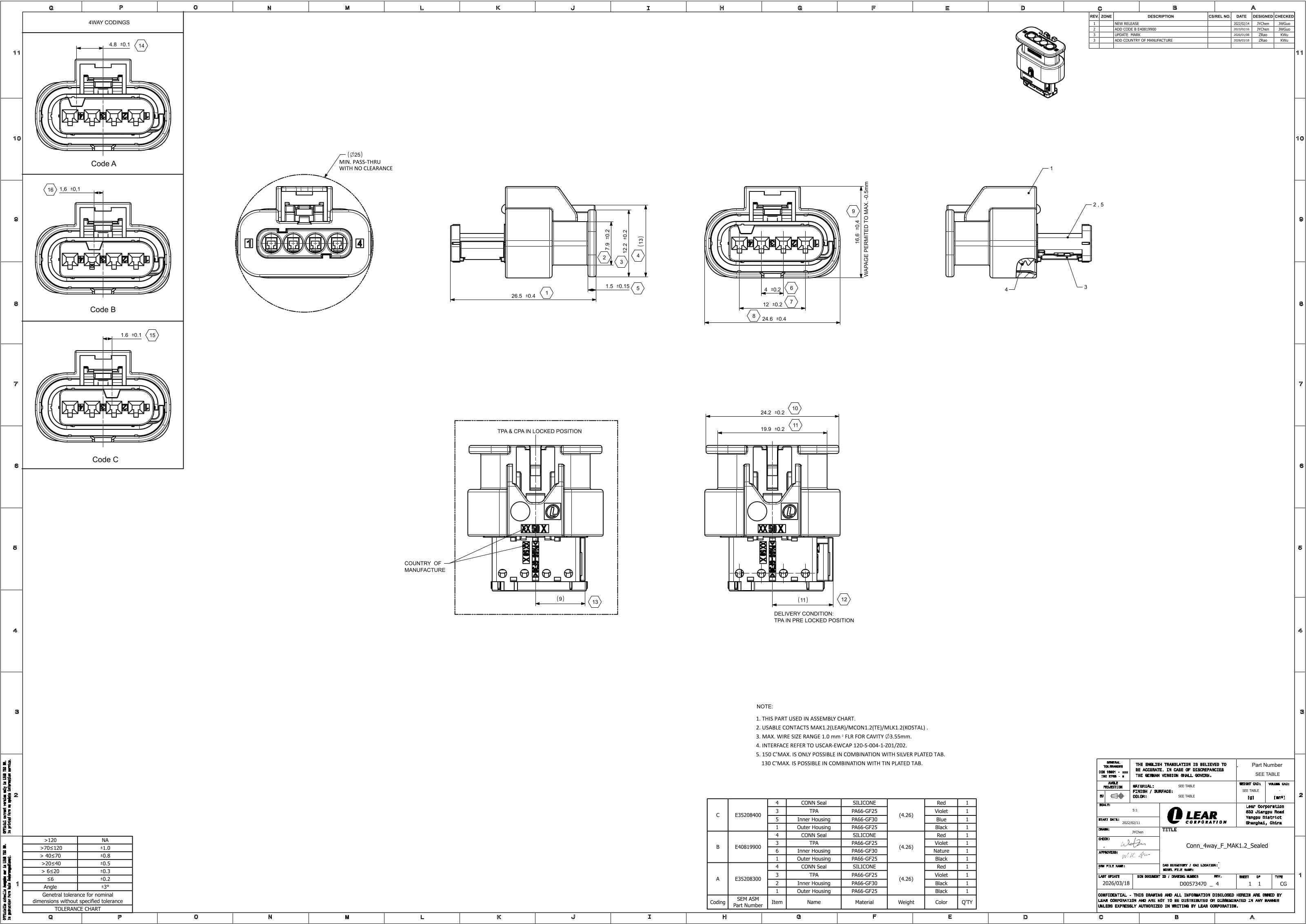

2D Drawing

2D Drawing E35208400

DOWNLOAD

E35208400 - 4way MAK 1.2 Receptacle Sealed Blue Connector, Code C

Part Number: E35208400

4way MAK 1.2 Receptacle Sealed Blue Connector, Code C

Product Specification

This connector belongs to the MAK product family within the CONNECTORS category, configured as a 4-cavity receptacle with a terminal size of 1.2 mm. The connector is fully sealed.

Primarily designed for sensor and on-engine applications in automotive vehicles.

Mechanical coding type C provides a poka-yoke mating feature to prevent incorrect connector pairing.

The main connector part is molded in PA66 GF with a dominant blue color. The operating temperature range spans -40 to 150 °C.

Online remarks: Code C.

Part Number: E35208400.
