TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30205400
- Product Family
- MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- CPA
- With CPA
- Color
- BLUE
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- C
- Remarks
- Code C
2D Drawing

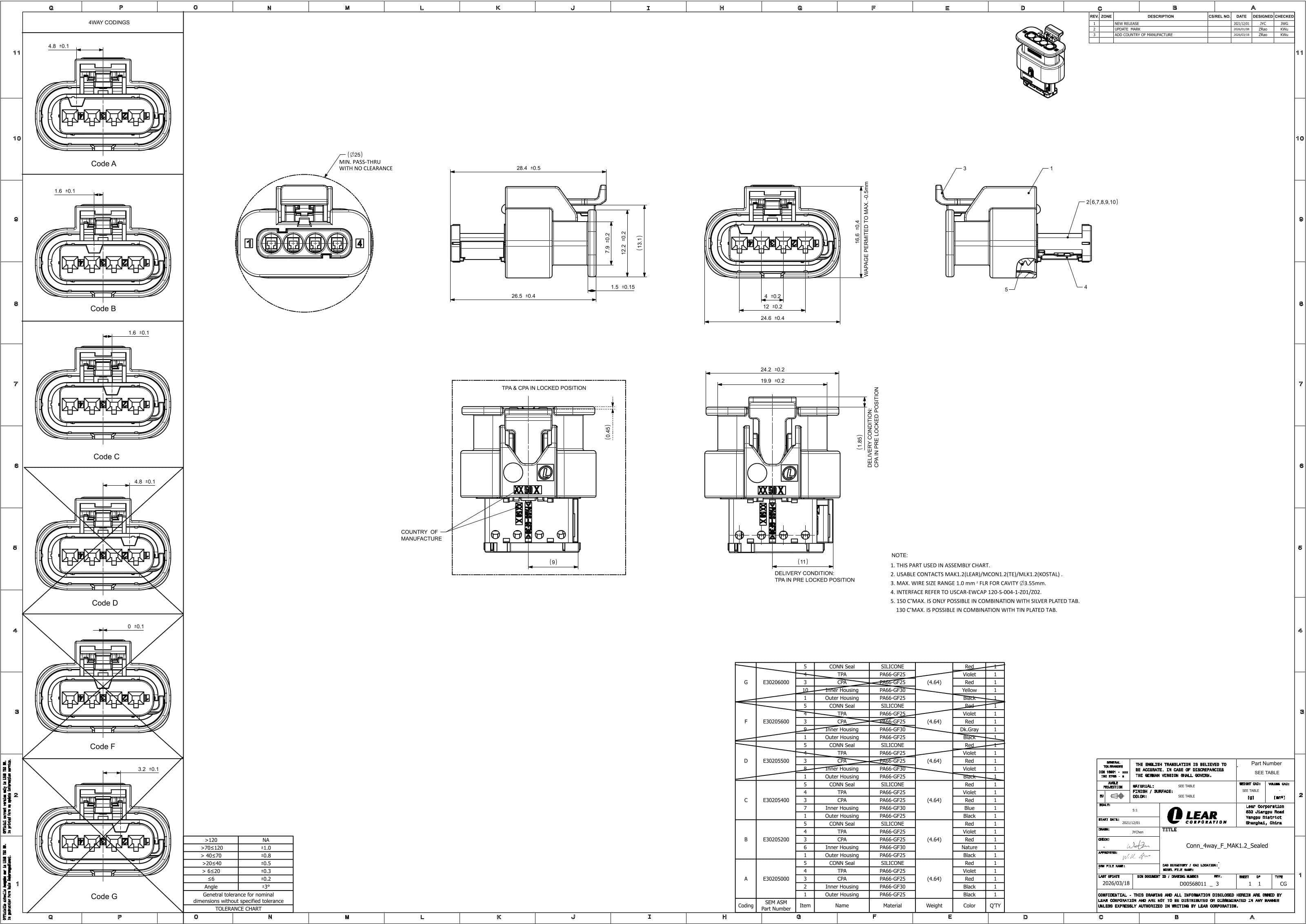

2D Drawing E30205400
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30205000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30205200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30205500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F
E30205600
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G
E30206000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35208300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E35208400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E40819900
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
E27316200
Product Category:
TERMINALSLegacy Part Number:
28888000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
E27316300
Product Category:
TERMINALSLegacy Part Number:
28887000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
E27316400
Product Category:
TERMINALSLegacy Part Number:
28886000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
E24789100
Product Category:
TERMINALSLegacy Part Number:
28888000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E24789000
Product Category:
TERMINALSLegacy Part Number:
28887000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E24788900
Product Category:
TERMINALSLegacy Part Number:
28886000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E30205400 - 4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
Part Number: E30205400
Product Specification
This 4-cavity sealed receptacle belongs to the MAK product family within the CONNECTORS category, accommodating 1.2 mm terminals.
Primarily designed for sensor and on-engine automotive vehicle applications.
The connector features mechanical coding C as a poka-yoke mating feature to prevent incorrect assembly, and is equipped with a Connector Position Assurance (CPA) mechanism to verify full mating engagement.
The main connector part is molded in PA66 GF with a dominant blue color. The operating temperature range spans -40 °C to 150 °C.
Additional note: Code C.
Part Number: E30205400, compatible with: 35126377, 09407623, 10010348, 10092981 805-122-553, 34900-4122, 34900-4112, 34900-4132.
This product requires other components for a fully functional assembly configuration:
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm² (E27316200)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm² (E27316300)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm² (E27316400)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm² (E24789100)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E24789000)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E24788900)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E35505600)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E35505700)
Lear Connection Systems is offering other variants of this product:
- 4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A (E30205000)
- 4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B (E30205200)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D (E30205500)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F (E30205600)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G (E30206000)
- 4way MAK 1.2 Receptacle Sealed Black Connector, Code A (E35208300)
- 4way MAK 1.2 Receptacle Sealed Blue Connector, Code C (E35208400)
- 4way MAK 1.2 Receptacle Sealed Natural Connector, Code B (E40819900)
