TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30205600
- Product Family
- MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- CPA
- With CPA
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine
- Mechanical coding
- F
- Remarks
- This variant may be offered upon request. Please contact us to discuss feasibility and expected lead time.

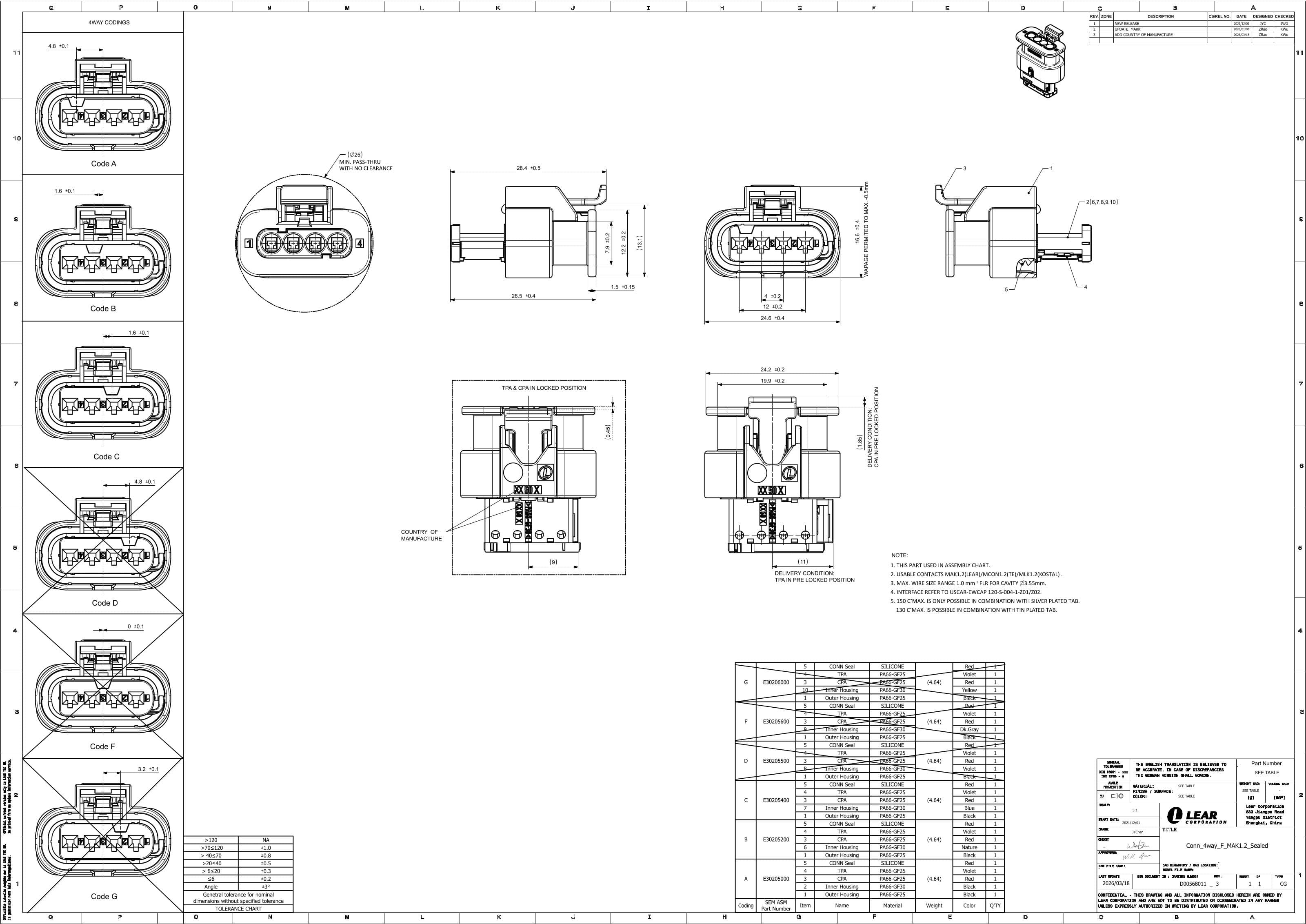

2D Drawing
2D Drawing E30205600
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30205000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30205400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30205200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30205500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G
E30206000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35208300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E35208400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E40819900
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
E27316200
Product Category:
TERMINALSLegacy Part Number:
28888000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
E27316300
Product Category:
TERMINALSLegacy Part Number:
28887000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
E27316400
Product Category:
TERMINALSLegacy Part Number:
28886000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
E24789100
Product Category:
TERMINALSLegacy Part Number:
28888000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E24789000
Product Category:
TERMINALSLegacy Part Number:
28887000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E24788900
Product Category:
TERMINALSLegacy Part Number:
28886000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E30205600 - 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F
Part Number: E30205600
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 4-cavity receptacle with a terminal size of 1.2 mm.
The connector is fully sealed and incorporates Connector Position Assurance (CPA) to ensure reliable mating retention. Mechanical coding is provided via Code F, a poka-yoke feature that prevents incorrect mating with non-corresponding plugs.
Primarily designed for sensor and on-engine applications in automotive vehicles.
The connector operates across a temperature range of -40 °C to 150 °C, making it suitable for the demanding thermal conditions typical of engine-bay environments.
Part Number: E30205600.
This product requires other components for a fully functional assembly configuration:
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm² (E27316200)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm² (E27316300)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm² (E27316400)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm² (E24789100)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E24789000)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E24788900)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E35505600)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E35505700)
Lear Connection Systems is offering other variants of this product:
- 4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A (E30205000)
- 4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C (E30205400)
- 4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B (E30205200)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D (E30205500)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G (E30206000)
- 4way MAK 1.2 Receptacle Sealed Black Connector, Code A (E35208300)
- 4way MAK 1.2 Receptacle Sealed Blue Connector, Code C (E35208400)
- 4way MAK 1.2 Receptacle Sealed Natural Connector, Code B (E40819900)
