TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E40819500
- Product Family
- MAK
Other properties
- No. of cavities
- 2
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- Color
- BLUE
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- C
- Remarks
- Code C

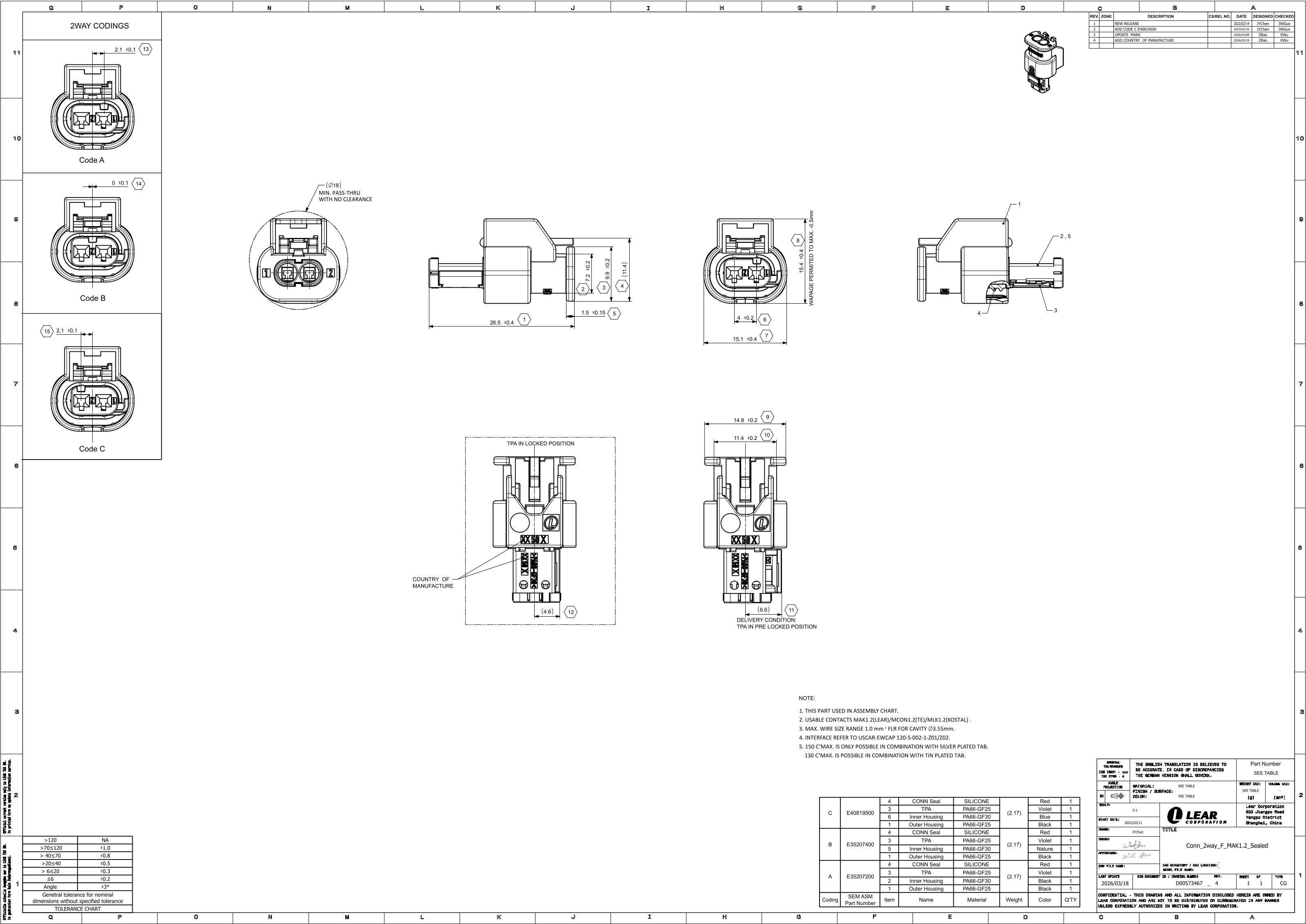

2D Drawing
2D Drawing E40819500
E40819500 - 2way MAK 1.2 Receptacle Sealed Blue Connector, Code C
Part Number: E40819500
.PNG&w=3840&q=75)
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 2-cavity receptacle with a terminal size of 1.2 mm. The connector is fully sealed.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mating integrity is ensured through a poka-yoke mechanical coding feature designated Code C, preventing mismatched connector pairing during assembly.
The main connector part is molded in PA66 GF with a dominant blue color. The operating temperature range spans -40 to 150 °C.
Additional remarks: Code C.
Part Number: E40819500.
