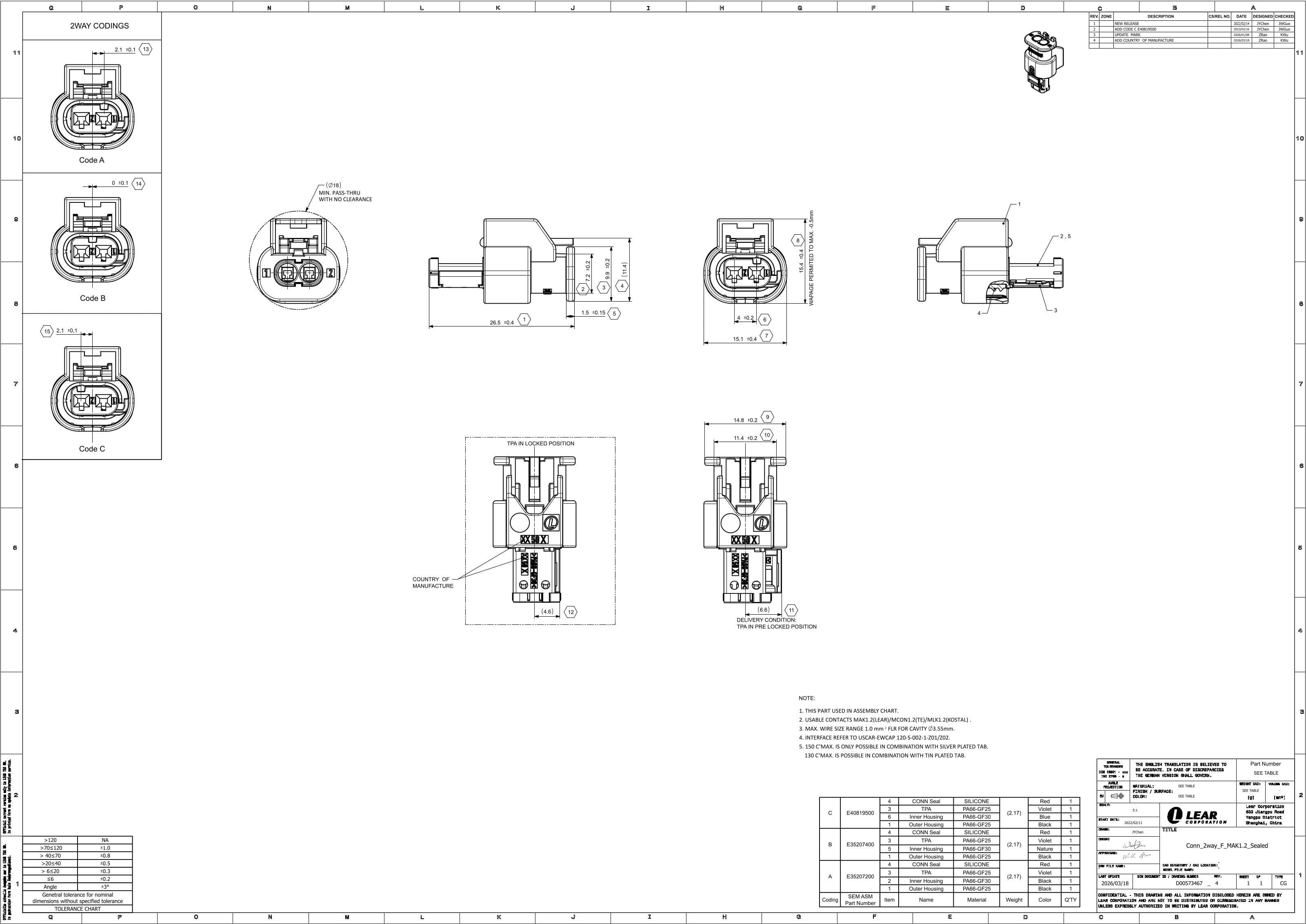

E35207400 - 2way MAK 1.2 Receptacle Sealed Natural Connector, Code B

This connector belongs to the MAK product family within the CONNECTORS category, configured as a 2-cavity receptacle with a terminal size of 1.2 mm.

The connector is sealed and primarily designed for sensor and on-engine applications in automotive vehicles.

Mechanical coding type B serves as a poka-yoke mating feature, ensuring correct connector orientation and preventing mis-mating during assembly.

The main connector part is molded in PA66 GF with a dominant natural color. The operating temperature range spans -40 to 150 °C.

Online remarks: Code B.

Part Number: E35207400.
