Identification
- Product Category
- CONNECTORS
- Part Number
- E30205000
- Product Family
- MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- CPA
- With CPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- A
- Remarks
- Code A
2D Drawing

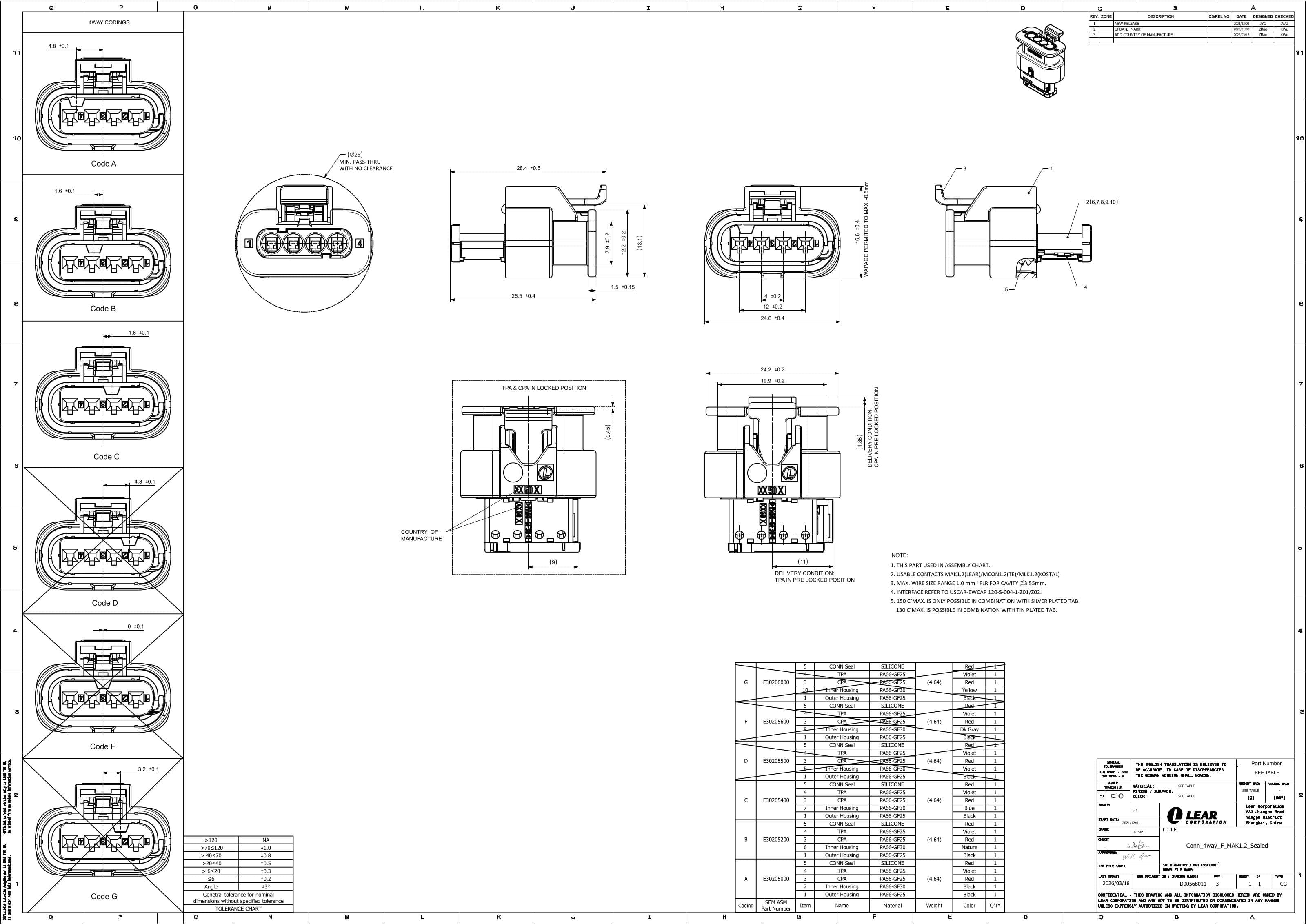

2D Drawing E30205000
.PNG&w=3840&q=75)
.PNG&w=3840&q=75)
.PNG&w=3840&q=75)
MAK 1.2 Series
Lear’s MAK / MAS 1.2 portfolio is complemented by connectors engineered to deliver excellent performance across a wide range of applications. Designed for seamless integration into existing architectures, these connectors work together with the MAK / MAS 1.2 terminals to create a high performance system that meets common industry requirements and supports efficient, reliable harness assembly.
MAK / MAS 1.2 Terminals
Lear’s MAK / MAS 1.2 terminal system features a two-piece design for signal and low-power applications. With options for various wire cross-sections and surface platings, this product series is suitable for a wide range of sealed and unsealed applications. Designed for high electrical performance and long-term reliability, the system ensures robust retention and mechanical strength while remaining compatible with common industry standards.
E30205000 - 4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
Part Number: E30205000
Product Specification
This sealed receptacle connector belongs to the MAK product family and is classified under the Connectors product category. It features 4 cavities and is designed around a 1.2 mm terminal size.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mechanical coding A serves as a poka-yoke mating feature, ensuring correct connector orientation and preventing mis-mating. The connector is equipped with a Connector Position Assurance (CPA) mechanism to confirm full mating engagement.
The main connector part is molded in PA66 GF with a dominant black color. The operating temperature range spans -40 to 150 °C.
Additional note: Code A.
Part Number: E30205000, compatible with: 35126375, 1-1718645-1, 1-1670918-1, 1-2294256-5, 09407621, 10010346, 10092979, 805-122-541, 34900-4120, 34900-4110, 34900-4130.
