TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30205200
- Product Family
- MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- CPA
- With CPA
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- B
- Remarks
- Code B
2D Drawing

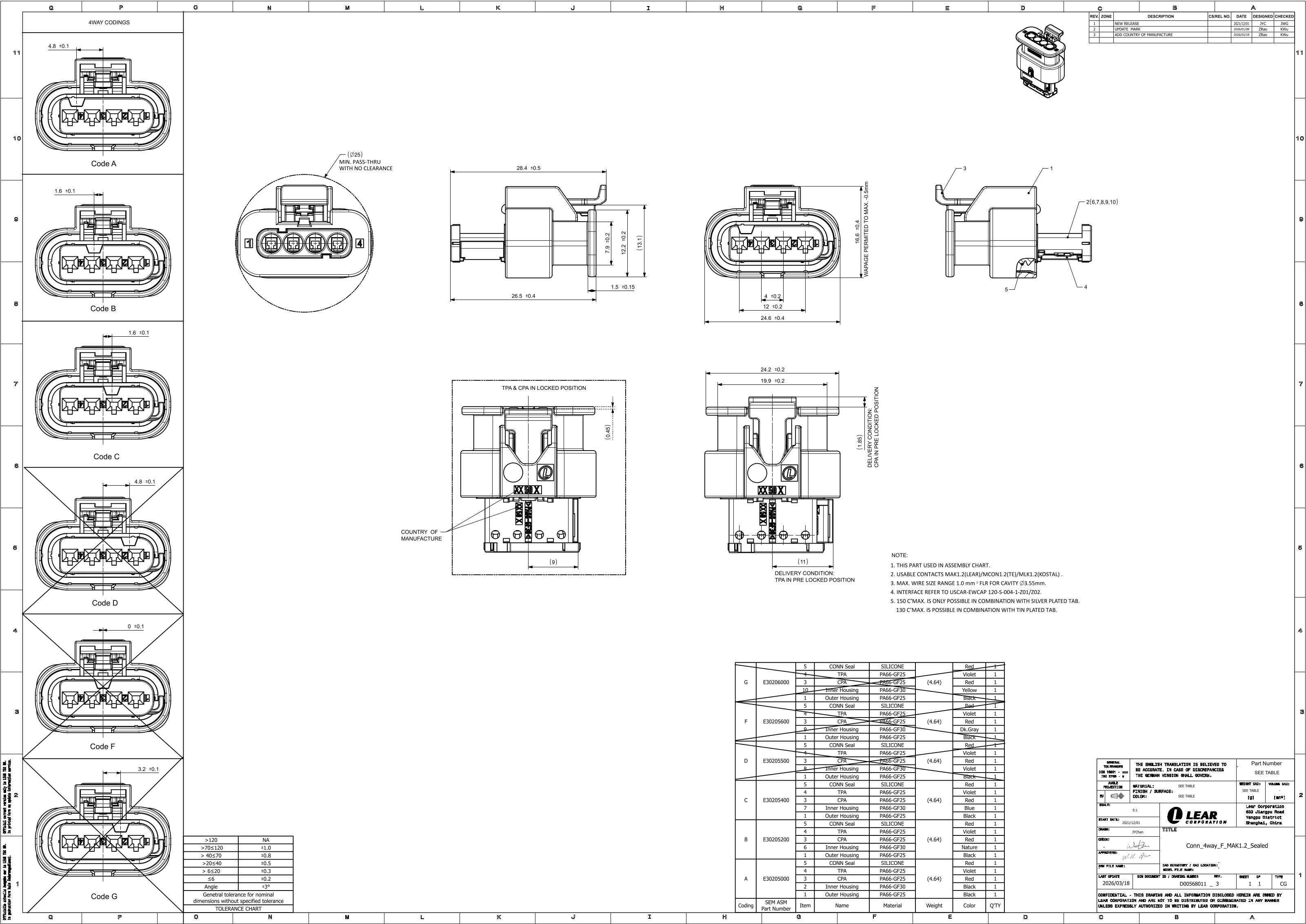

2D Drawing E30205200
MAK 1.2 Series
Lear’s MAK / MAS 1.2 portfolio is complemented by connectors engineered to deliver excellent performance across a wide range of applications. Designed for seamless integration into existing architectures, these connectors work together with the MAK / MAS 1.2 terminals to create a high performance system that meets common industry requirements and supports efficient, reliable harness assembly.
MAK / MAS 1.2 Terminals
Lear’s MAK / MAS 1.2 terminal system features a two-piece design for signal and low-power applications. With options for various wire cross-sections and surface platings, this product series is suitable for a wide range of sealed and unsealed applications. Designed for high electrical performance and long-term reliability, the system ensures robust retention and mechanical strength while remaining compatible with common industry standards.
E30205200 - 4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
Part Number: E30205200
Product Specification
This 4-cavity sealed receptacle belongs to the MAK product family within the CONNECTORS category, accommodating 1.2 mm terminals.
Primarily designed for sensor and on-engine applications in automotive vehicles.
The connector features mechanical coding B as a poka-yoke mating feature to prevent incorrect assembly, and is equipped with a Connector Position Assurance (CPA) device to confirm full mating engagement.
The main connector part is molded in PA66 GF with a dominant natural color. The operating temperature range spans -40 °C to 150 °C.
Note: Code B.
Part Number: E30205200.
Lear Connection Systems is offering other variants of this product:
- 4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A (E30205000)
- 4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C (E30205400)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D (E30205500)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F (E30205600)
- 4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G (E30206000)
