TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E35207900
- Product Family
- MAK
Other properties
- No. of cavities
- 3
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- B
- Remarks
- Code B

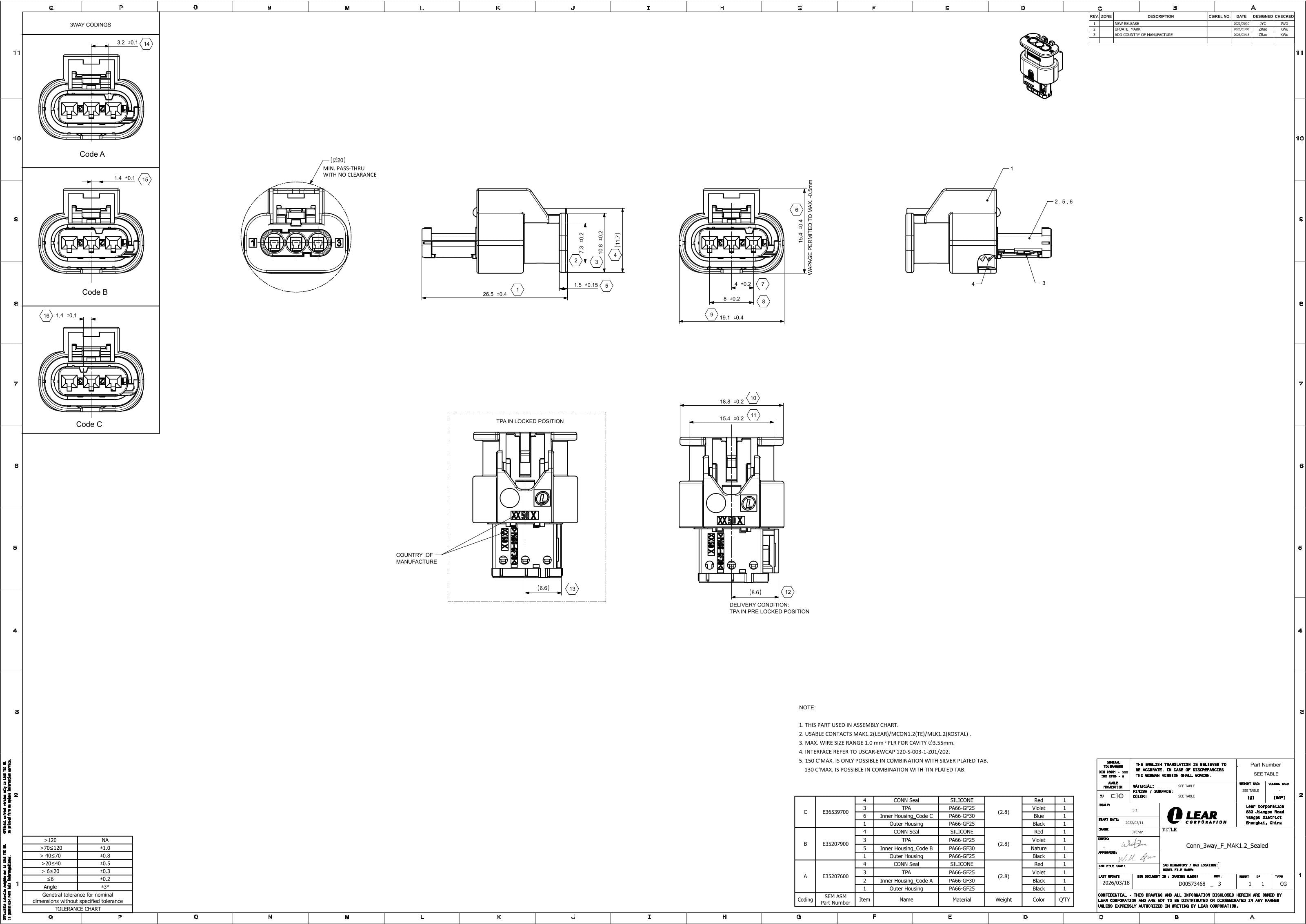

2D Drawing
2D Drawing E35207900
3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30203300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
3
3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30203700
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
3
3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30203500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
3
3way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30203800
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
3
.PNG&w=3840&q=75)
3way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35207600
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
3
.PNG&w=3840&q=75)
3way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E36539700
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
3
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
E27316200
Product Category:
TERMINALSLegacy Part Number:
28888000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
E27316300
Product Category:
TERMINALSLegacy Part Number:
28887000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
E27316400
Product Category:
TERMINALSLegacy Part Number:
28886000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
E24789100
Product Category:
TERMINALSLegacy Part Number:
28888000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E24789000
Product Category:
TERMINALSLegacy Part Number:
28887000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E24788900
Product Category:
TERMINALSLegacy Part Number:
28886000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E35207900 - 3way MAK 1.2 Receptacle Sealed Natural Connector, Code B
Part Number: E35207900
.PNG&w=3840&q=75)
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 3-cavity receptacle with a terminal size of 1.2 mm. The connector is sealed, providing protection against moisture and contaminants.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mechanical coding type B serves as a poka-yoke mating feature, ensuring correct connector orientation and preventing mis-mating during assembly.
The main connector part is molded in PA66 GF with a dominant natural color. The operating temperature range spans -40 to 150 °C.
Note: Code B.
Part Number: E35207900.
This product requires other components for a fully functional assembly configuration:
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm² (E27316200)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm² (E27316300)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm² (E27316400)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm² (E24789100)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E24789000)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E24788900)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E35505600)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E35505700)
Lear Connection Systems is offering other variants of this product:
- 3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A (E30203300)
- 3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C (E30203700)
- 3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B (E30203500)
- 3way MAK 1.2 Receptacle Sealed Connector with CPA, Code D (E30203800)
- 3way MAK 1.2 Receptacle Sealed Black Connector, Code A (E35207600)
- 3way MAK 1.2 Receptacle Sealed Blue Connector, Code C (E36539700)
