TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30203500
- Product Family
- MAK
Other properties
- No. of cavities
- 3
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- CPA
- With CPA
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- B
- Remarks
- Code B
2D Drawing

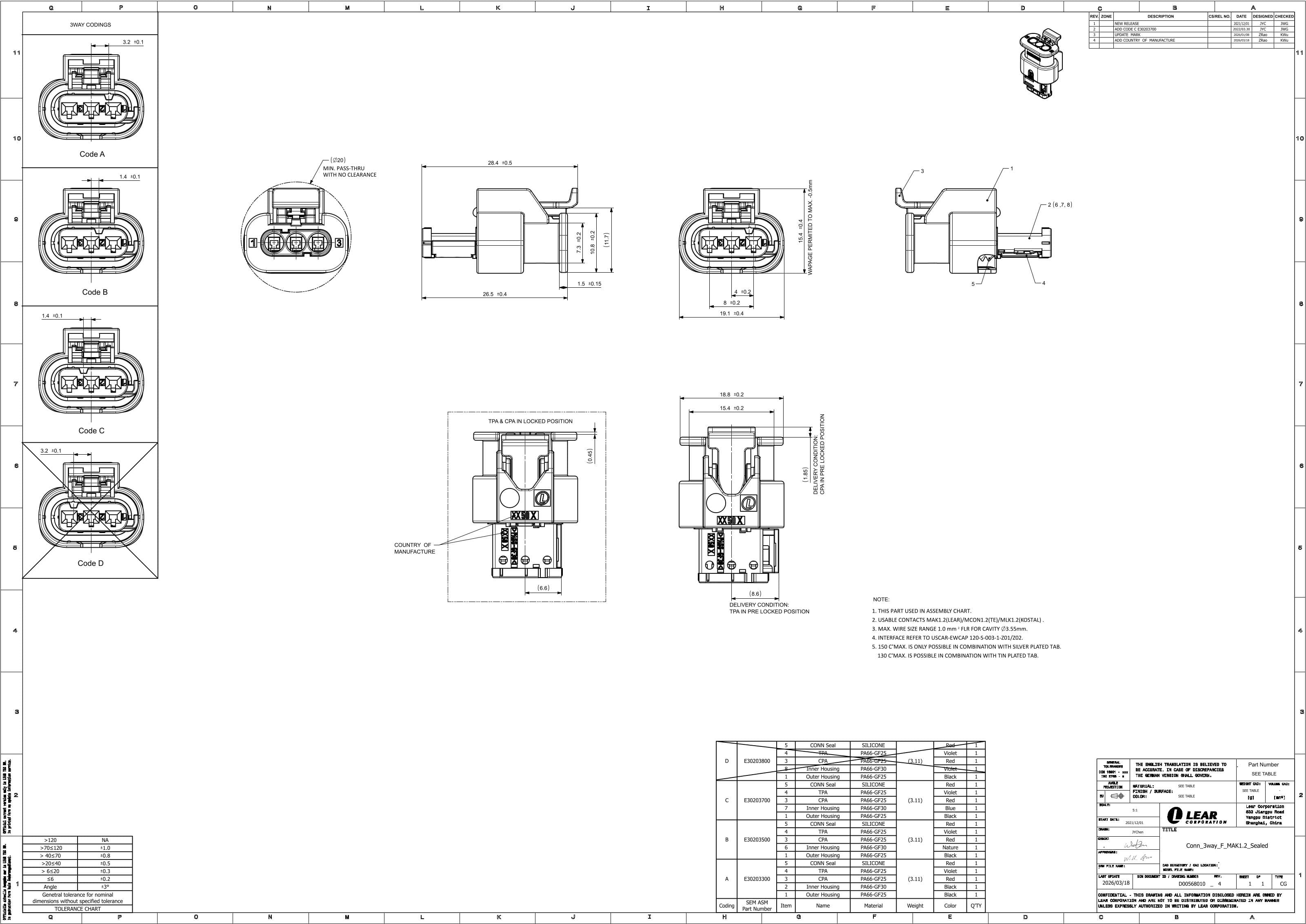

2D Drawing E30203500
MAK 1.2 Series
Lear’s MAK / MAS 1.2 portfolio is complemented by connectors engineered to deliver excellent performance across a wide range of applications. Designed for seamless integration into existing architectures, these connectors work together with the MAK / MAS 1.2 terminals to create a high performance system that meets common industry requirements and supports efficient, reliable harness assembly.
MAK / MAS 1.2 Terminals
Lear’s MAK / MAS 1.2 terminal system features a two-piece design for signal and low-power applications. With options for various wire cross-sections and surface platings, this product series is suitable for a wide range of sealed and unsealed applications. Designed for high electrical performance and long-term reliability, the system ensures robust retention and mechanical strength while remaining compatible with common industry standards.
E30203500 - 3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
Part Number: E30203500
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 3-cavity receptacle with a terminal size of 1.2 mm. The sealed construction ensures protection against moisture and contaminants in demanding environments.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mechanical coding type B serves as a poka-yoke mating feature, preventing incorrect connector pairing during assembly. The connector is equipped with a Connector Position Assurance (CPA) mechanism to confirm and maintain full mating engagement.
The main connector part is molded in PA66 GF with a dominant natural color. The operating temperature range spans -40 °C to 150 °C, making it suitable for underhood thermal conditions.
Additional note: Code B.
Part Number: E30203500, compatible with: 35126370, 35387390, 2-1718644-1, 2-2236343-1, 2-2236343-5, 09406622, 10010342, 10092977, 10099062, 805-121-582, 805-121-522, 872-858-542, 34900-3121, 34900-3102.
