TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E30203300
Product Family
MAK

Other properties

No. of cavities
3
Terminal Type
Receptacle
Terminal Size [mm]
1.2
Sealable
Sealed
CPA
With CPA
Color
BLACK
Min Temp (C)
-40
Max Temp (C)
150
Connector Application
Sensors, On Engine, 48V
Mechanical coding
A
Remarks
Code A

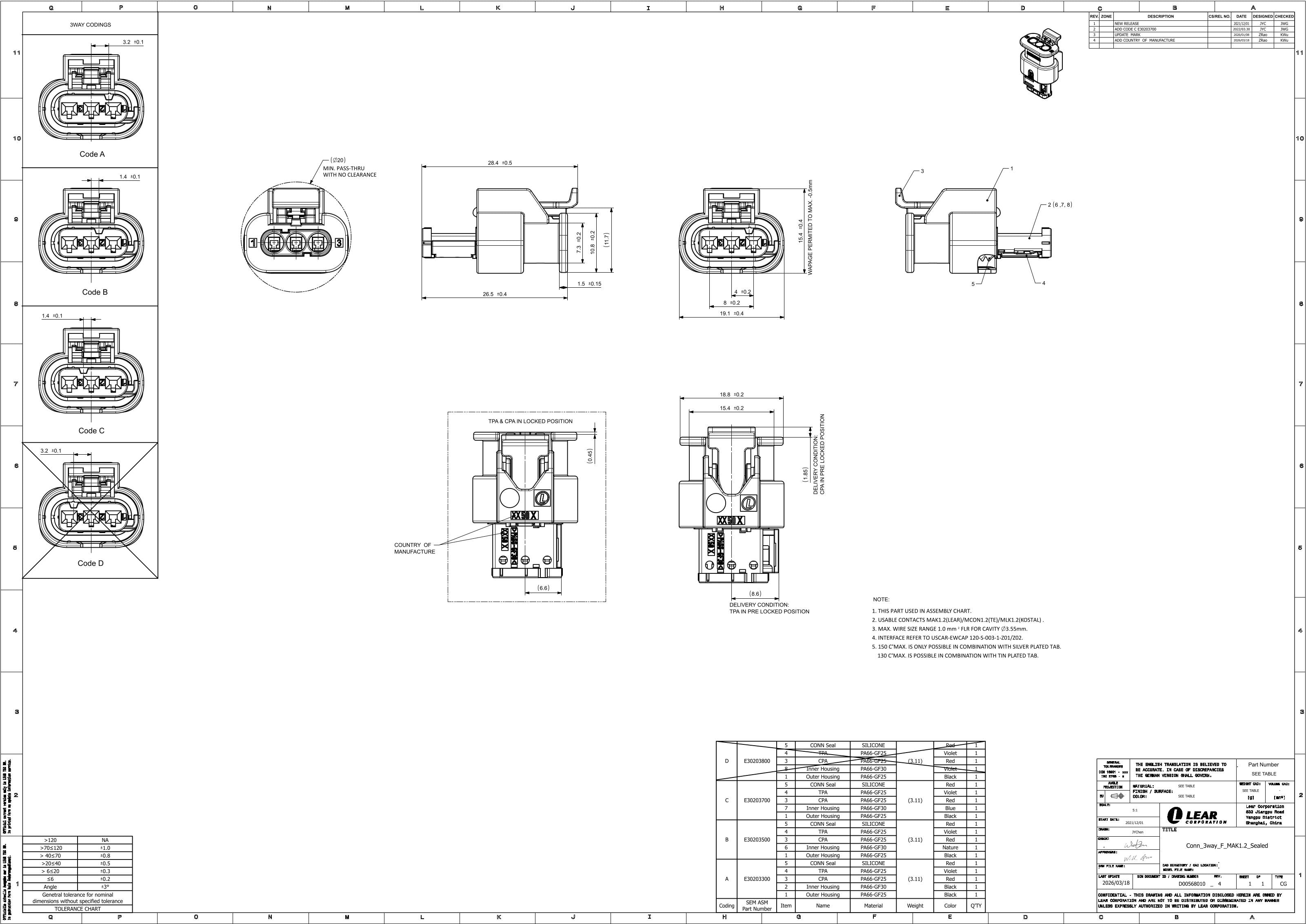

2D Drawing

2D Drawing E30203300

DOWNLOAD
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30194400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
3way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30203500
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
3way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30203700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
3way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
3way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30203800
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 Series

MAK 1.2 Series

Lear’s MAK / MAS 1.2 portfolio is complemented by connectors engineered to deliver excellent performance across a wide range of applications. Designed for seamless integration into existing architectures, these connectors work together with the MAK / MAS 1.2 terminals to create a high performance system that meets common industry requirements and supports efficient, reliable harness assembly.

MAK / MAS 1.2 Terminals

MAK / MAS 1.2 Terminals

Lear’s MAK / MAS 1.2 terminal system features a two-piece design for signal and low-power applications. With options for various wire cross-sections and surface platings, this product series is suitable for a wide range of sealed and unsealed applications. Designed for high electrical performance and long-term reliability, the system ensures robust retention and mechanical strength while remaining compatible with common industry standards.

E30203300 - 3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A

Part Number: E30203300

3way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A

Product Specification

This 3-cavity sealed receptacle belongs to the MAK product family within the CONNECTORS category, accommodating 1.2 mm terminals.

Primarily designed for sensor and on-engine applications in automotive vehicles.

The connector features mechanical coding A as a poka-yoke mating feature to prevent incorrect assembly, and is equipped with a Connector Position Assurance (CPA) mechanism to verify full mating engagement.

The main connector part is molded in PA66 GF with a dominant black color. The operating temperature range spans -40 to 150 °C.

Additional remark: Code A.

Part Number: E30203300, compatible with: 35126369, 35387389, 1-1718644-1, 1-2236343-1, 1-2236343-5, 09406621, 10010341, 10092976, 10095324, 805-121-581, New 805-121-521, 872-858-541, 34900-3120, 34900-3101, 34900-3124.

Lear Connection Systems is offering other variants of this product:
