TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E40819900
- Product Family
- MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Sealed
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 150
- Connector Application
- Sensors, On Engine, 48V
- Mechanical coding
- B
- Remarks
- Code B

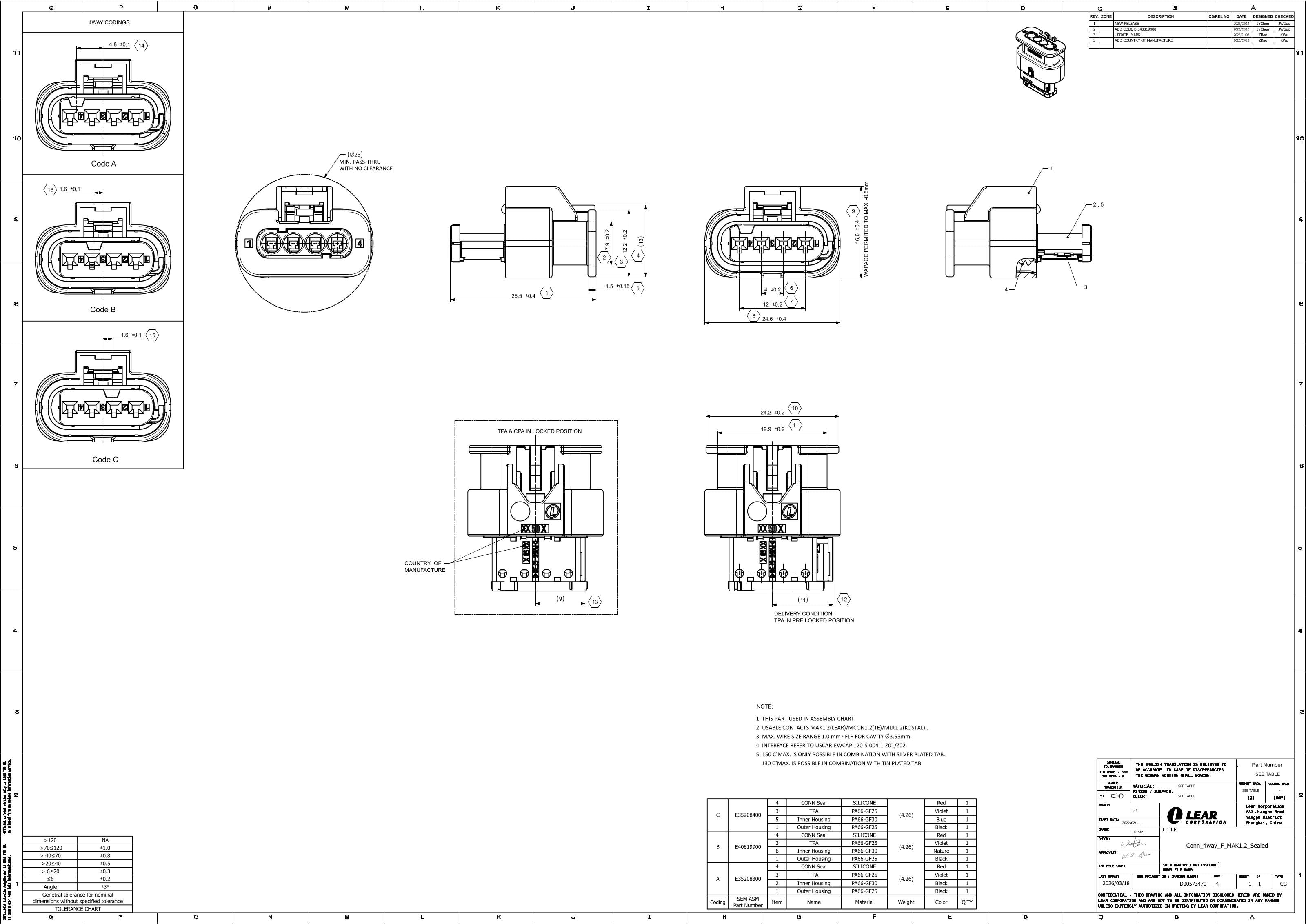

2D Drawing
2D Drawing E40819900
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30205000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30205400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30205200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
NATURAL
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30205500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F
E30205600
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G
E30206000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
–
Connector Application
Sensors, On Engine
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35208300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLACK
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E35208400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLUE
Connector Application
Sensors, On Engine, 48V
No. of cavities
4
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
E27316200
Product Category:
TERMINALSLegacy Part Number:
28888000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
E27316300
Product Category:
TERMINALSLegacy Part Number:
28887000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
E27316400
Product Category:
TERMINALSLegacy Part Number:
28886000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
E24789100
Product Category:
TERMINALSLegacy Part Number:
28888000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E24789000
Product Category:
TERMINALSLegacy Part Number:
28887000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E24788900
Product Category:
TERMINALSLegacy Part Number:
28886000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E40819900 - 4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
Part Number: E40819900
.PNG&w=3840&q=75)
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 4-cavity receptacle with a terminal size of 1.2 mm. The connector is fully sealed.
Primarily designed for sensor and on-engine applications in automotive vehicles.
Mechanical coding Code B is incorporated as a poka-yoke mating feature to prevent incorrect connector mating.
The main connector part is molded in PA66 GF with a dominant natural color. The operating temperature range spans -40 to 150 °C.
Online remarks: Code B.
Part Number: E40819900.
This product requires other components for a fully functional assembly configuration:
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm² (E27316200)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm² (E27316300)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm² (E27316400)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm² (E24789100)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E24789000)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E24788900)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm² (E35505600)
- MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm² (E35505700)
