TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E30194200
Product Family
MAK

Other properties

No. of cavities
2
Terminal Type
Receptacle
Terminal Size [mm]
1.2
Sealable
Sealed
CPA
With CPA
Color
BLACK
Min Temp (C)
-40
Max Temp (C)
150
Connector Application
Sensors, On Engine, 48V
Mechanical coding
A
Remarks
Code A

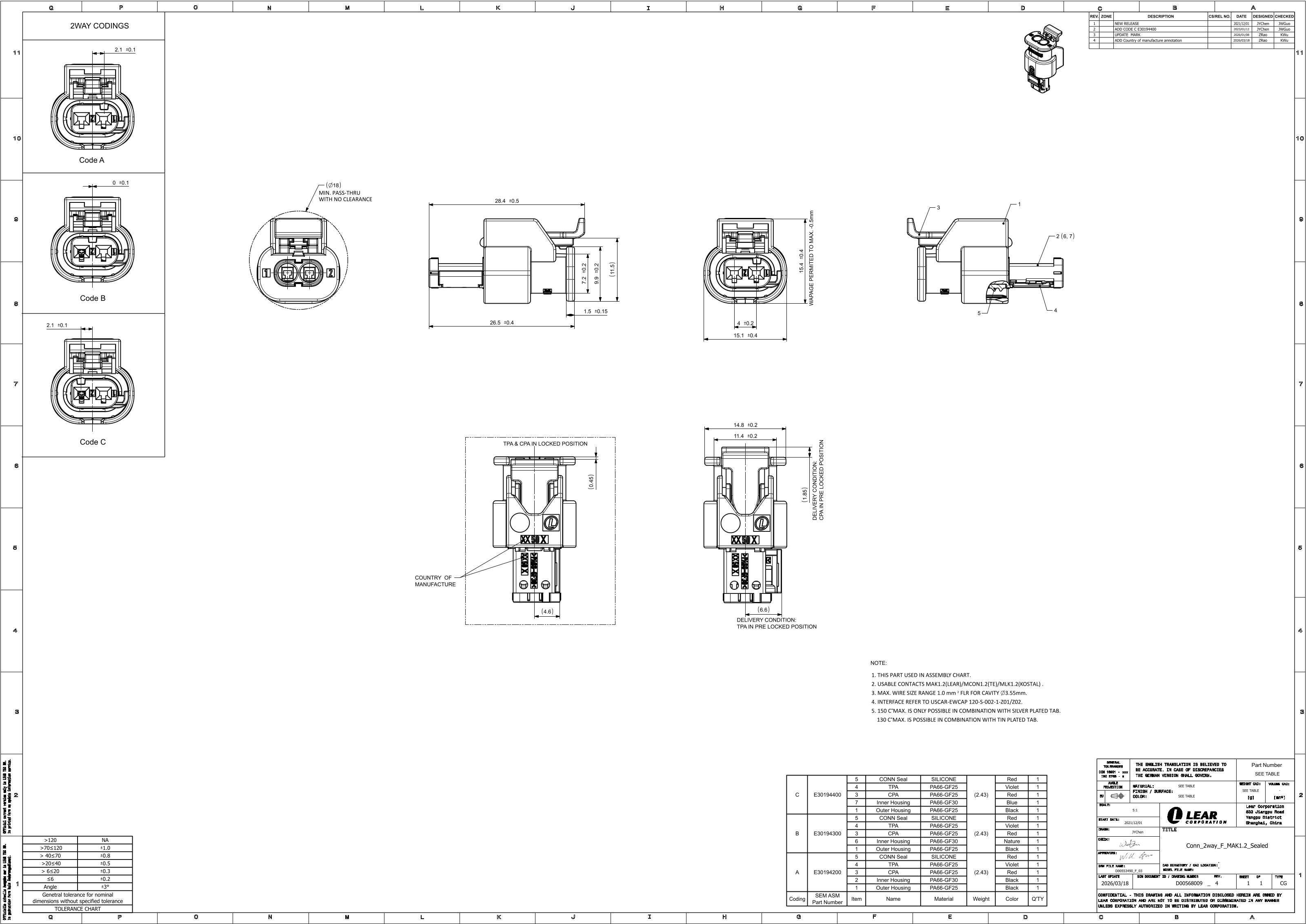

2D Drawing

2D Drawing E30194200

DOWNLOAD
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
2way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30194400
Product Category:
CONNECTORS
Legacy Part Number:
–
CPA
With CPA
Color
BLUE
No. of cavities
2
Product Family
MAK
2way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
2way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30194300
Product Category:
CONNECTORS
Legacy Part Number:
–
CPA
With CPA
Color
NATURAL
No. of cavities
2
Product Family
MAK
2way MAK 1.2 Receptacle Sealed Black Connector, Code A
2way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35207200
Product Category:
CONNECTORS
Legacy Part Number:
–
CPA
–
Color
BLACK
No. of cavities
2
Product Family
MAK
2way MAK 1.2 Receptacle Sealed Blue Connector, Code C
2way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E40819500
Product Category:
CONNECTORS
Legacy Part Number:
–
CPA
–
Color
BLUE
No. of cavities
2
Product Family
MAK
2way MAK 1.2 Receptacle Sealed Natural Connector, Code B
2way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E35207400
Product Category:
CONNECTORS
Legacy Part Number:
–
CPA
–
Color
NATURAL
No. of cavities
2
Product Family
MAK
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.13-0.22mm²
E27316200
Product Category:
TERMINALS
Legacy Part Number:
28888000002
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.35mm²
E27316300
Product Category:
TERMINALS
Legacy Part Number:
28887000002
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Ag, 0.5-0.75mm²
E27316400
Product Category:
TERMINALS
Legacy Part Number:
28886000002
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.13-0.22mm²
E24789100
Product Category:
TERMINALS
Legacy Part Number:
28888000001
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E24789000
Product Category:
TERMINALS
Legacy Part Number:
28887000001
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E24788900
Product Category:
TERMINALS
Legacy Part Number:
28886000001
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.35mm²
E35505600
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
MAK 1.2 Receptacle Sealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505700
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 Series

MAK 1.2 Series

Lear’s MAK / MAS 1.2 portfolio is complemented by connectors engineered to deliver excellent performance across a wide range of applications. Designed for seamless integration into existing architectures, these connectors work together with the MAK / MAS 1.2 terminals to create a high performance system that meets common industry requirements and supports efficient, reliable harness assembly.

E30194200 - 2way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A

Part Number: E30194200

2way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A

Product Specification

This 2-cavity sealed receptacle belongs to the MAK product family within the CONNECTORS category, accommodating a terminal size of 1.2 mm.

Primarily designed for sensor and on-engine applications in automotive vehicles.

The connector features mechanical coding A as a poka-yoke mating feature to prevent incorrect assembly, and is equipped with a Connector Position Assurance (CPA) mechanism to verify full mating engagement.

The main connector part is molded in PA66 GF with a dominant black color. The operating temperature range spans -40 to 150 °C.

Additional remark: Code A.

Part Number: E30194200, compatible with: 35126363, 35387382, 1-1718643-1, 1-1670916-1, 1-2236896-1, 1-2236896-5, 09405621, 10010337, 10092983 10108787, 805-120-581, 805-120-521, 872-857-561, 34900-2120, 34900-2101, 34900-2020, 34900-2001.

This product requires other components for a fully functional assembly configuration:

Lear Connection Systems is offering other variants of this product:
