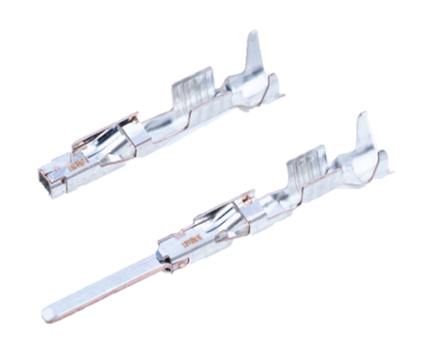

MAK / MAS 1.2 Terminals
High-Performance MAK / MAS 1.2 terminals. Two-piece design for signal and low-power applications.
Published
Contents
Proven design with options for various wire cross-sections and surface platings. Designed for high electrical performance and long-term reliability, the system ensures robust retention and mechanical strength while remaining compatible with common industry standards.
- Sealed and unsealed applications
- Patented modular terminal system
- Pressed-in and additionally laser welded contract spring module
- No edges or contours
- Ergonomic connector position assurance, which can distract the insertion of the male tab
- Ability to change plating on contacts only
- Industry standard cavity compliant
- Wire Cross-Section: 0.13 - 1.5mm²
- Temperature Range: -40°C ~ +130°C (Sn) / -40°C ~ +150°C (Au plated) / -40°C ~ +170°C (Ag)
- Current Rating Capacity: Up to 15A @ 80°C (Sn) / Up to 21A @ 80°C (Ag)
- Mating Force: Max. 5N
- Unmating Force: Max. 2.5N
- Contact Resistance: ≤ 1 mΩ
- Vibration Level: SG1-SG2 (tin plated) / SG3-SG4 (silver & gold plated)
Related Parts
MAK 1.2 PLUS HOUSING 3WAY
E30203300
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 2WAY
E30194300
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 2WAY
E30194400
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
2
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 3WAY
E30203500
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 3WAY
E30203700
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 3WAY
E30203800
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
3
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 4WAY
E30205000
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 PLUS HOUSING 4WAY
E30205200
Product Category:
CONNECTORSLegacy Part Number:
No. of cavities
4
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Sealed
MAK 1.2 TERMINAL
E27302600
Product Category:
TERMINALSLegacy Part Number:
28892000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 TERMINAL
E24789500
Product Category:
TERMINALSLegacy Part Number:
28892000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAK 1.2 TERMINAL
E27302700
Product Category:
TERMINALSLegacy Part Number:
28891000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 TERMINAL
E24789400
Product Category:
TERMINALSLegacy Part Number:
28891000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 TERMINAL
E27302800
Product Category:
TERMINALSLegacy Part Number:
28890000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 1.2 TERMINAL
E24789300
Product Category:
TERMINALSLegacy Part Number:
28890000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 TERMINAL
E27341000
Product Category:
TERMINALSLegacy Part Number:
29128000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 TERMINAL
E24801600
Product Category:
TERMINALSLegacy Part Number:
29128000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 TERMINAL
E27340800
Product Category:
TERMINALSLegacy Part Number:
29127000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 TERMINAL
E24801500
Product Category:
TERMINALSLegacy Part Number:
29127000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 TERMINAL
E27340600
Product Category:
TERMINALSLegacy Part Number:
29126000002Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 TERMINAL
E24801400
Product Category:
TERMINALSLegacy Part Number:
29126000001Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
