Lear Pin Header

Pin header configurations for standard and high-performance connection designs.

Contents
Lear Pin Header

About the pin headers

Lear’s pin header portfolio offers a range of solutions for different application requirements. Multiple press-fit zone sizes, configurations and variants support standard and high-performance designs.

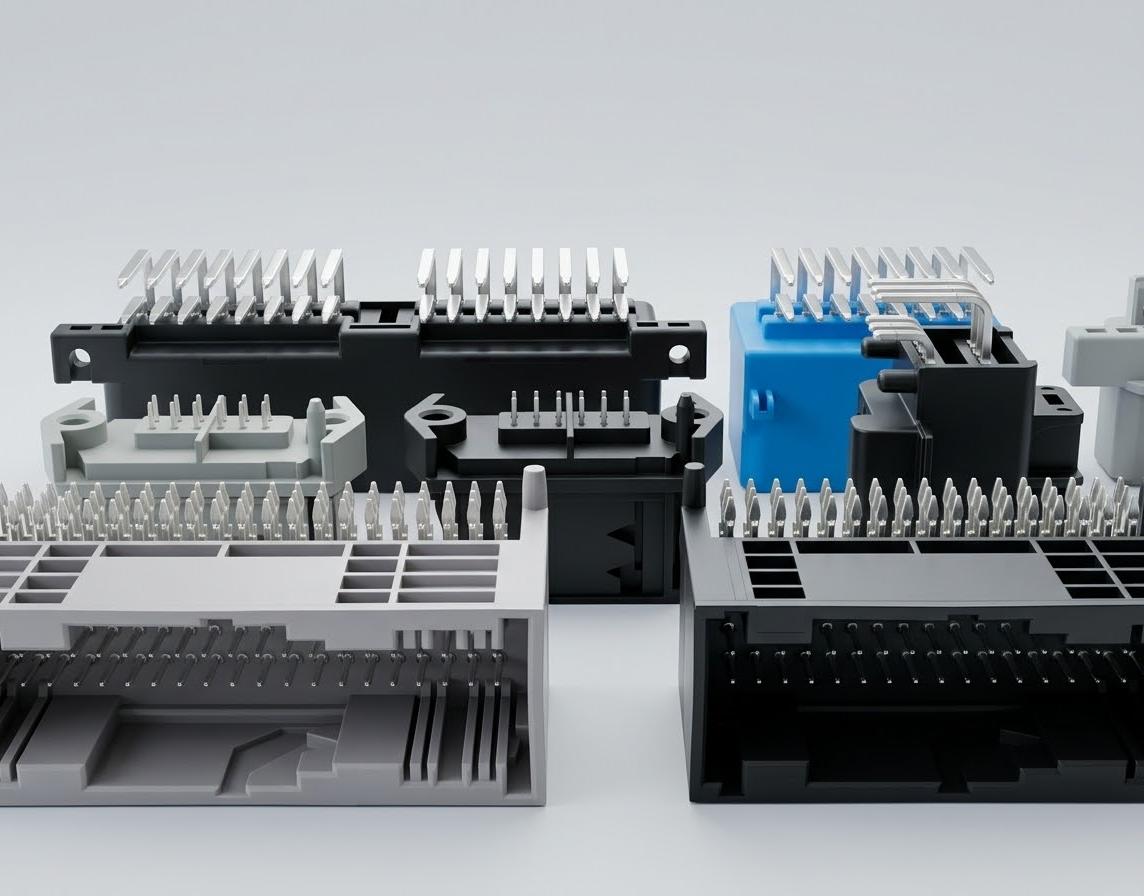

Close view of several Lear pin header connector configurations

Design and connection options

Our pin header solutions are designed for reliable board-to-board and board-to-wire connections in automotive, industrial, and electronic applications. The portfolio includes through-hole, surface mount and press-fit technologies, with multiple pin configurations, high-density connector options, and customized high-current busbar solutions. Flexible manufacturing processes, including over-molding and stitching technologies, enable optimized designs for a wide range of customer requirements.

Key features:

  • Pin insertion by over-molding or stitching technology
  • Straight 180° and 90° angled versions available
  • Board-to-board and board-to-wire connectivity
  • Plated Through-Hole (PTH), Surface Mount (SMT) and Press-Fit (PF) pin options
  • Press-fit pin thicknesses: 0.63 mm, 0.80 mm and 1.20 mm
  • 12-way connectors for compact, space-saving designs
  • 18-way and 23-way connector options for enhanced flexibility
  • 54-way high-density connectors for complex applications
  • Customized high-current busbar block solutions available
  • UL94 V-0 flammability-rated materials available
