Inter-cell Connection Board (ICB)

Integrated battery connections

Lear provides fully integrated Inter-cell Connection Board (ICB) solutions covering critical battery connection functions. The boards combine advanced carrier technologies, power distribution systems and sensing capabilities in automotive-grade solutions designed for high-volume production.

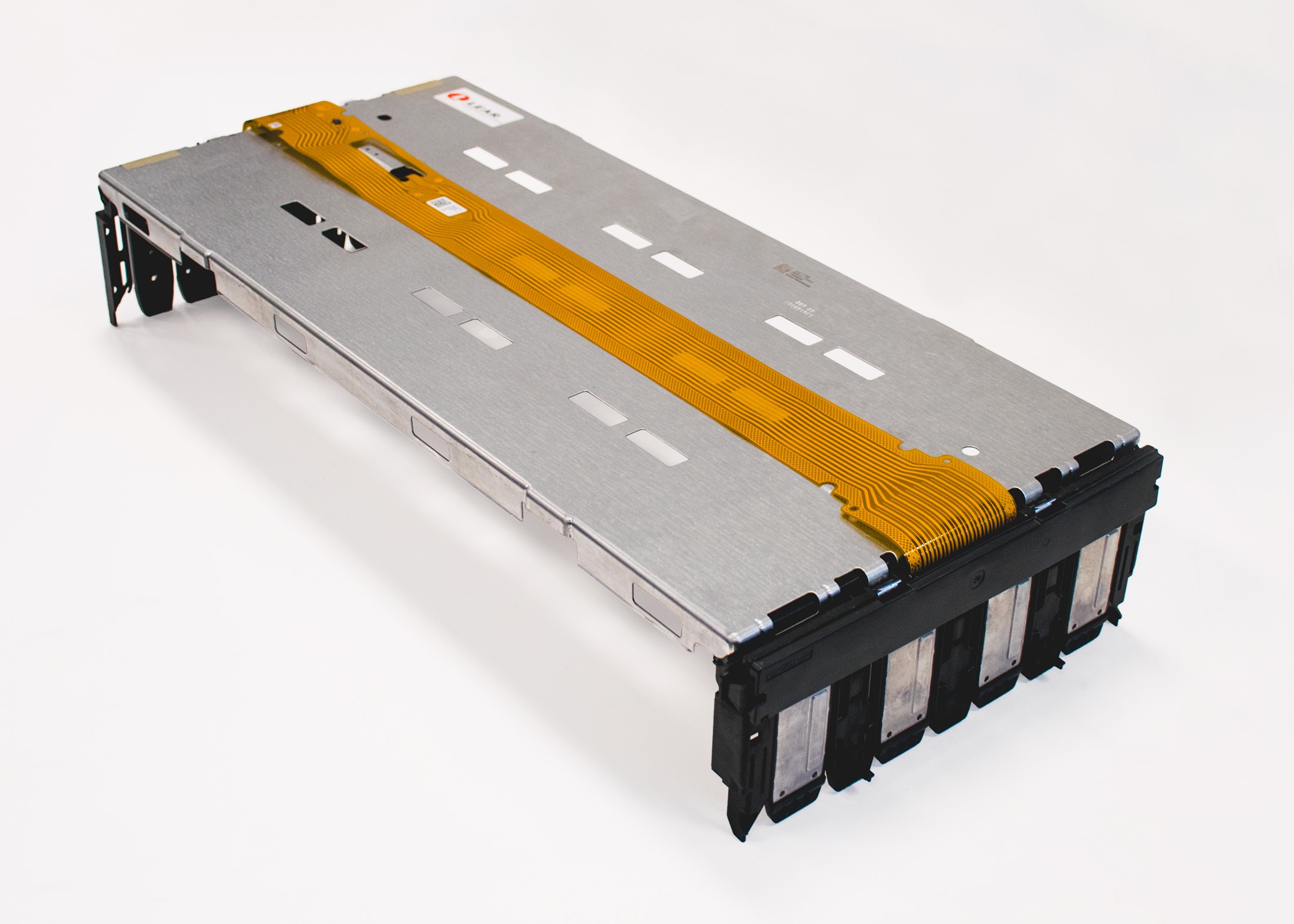

Inter-cell connection board with a gold flexible circuit across its metal carrier

Scalable cell connection technologies

The Inter-cell Connection Board (ICB), also commonly referred to as a Cell Contact System (CCS), provides an integrated electrical and mechanical interface for connecting and monitoring cells within an automotive battery module. The solution can be adapted to prismatic, pouch and cylindrical cell architectures, with copper or aluminum busbars and integrated high-voltage terminals supporting different battery power distribution requirements.

Multiple carrier technologies, including injection-molded plastic, blister structures and laminated foils, enable the ICB or CCS design to be optimized for specific module layouts and manufacturing processes. Sensing and monitoring functions can be integrated using Lear’s in-house FDC technology, Flexible Printed Circuits (FPC) or Flexible Flat Cables (FFC), supporting scalable battery module designs and efficient industrialization.



Key technologies and benefits:

  • Inter-cell Connection Board, also known as a Cell Contact System
  • Support for prismatic, pouch and cylindrical battery cells
  • Copper and aluminum busbar options
  • Integrated high-voltage terminals
  • Injection-molded plastic carrier technology
  • Blister-based carrier structures
  • Laminated foil solutions
  • Integrated cell sensing and monitoring
  • Lear in-house FDC technology
  • Flexible Printed Circuit (FPC) options
  • Flexible Flat Cable (FFC) options
  • Engineering support from concept development to start of production
  • Scalable design for high-volume battery manufacturing
  • Automotive-grade manufacturing and quality processes
  • Global production capabilities

Customer benefits

Lear provides fully integrated Intercell Contacting Board solutions covering all key sub-systems:

  • Carrier Technologies: Injection molding, blister and lamination foil concepts
  • Power Distribution: Copper and aluminum busbars for prismatic and cylindrical cell architectures, including HV terminals
  • Sensing & Monitoring: Voltage and temperature sensing solutions based on FPC and Lear in-house FDC technology

Leveraging global automotive manufacturing expertise, Lear transforms innovative battery connection concepts into reliable, high-volume production solutions.
