Battery Fuse Box

An integrated battery fuse box that protects vehicle circuits while allowing fuse ratings and configurations to change.

Contents
Battery Fuse Box

About the fuse box

Lear’s Battery Fuse Box mounts at the battery and provides first-level protection for wires and vehicle subsystems. Its integrated multi-fuse design supports fuse ratings up to 400 A for different loads.

Lear reports key OEMs recognition for its fuse technology.

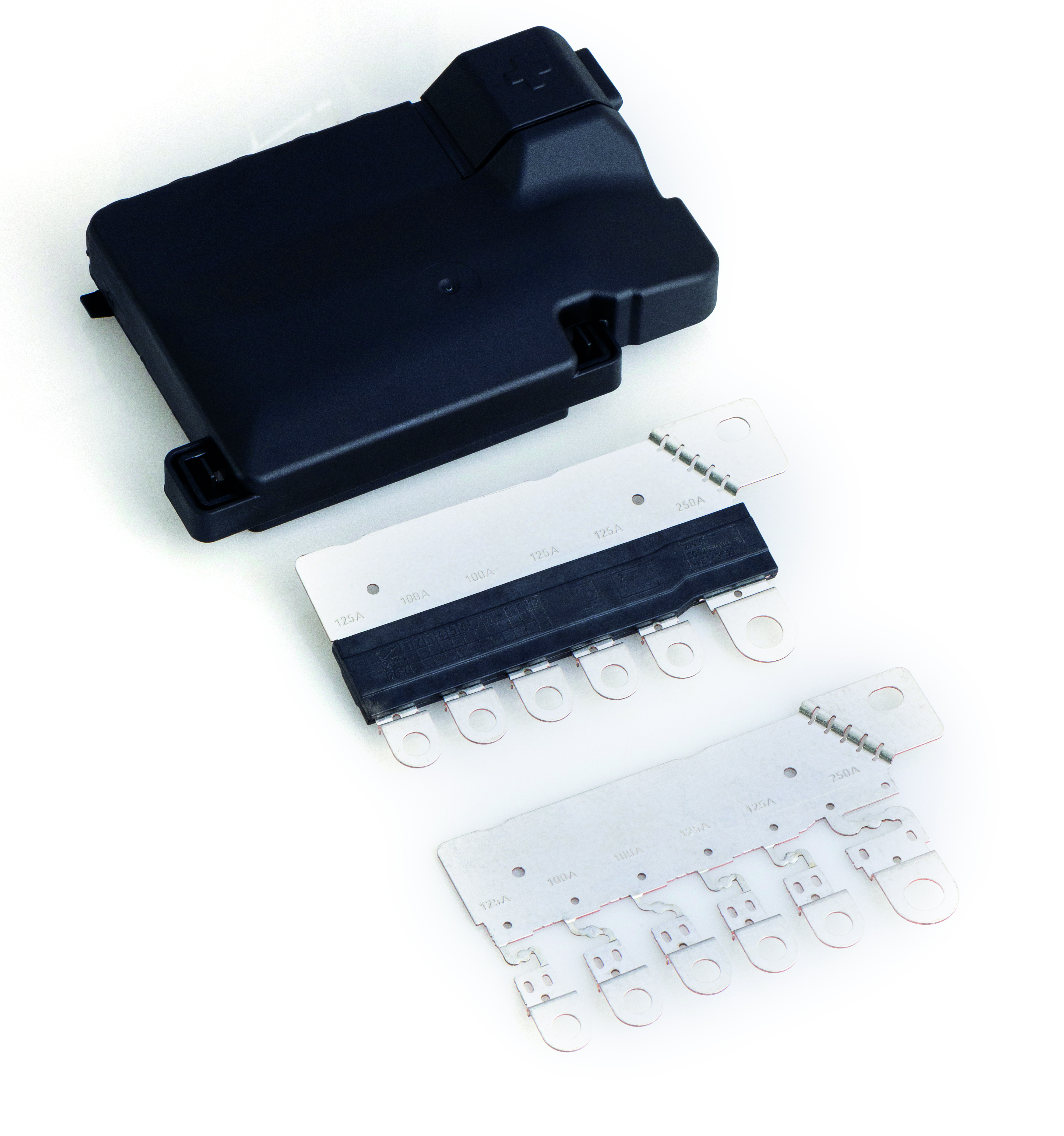

Multifuse Box VW 191.jpg

Design and assembly

Flexible multi-fuse power distribution

Lear’s Battery Fuse Box supports multiple fuse technologies, including VariaFuse, MEGA, Micro, M-Case and integrated multi-fuse solutions, allowing the configuration to be adapted to different vehicle loads and customer requirements. Overmolded busbars, bolts, bushings, inserts and terminals are integrated into the assembly to reduce the number of separate components and eliminate additional connections between the busbar and fuses.

A battery-mounted plastic bracket with noise-suppressing features provides quick, reliable and quiet fixation without additional screws. The solution supports efficient assembly and high-volume vehicle production while reducing material usage, package weight and system complexity.

Key features and benefits:

  • Support for VariaFuse, MEGA, Micro, M-Case and multi-fuse technologies
  • Fuse configuration adaptable to different vehicle loads
  • Integrated overmolded busbars and electrical components
  • Two-fork and three-fork terminal options
  • Reduced number of separate parts and electrical interfaces
  • Elimination of additional connections between busbars and fuses
  • Lower material usage, weight and assembly complexity
  • Improved electrical performance compared with individual fuse solutions
  • Battery-mounted plastic bracket with noise-suppressing design
  • Quick and reliable screwless fixation
  • Suitable for high-volume vehicle platforms
