About the connector

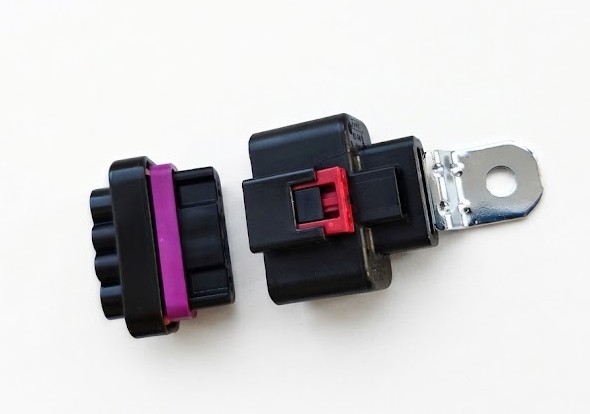

Lear’s six-way hybrid ground connector joins several electrical lines at one grounding point. It uses standard MAK terminals with 2.8 mm and 6.3 mm tab widths. The two-part male and female housing includes connector position assurance, terminal position assurance, a connector seal and individual wire seals.
Lear’s hybrid ground connector is designed for reliable operation in wet areas and demanding automotive environments, with an application temperature range from -40°C to +125°C. The compact connector mounts directly to a grounding stud and can incorporate an anti-rotation feature with an octagonal or customer-specific mounting hole. Support for wire cross-sections from 0.5 to 6 mm² and a variable number of lead-in wires enables adaptation to different vehicle grounding architectures.
Key features and benefits:
- Operating temperature range from -40°C to +125°C
- IP6K8 sealing performance, including a 20-bar jet-spray test
- S2.5 sealing level according to USCAR-2
- Suitable for automotive wet-area applications
- Direct mounting to a vehicle grounding stud
- Anti-rotation feature with an octagonal or customized mounting hole
- Wire cross-section range from 0.5 to 6 mm²
- Variable number of lead-in wires
- Compact design for space-constrained installations
- Validation according to USCAR-2
- Optional Data Matrix Code marking according to ISO 15415, with up to 14 characters
