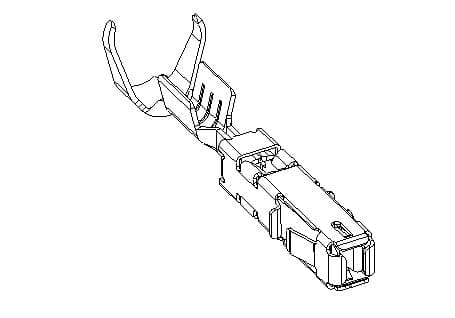

Lear MAK/MAS Series Terminals
MAK / MAS terminals are available from 0.5 mm terminal size up to 12 mm. Available for crimping and welding for wires or flat foil cable connection. By offering different cable ranges and different surface plating, this product series can be used for many sealed or unsealed applications.
  • Cavity compatible with AK standard
  • Crimp compatible with existing crimp tools
  • Outstanding reliability
  • Established in the automotive market
  • Secondary locking is possible from all sides
  • Plug area all side protected
  • Contact area additionally supported by spring
  • High ampacity due to spring support
  • Terminal unlockable with extraction tool
  • Available for sealed and unsealed applications




Related Parts

MAK 12.0 TERMINAL
MAK 12.0 TERMINAL
32025Y29U
Product Category:
TERMINALS
Legacy Part Number:
28499306710
Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12.0 TERMINAL
MAK 12.0 TERMINAL
E02717700
Product Category:
TERMINALS
Legacy Part Number:
28499000002
Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 1.5 PLUS TERMINAL
MAK 1.5 PLUS TERMINAL
32025Y199
Product Category:
TERMINALS
Legacy Part Number:
28440306702
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 PLUS TERMINAL
MAK 1.5 PLUS TERMINAL
E18904700
Product Category:
TERMINALS
Legacy Part Number:
28354000001
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 PLUS TERMINAL
MAK 1.5 PLUS TERMINAL
32025Y196
Product Category:
TERMINALS
Legacy Part Number:
28355306185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
