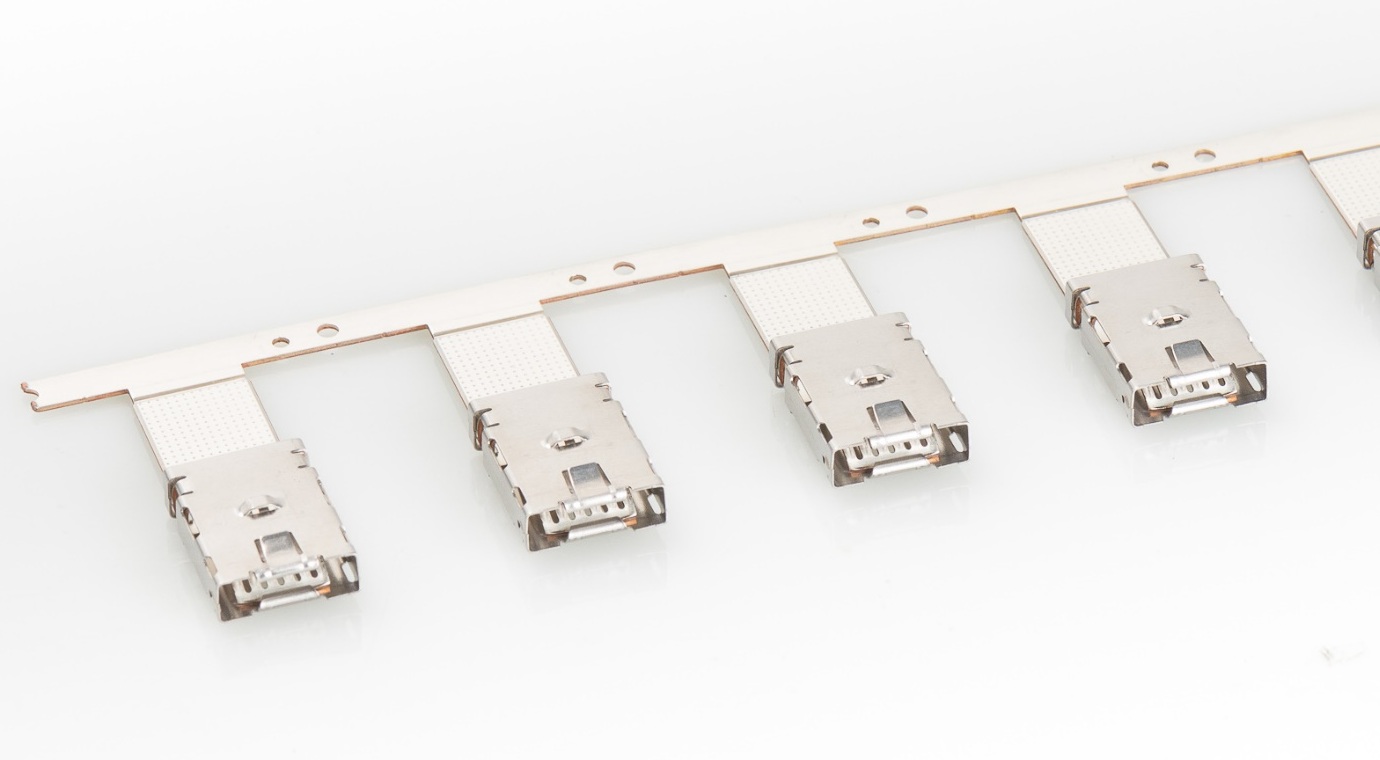

Product features
The MAK 12 EVO is a high-power terminal with extended electrical and mechanical performance. It has Ag-Ni plating for high-temperature applications and a fully protected contact area. The lamella design reduces insertion force. Lear describes outstanding power transmission due to multiple contact points provided by that design. The terminal can be unlocked with an extraction tool and is designed for sealed or unsealed applications.
High-current performance for copper and aluminum cables
The Lear MAK 12 EVO terminal provides a current-carrying capacity of up to 150 A at an ambient temperature of 80°C, with an initial contact resistance of no more than 0.30 mΩ. The terminal supports copper cables from 4 to 35 mm² and aluminum cables from 10 to 35 mm², enabling high-current connection designs for different vehicle power architectures.
The CuNiSi terminal body and stainless-steel top spring are designed for operation across a temperature range of -40°C to +170°C. The terminal supports up to 50 mating cycles and is compatible with existing MAK 12 connector cavities and ultrasonic welding equipment, helping simplify integration into established production processes.
Key technical features and benefits:
- Current-carrying capacity up to 150 A at 80°C ambient temperature
- Initial contact resistance of ≤ 0.30 mΩ
- Operating temperature range from -40°C to +170°C
- Copper wire range from 4 to 35 mm²
- Aluminum wire range from 10 to 35 mm²
- Up to 50 mating cycles
- CuNiSi terminal body
- Stainless-steel top spring
- Maximum mating force of 25 N
- Maximum unmating force of 20 N
- Vibration levels LV214 SG1 and SG2
- Compatible with existing MAK 12 connector cavities
- Compatible with existing ultrasonic welding equipment
- Designed for robust ultrasonic cable termination
- Compact, pluggable high-current terminal system
Derating curve

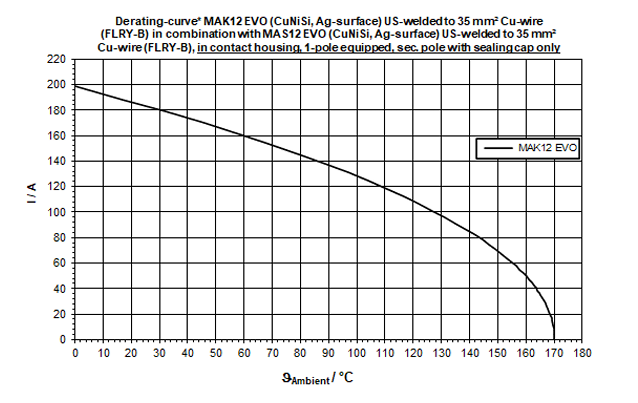

The MAK 12 EVO derating curve plots current against ambient temperature. It shows how allowable current changes as ambient temperature rises.
