TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3B0XP0301
Product Family
HC

Other properties

Terminal Size [mm]
6.3
Application
High Current
Core Material
Cu
Plating Material
Ag
Sealable
Unsealed
Connection Technology
PCB Soldered
Terminal Type
Receptacle
Remarks
Terminal Weld PCB
RoHS
YES

2D Drawing

2D Drawing 3B0XP0301

DOWNLOAD

3D PDF

3D PDF 3B0XP0301

DOWNLOAD

3D Cad

3D Cad 3B0XP0301

DOWNLOAD
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
E01733100
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 1-16mm²
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 1-16mm²
E02428900
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
16
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
E02430500
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
E02430600
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
6.3 Receptacle PCB Terminal, Ag
6.3 Receptacle PCB Terminal, Ag
E05576100
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–
6.3 Receptacle PCB Terminal, Ag
6.3 Receptacle PCB Terminal, Ag
E01028500
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–

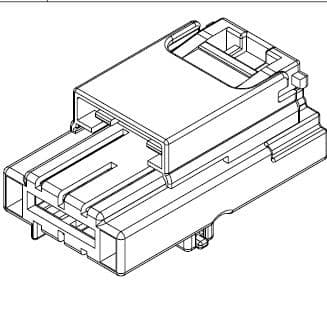

1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
E04315302
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed

Loading...

3B0XP0301 - 6.3 Receptacle PCB Terminal, Ag

Part Number: 3B0XP0301

Click to see 3D model

6.3 Receptacle PCB Terminal, Ag

Product Specification

Lear’s High Current Connection Systems are developed to meet the demanding conditions of high power automotive applications and enhance their performance. Mainly used in Electric Vehicles and 48volt systems.

Our terminal and connector innovations combined with Lear’s system-level expertise results in an uncompromised solution for high power systems, delivered in the smallest packaged environment. The HC6.3 and HC14.5 give our cusotmers the abilitiy to transfer more current with reduced tab size compared to standard automotive terminal systems, Lear also offer a wide varity of flexible wire connections.

Part Number: 3B0XP0301.
