TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E23202500
Product Family
HC

Other properties

Terminal Size [mm]
6.3
Application
High Current
Core Material
Cu
Plating Material
Ag
Sealable
Unsealed
Connection Technology
Ultrasonic Weld
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
16
Min Temp (C)
-40
Max Temp (C)
+175
Remarks
Terminal Weld Right Angle
RoHS
YES

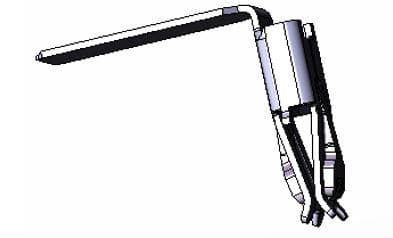

2D Drawing

2D Drawing E23202500

DOWNLOAD
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 0.5-16mm²
2B0XR053F
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
6.3 Receptacle PCB Terminal, Ag
6.3 Receptacle PCB Terminal, Ag
3B0XP0301
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–
HC 6.3 Receptacle Sealed Ultrasonic Terminal, Ag, 1-16mm²
HC 6.3 Receptacle Sealed Ultrasonic Terminal, Ag, 1-16mm²
E00319200
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
16
6.3 Receptacle PCB Terminal, Ag
6.3 Receptacle PCB Terminal, Ag
E01028500
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–

E23202500 - HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 1-16mm²

Part Number: E23202500

HC 6.3 Receptacle Unsealed Ultrasonic Terminal, Ag, 1-16mm²

Product Specification

Lear’s High Current Connection Systems are developed to meet the demanding conditions of high power automotive applications and enhance their performance. Mainly used in Electric Vehicles and 48volt systems.

Our terminal and connector innovations combined with Lear’s system-level expertise results in an uncompromised solution for high power systems, delivered in the smallest packaged environment. The HC6.3 and HC14.5 give our cusotmers the abilitiy to transfer more current with reduced tab size compared to standard automotive terminal systems, Lear also offer a wide varity of flexible wire connections.

Part Number: E23202500.

Lear Connection Systems is offering other variants of this product:

CONTACT US
