TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E02430500
- Product Family
- HC
Other properties
- Terminal Size [mm]
- 6.3
- Application
- High Current
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Ultrasonic Weld
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 16
- Min Temp (C)
- -40
- Max Temp (C)
- +175
- Remarks
- Terminal Weld Right Angle
- RoHS
- YES
DOWNLOADS
2D Drawing

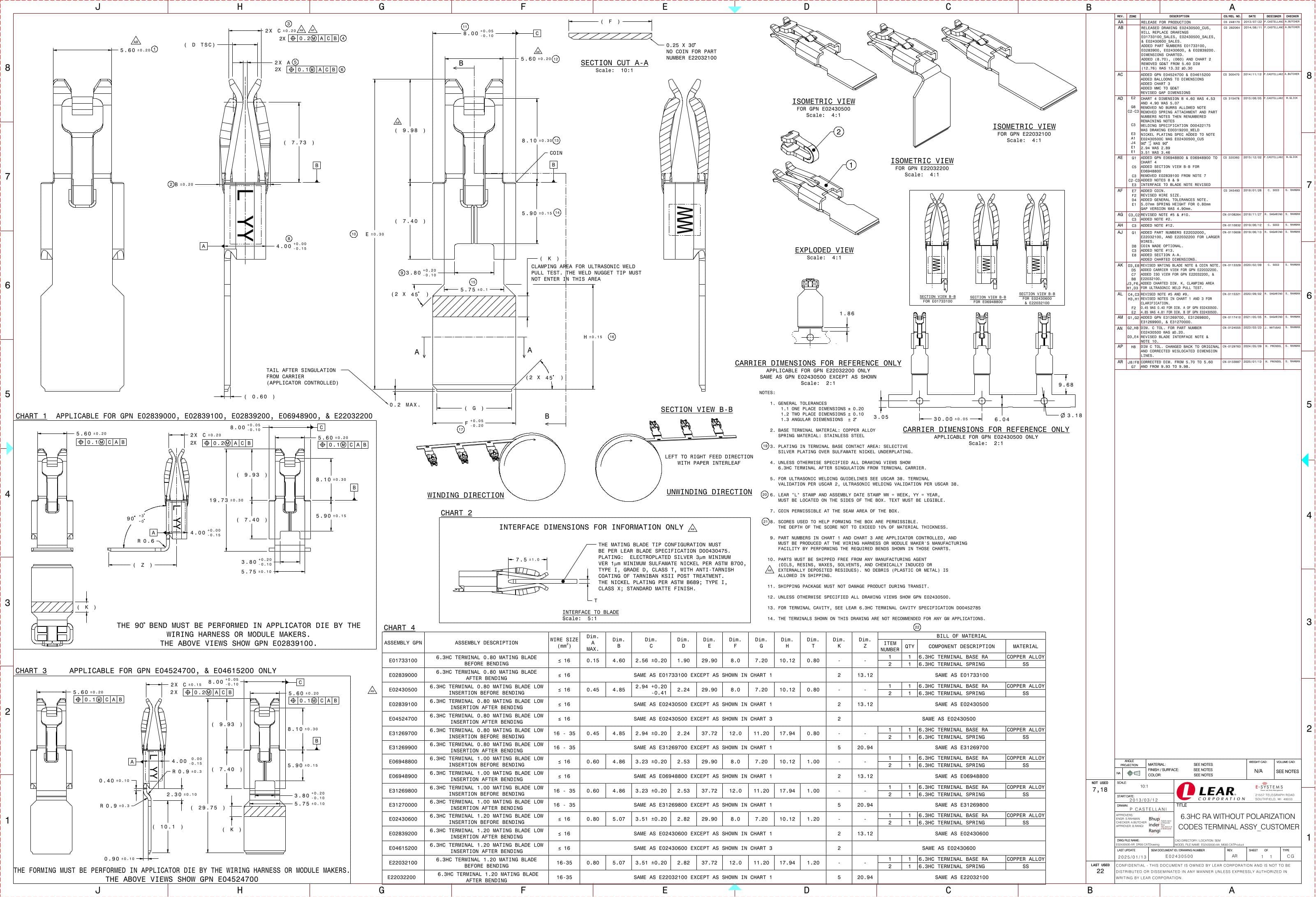

2D Drawing E02430500
SIMILAR PARTS

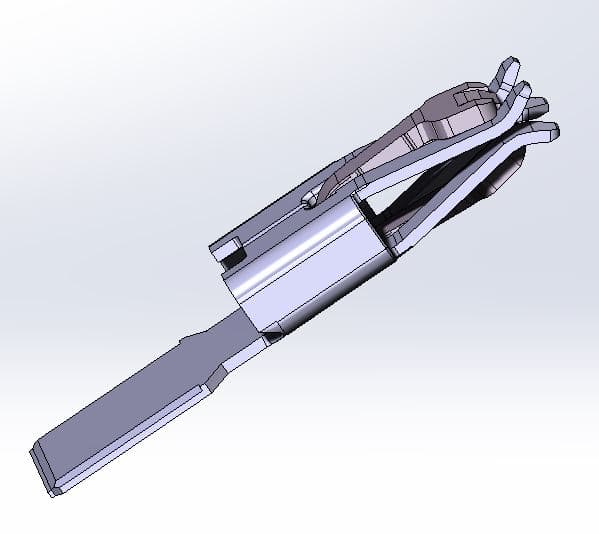

HC 6.3 TERMINAL
Part Number: 2B0XR053F
Product Category: TERMINALS
Legacy Part Number: –
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
HC 6.3 TERMINAL
Part Number: 3B0XP0301
Product Category: TERMINALS
Legacy Part Number: –
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–
HC 6.3 TERMINAL
Part Number: E00319200
Product Category: TERMINALS
Legacy Part Number: –
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
16
HC 6.3 PCB TERMINAL
Part Number: E01028500
Product Category: TERMINALS
Legacy Part Number: –
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
–
Maximum Cable Cross section [mm²]
–
HC 6.3 TERMINAL
Part Number: E02430500
Product Specification
Lear’s High Current Connection Systems are developed to meet the demanding conditions of high power automotive applications and enhance their performance. Mainly used in Electric Vehicles and 48volt systems.
Our terminal and connector innovations combined with Lear’s system-level expertise results in an uncompromised solution for high power systems, delivered in the smallest packaged environment. The HC6.3 and HC14.5 give our cusotmers the abilitiy to transfer more current with reduced tab size compared to standard automotive terminal systems, Lear also offer a wide varity of flexible wire connections.
