TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E02839200
Product Family
HC

Other properties

Terminal Size [mm]
6.3
Application
High Current
Core Material
Cu
Plating Material
Ag
Sealable
Unsealed
Connection Technology
Ultrasonic Weld
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
16
Min Temp (C)
-40
Max Temp (C)
+175
Remarks

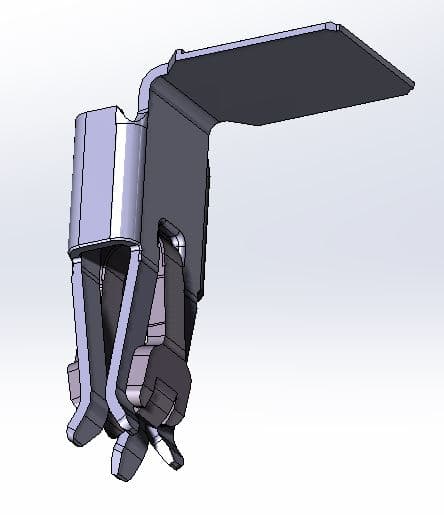

Terminal Weld Right Angle
RoHS
YES

2D Drawing

2D Drawing E02839200
