TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E41388200
Legacy Part Number
28038000001
Product Family
MSK

Other properties

Terminal Size [mm]
0.63
Application
Signal
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
Min Temp (C)
-40
Max Temp (C)
+130

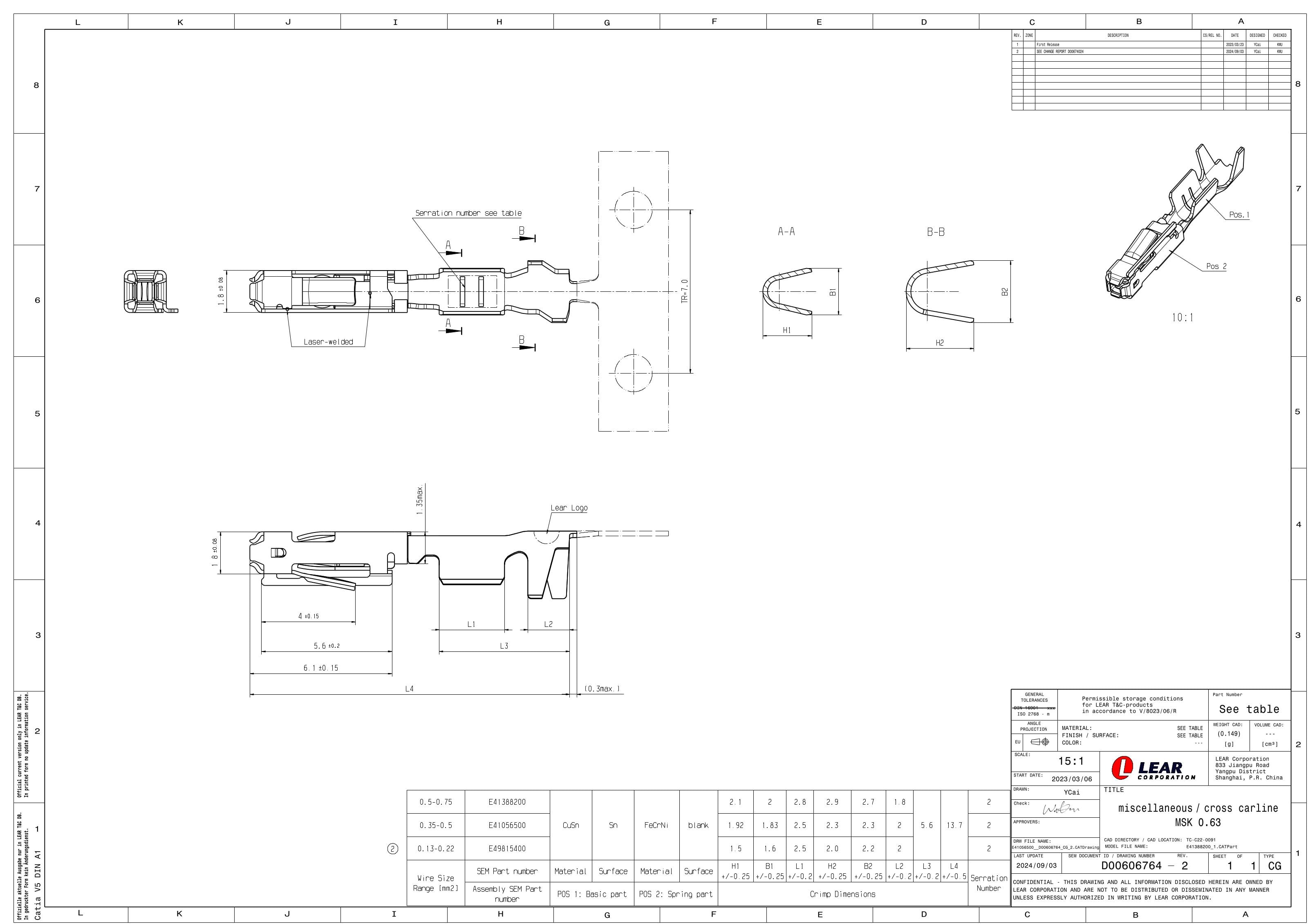

2D Drawing

2D Drawing E41388200

DOWNLOAD
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E32273800
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E49815400
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALS
Legacy Part Number:
28034201178
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALS
Legacy Part Number:
28034000001
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E41056500
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALS
Legacy Part Number:
28038000001
Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
2way MSK 0.63 Receptacle Unsealed Black Connector
2way MSK 0.63 Receptacle Unsealed Black Connector
E51714700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
4way MSK 0.63 Receptacle Unsealed Blue Connector, Code B
4way MSK 0.63 Receptacle Unsealed Blue Connector, Code B
E48561100
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
4way MSK 0.63 Receptacle Unsealed Black Connector, Code A
4way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E41388900
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
12way MSK 0.63 Receptacle Unsealed Black Connector, Code A
12way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E51715200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
12
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
16way MSK 0.63 Receptacle Unsealed Brown Connector, Code A
16way MSK 0.63 Receptacle Unsealed Brown Connector, Code A
E51715400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
16
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
20way MSK 0.63 Receptacle Unsealed Black Connector, Code A
20way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E51715600
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
20
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
24way MSK 0.63 Receptacle Unsealed Black Connector, Code A
24way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E10635700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
24
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
24way MSK 0.63 Receptacle Unsealed Gray Connector, Code B
24way MSK 0.63 Receptacle Unsealed Gray Connector, Code B
E10524200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
24
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
30way MSK 0.63 Receptacle Unsealed Black Connector
30way MSK 0.63 Receptacle Unsealed Black Connector
E20951700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
30way MSK 0.63 Receptacle Unsealed Black Connector
30way MSK 0.63 Receptacle Unsealed Black Connector
E20951800
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed

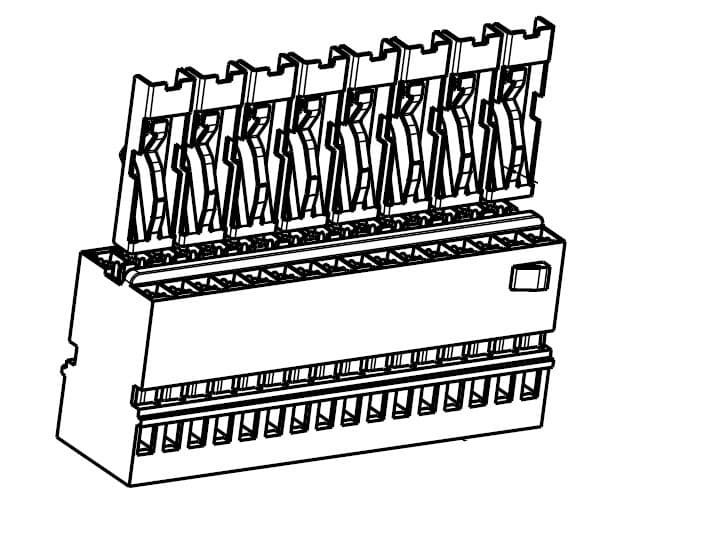

32way MSK 0.63 Receptacle Unsealed Grey Connector, Code B
32way MSK 0.63 Receptacle Unsealed Grey Connector, Code B
E10637600
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
32
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
30way MSK 0.63 Receptacle Unsealed Black Connector
30way MSK 0.63 Receptacle Unsealed Black Connector
E20951100
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed

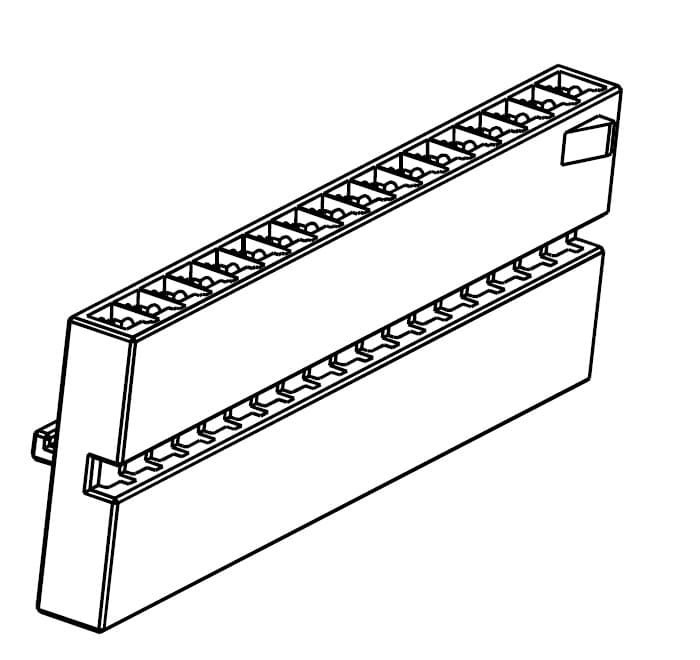

30way MSK 0.63 Receptacle Unsealed Black Connector
30way MSK 0.63 Receptacle Unsealed Black Connector
E20951200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed

E41388200 - MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²

Part Number: E41388200

MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²

Product Specification

Previously cataloged under part number 28038000001.

An unsealed receptacle terminal belonging to the MSK product family, with a terminal size of 0.63 mm. Categorized under Terminals.

Rated for operation across a temperature range of −40 °C to +130 °C.

Part Number: E41388200.

This product requires other components for a fully functional assembly configuration:

Lear Connection Systems is offering other variants of this product:
