TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202574Z6
Legacy Part Number
28034201178
Product Family
MSK

Other properties

Terminal Size [mm]
0.63
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
Min Temp (C)
-40
Max Temp (C)
+130

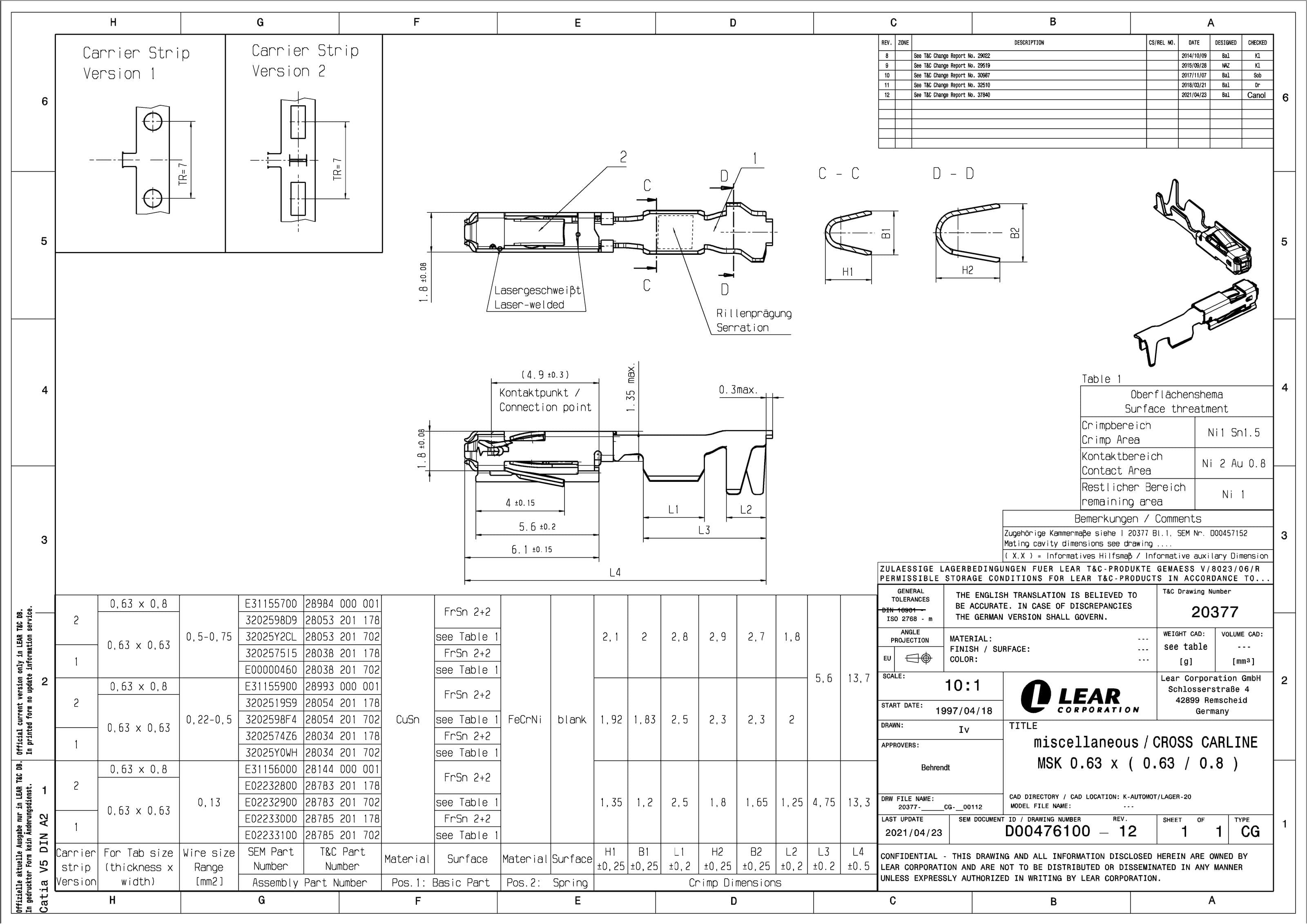

2D Drawing

2D Drawing 3202574Z6

DOWNLOAD

3D PDF

3D PDF 3202574Z6

DOWNLOAD

3D Cad

3D Cad 3202574Z6

DOWNLOAD
