TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E32273800
- Product Family
- MSK
Other properties
- Terminal Size [mm]
- 0.63
- Application
- Signal
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.13
- Maximum Cable Cross section [mm²]
- 0.22
- Min Temp (C)
- -40
- Max Temp (C)
- +130

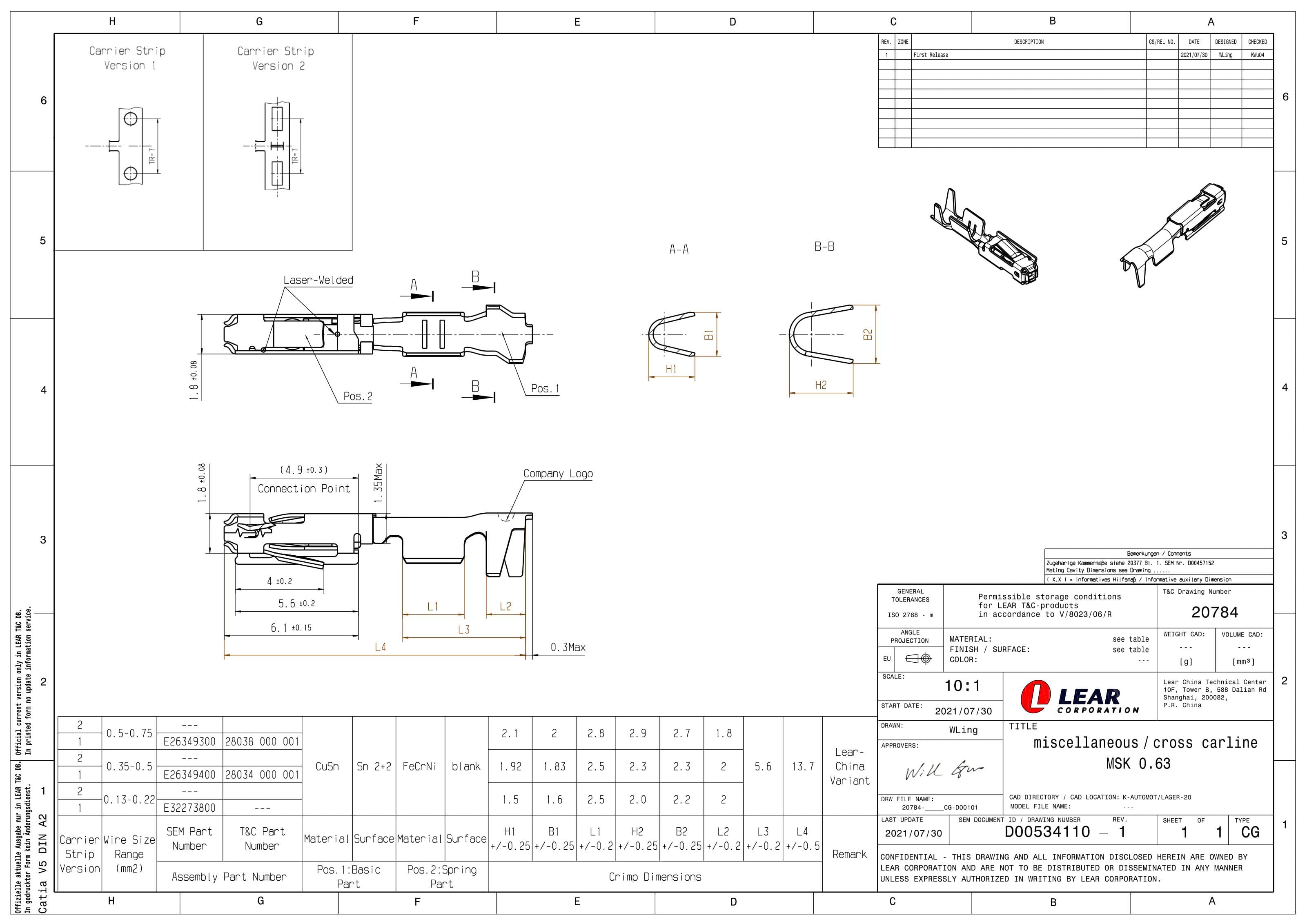

2D Drawing
2D Drawing E32273800
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E49815400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALSLegacy Part Number:
28034000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E41056500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E41388200
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
2way MSK 0.63 Receptacle Unsealed Black Connector
E51714700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
4way MSK 0.63 Receptacle Unsealed Blue Connector, Code B
E48561100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
4way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E41388900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
12way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E51715200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
12
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
16way MSK 0.63 Receptacle Unsealed Brown Connector, Code A
E51715400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
16
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
20way MSK 0.63 Receptacle Unsealed Black Connector, Code A
E51715600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
20
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
32way MSK 0.63 Receptacle Unsealed Grey Connector, Code B
E10637600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
32
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
E32273800 - MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
Part Number: E32273800
Product Specification
An unsealed receptacle terminal belonging to the MSK product family, sized at 0.63 mm. It falls within the Terminals product category.
Rated for an operating temperature range of −40 to +130 °C, making it suitable for demanding automotive thermal environments.
Part Number: E32273800.
This product requires other components for a fully functional assembly configuration:
- 2way MSK 0.63 Receptacle Unsealed Black Connector (E51714700)
- 4way MSK 0.63 Receptacle Unsealed Blue Connector, Code B (E48561100)
- 4way MSK 0.63 Receptacle Unsealed Black Connector, Code A (E41388900)
- 12way MSK 0.63 Receptacle Unsealed Black Connector, Code A (E51715200)
- 16way MSK 0.63 Receptacle Unsealed Brown Connector, Code A (E51715400)
- 20way MSK 0.63 Receptacle Unsealed Black Connector, Code A (E51715600)
- 32way MSK 0.63 Receptacle Unsealed Grey Connector, Code B (E10637600)
Lear Connection Systems is offering other variants of this product:
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E49815400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm² (E41056500)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E41388200)
