TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E10524200
- Product Family
- MSK
Other properties
- No. of cavities
- 24
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63
- Sealable
- Unsealed
- Color
- GRAY
- Connector Application
- Airbag
- Mechanical coding
- B
- Remarks
- This connector is equipped with shorting bars to prevent unintentional deployment of the safety restraint system.

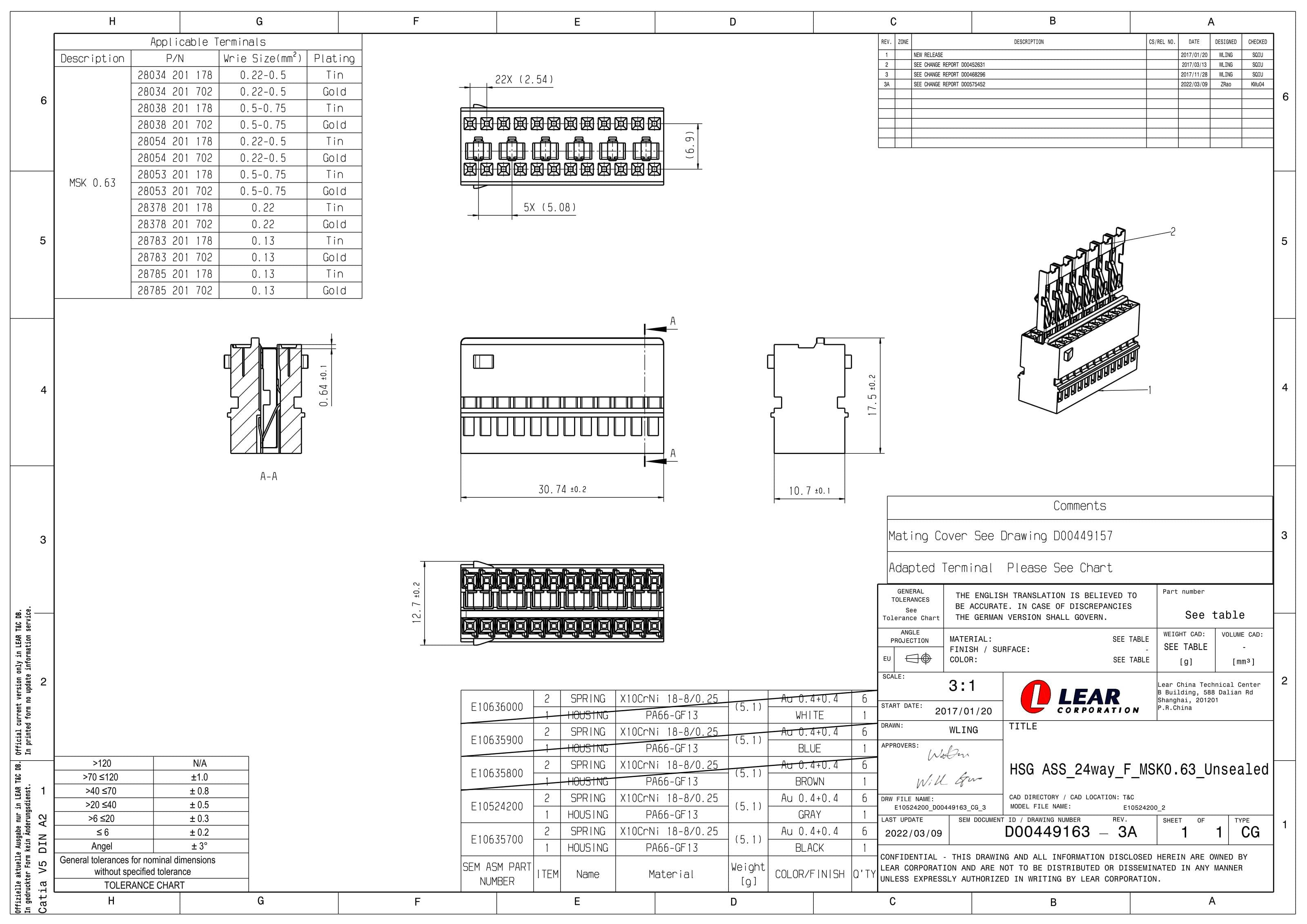

2D Drawing
2D Drawing E10524200
E10524200 - 24way MSK 0.63 Receptacle Unsealed Gray Connector, Code B
Part Number: E10524200
Product Specification
This unsealed receptacle connector belongs to the MSK product family within the CONNECTORS category, offering 24 cavities (ways) for circuit accommodation. It is designed for 0.63 mm terminals.
Primarily designed for airbag applications in automotive vehicles.
Mechanical coding B provides a poka-yoke mating feature to ensure correct connector orientation and prevent mismating.
The main connector part is molded in PA66 GF with a dominant gray color.
This connector is equipped with shorting bars to prevent unintentional deployment of the safety restraint system.
Part Number: E10524200.
This product requires other components for a fully functional assembly configuration:
- 24way MSK 0.63 Receptacle Unsealed Gray Connector, Code B (E10523400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E32273800)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E49815400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm² (E41056500)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E41388200)
