TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E51715600
- Product Family
- MSK
Other properties
- No. of cavities
- 20
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63
- Sealable
- Unsealed
- Color
- BLACK
- Mechanical coding
- A

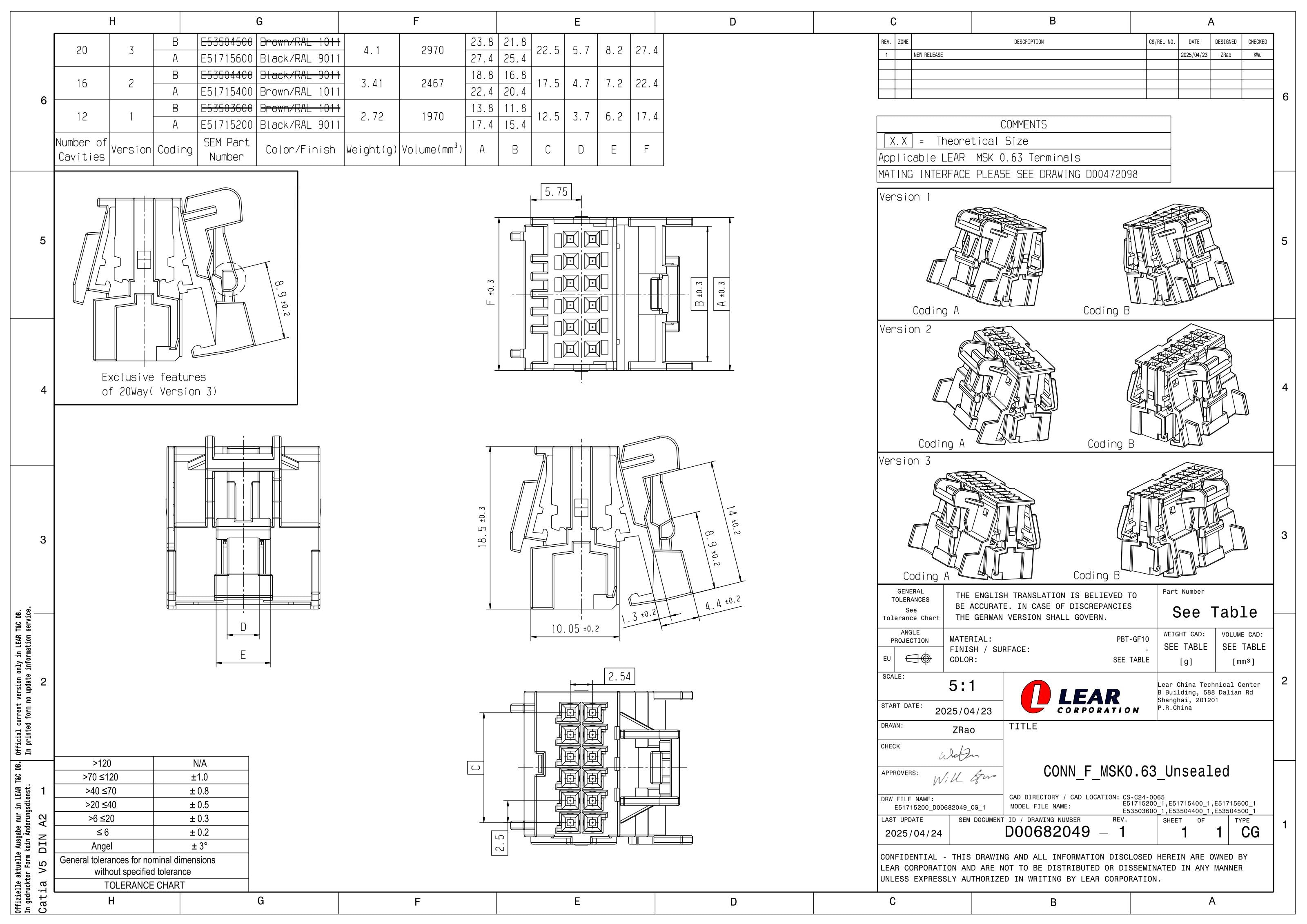

2D Drawing
2D Drawing E51715600
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E32273800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E49815400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALSLegacy Part Number:
28034000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E41056500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E41388200
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E51715600 - 20way MSK 0.63 Receptacle Unsealed Black Connector, Code A
Part Number: E51715600
Product Specification
This connector belongs to the MSK product family within the Connectors category, configured as a 20-cavity unsealed receptacle accepting 0.63 mm terminals.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector pairing during assembly.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E51715600.
This product requires other components for a fully functional assembly configuration:
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E32273800)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E49815400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm² (E41056500)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E41388200)
