TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E26349400
Legacy Part Number
28034000001
Product Family
MSK

Other properties

Terminal Size [mm]
0.63
Application
Signal
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
Min Temp (C)
-40
Max Temp (C)
+130

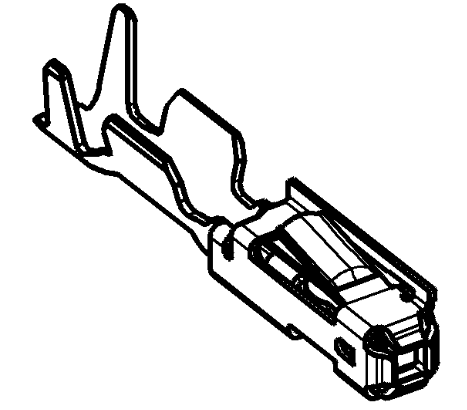

2D Drawing

2D Drawing E26349400

DOWNLOAD

3D PDF

3D PDF E26349400

DOWNLOAD
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
