TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E20951100
- Product Family
- MSK
Other properties
- No. of cavities
- 30
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63
- Sealable
- Unsealed
- Color
- BLACK
2D Drawing
2D Drawing E20951100

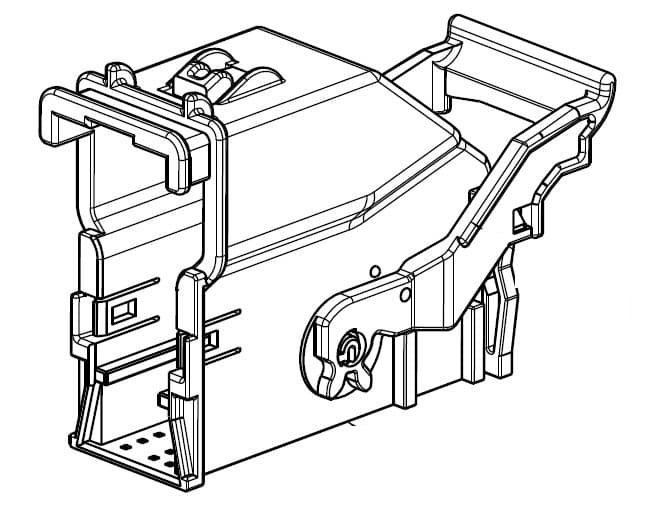

30way MSK 0.63 Receptacle Unsealed Yellow Connector, Code AF
E20950800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
30way MSK 0.63 Receptacle Unsealed Black Connector
E20951200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
30
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E32273800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E49815400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALSLegacy Part Number:
28034000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E41056500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E41388200
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E20951100 - 30way MSK 0.63 Receptacle Unsealed Black Connector
Part Number: E20951100
Product Specification
This connector belongs to the CONNECTORS product category within the MSK product family. It is configured as a 30-cavity receptacle, accommodating 30 circuits, and is unsealed in design.
The connector is compatible with 0.63 mm terminals. The main connector part is molded in PBT GF with a dominant black color.
Part Number: E20951100.
This product requires other components for a fully functional assembly configuration:
- 30way MSK 0.63 Receptacle Unsealed Yellow Connector, Code AF (E20950800)
- 30way MSK 0.63 Receptacle Unsealed Black Connector (E20951200)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E32273800)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E49815400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm² (E41056500)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E41388200)
