TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E10523400
- Product Family
- MSK
Other properties
- No. of cavities
- 24
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63
- Sealable
- Unsealed
- Color
- GRAY
- Connector Application
- Airbag
- Mechanical coding
- B
- Remarks
- This connector is equipped with shorting bars to prevent unintentional deployment of the safety restraint system.

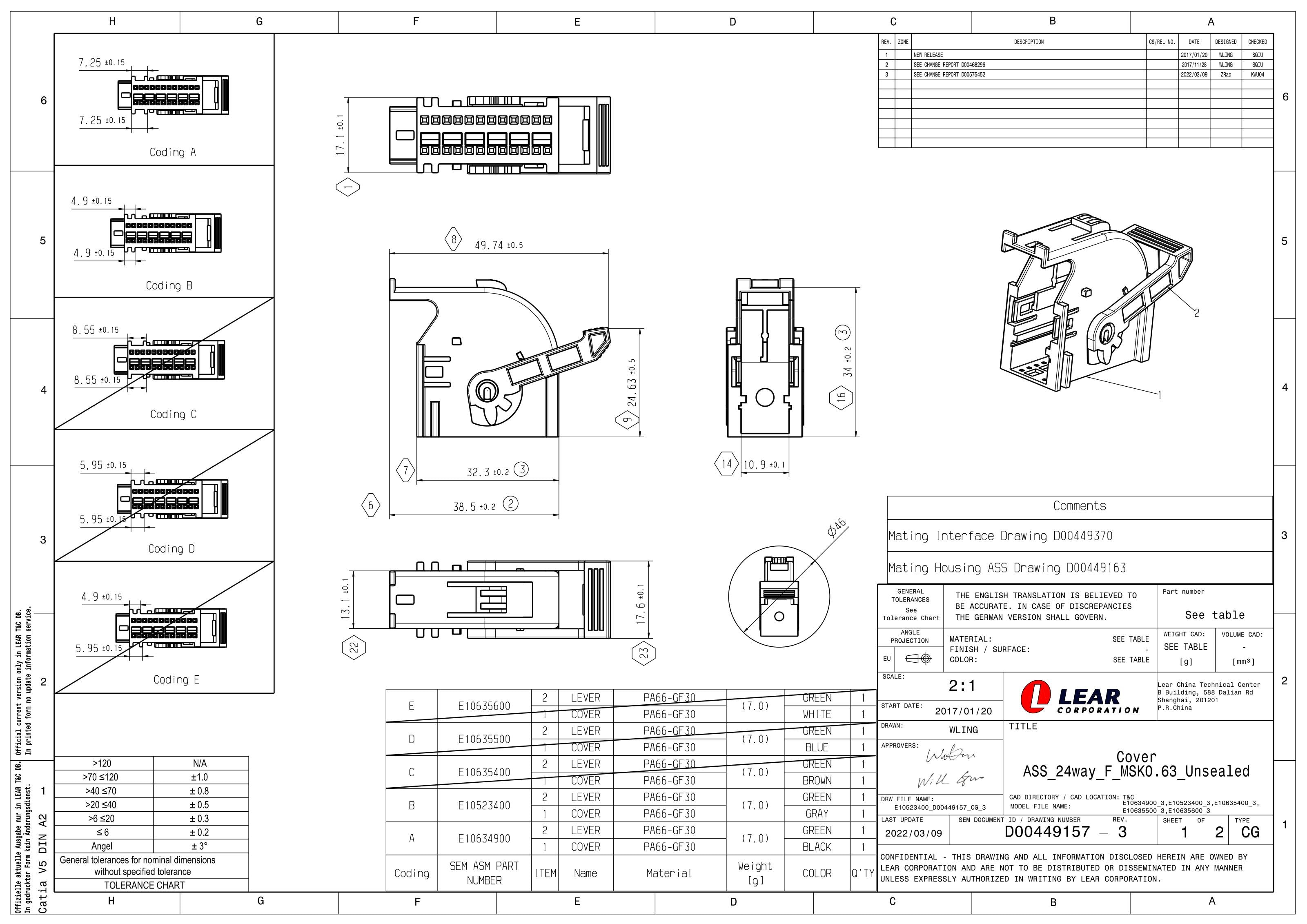

2D Drawing
2D Drawing E10523400
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E32273800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E49815400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALSLegacy Part Number:
28034000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E41056500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E41388200
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E10523400 - 24way MSK 0.63 Receptacle Unsealed Gray Connector, Code B
Part Number: E10523400
Product Specification
This unsealed receptacle belongs to the MSK product family within the Connectors category, offering 24 cavities configured for 0.63 mm terminals.
Primarily designed for airbag applications in automotive vehicles.
A Code B mechanical coding provides a poka-yoke mating feature to ensure correct connector orientation and prevent mis-mating.
The main connector part is molded in PA66 GF with a dominant gray color.
This connector is equipped with shorting bars to prevent unintentional deployment of the safety restraint system.
Part Number: E10523400.
This product requires other components for a fully functional assembly configuration:
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E32273800)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E49815400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm² (E41056500)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E41388200)
Lear Connection Systems is offering other variants of this product:
