TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E46490400
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuCrTiSi
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130

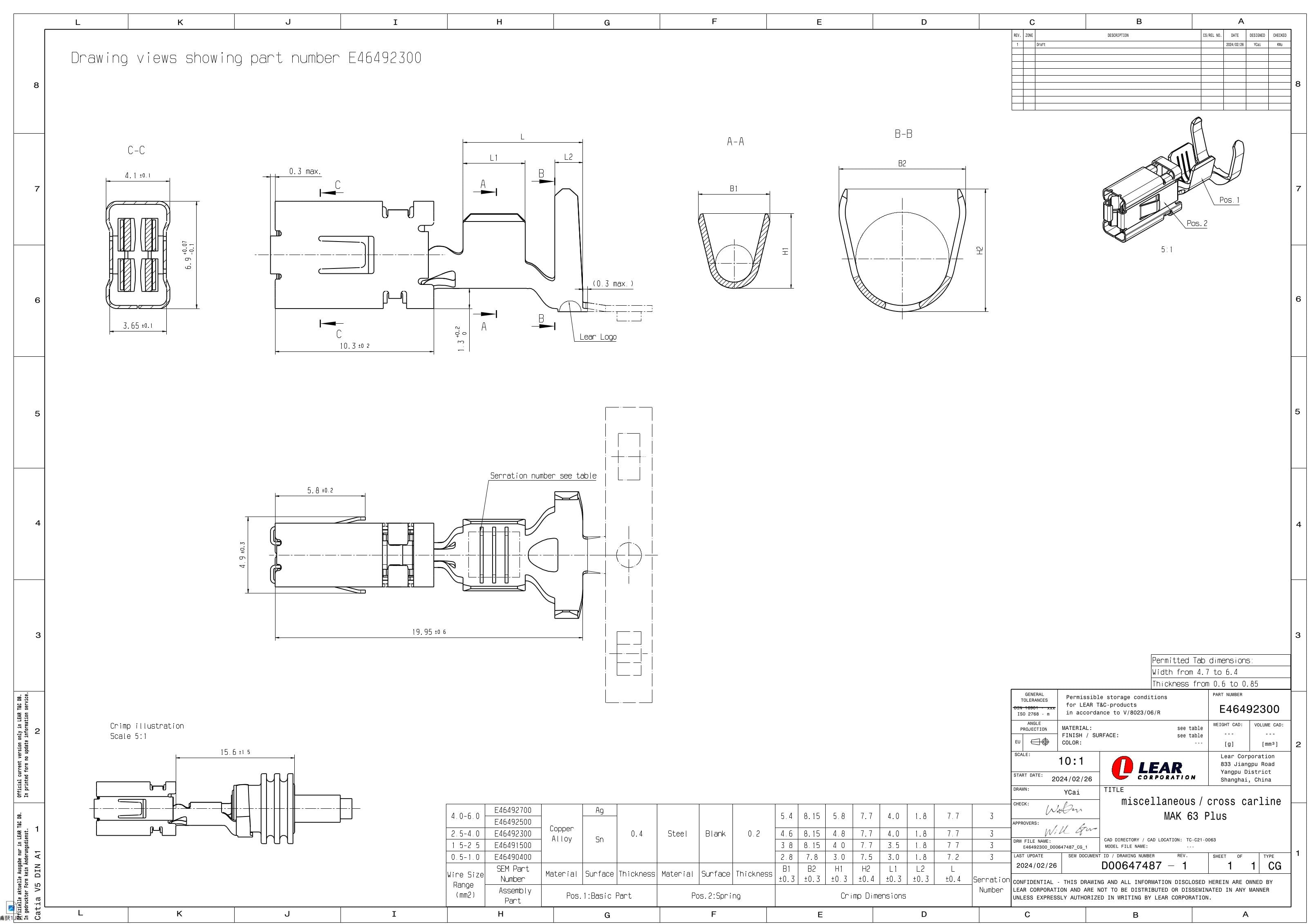

2D Drawing
2D Drawing E46490400
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
3202595P5
Product Category:
TERMINALSLegacy Part Number:
28364306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E00274200
Product Category:
TERMINALSLegacy Part Number:
28365306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46491500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E00274300
Product Category:
TERMINALSLegacy Part Number:
28366306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E46492300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E26240700
Product Category:
TERMINALSLegacy Part Number:
28919306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E46492500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E46492700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA
E14999600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25434200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E41273400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E42733500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44409700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44410000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44410300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E47119700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E54312700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA
E02108600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
38
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Sealed
E46490400 - MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: E46490400
Product Specification
A sealed receptacle terminal belonging to the MAK product family, sized at 6.3 mm. Categorized within the Terminals product category, it is designed for crimp termination onto wire cross-sections of 0.5–1 mm².
Rated for an operating temperature range of –40 to +130 °C, this terminal is suited for demanding automotive thermal environments.
Part Number: E46490400.
This product requires other components for a fully functional assembly configuration:
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA (E14999600)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25434200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435300)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435400)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E35614000)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E35614400)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E35614500)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E41273400)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E42733500)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E44409700)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E44410000)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E44410300)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E47119700)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E54312700)
- 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA (E02108600)
Lear Connection Systems is offering other variants of this product:
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (3202595P5)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E00274200)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46491500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E00274300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E46492300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E26240700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E46492500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm² (E46492700)
