TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E00274200
- Legacy Part Number
- 28365306185
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuCrTiSi
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Min Temp (C)
- -40
- Max Temp (C)
- +130
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
3202595P5
Product Category:
TERMINALSLegacy Part Number:
28364306185Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E00274300
Product Category:
TERMINALSLegacy Part Number:
28366306185Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E26240700
Product Category:
TERMINALSLegacy Part Number:
28919306185Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E46492700
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Ag
Minimum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E46490400
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46491500
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
1.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E46492300
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E46492500
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
4
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25434200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44409700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44410300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector
E02213100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
38
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Sealed
Loading...

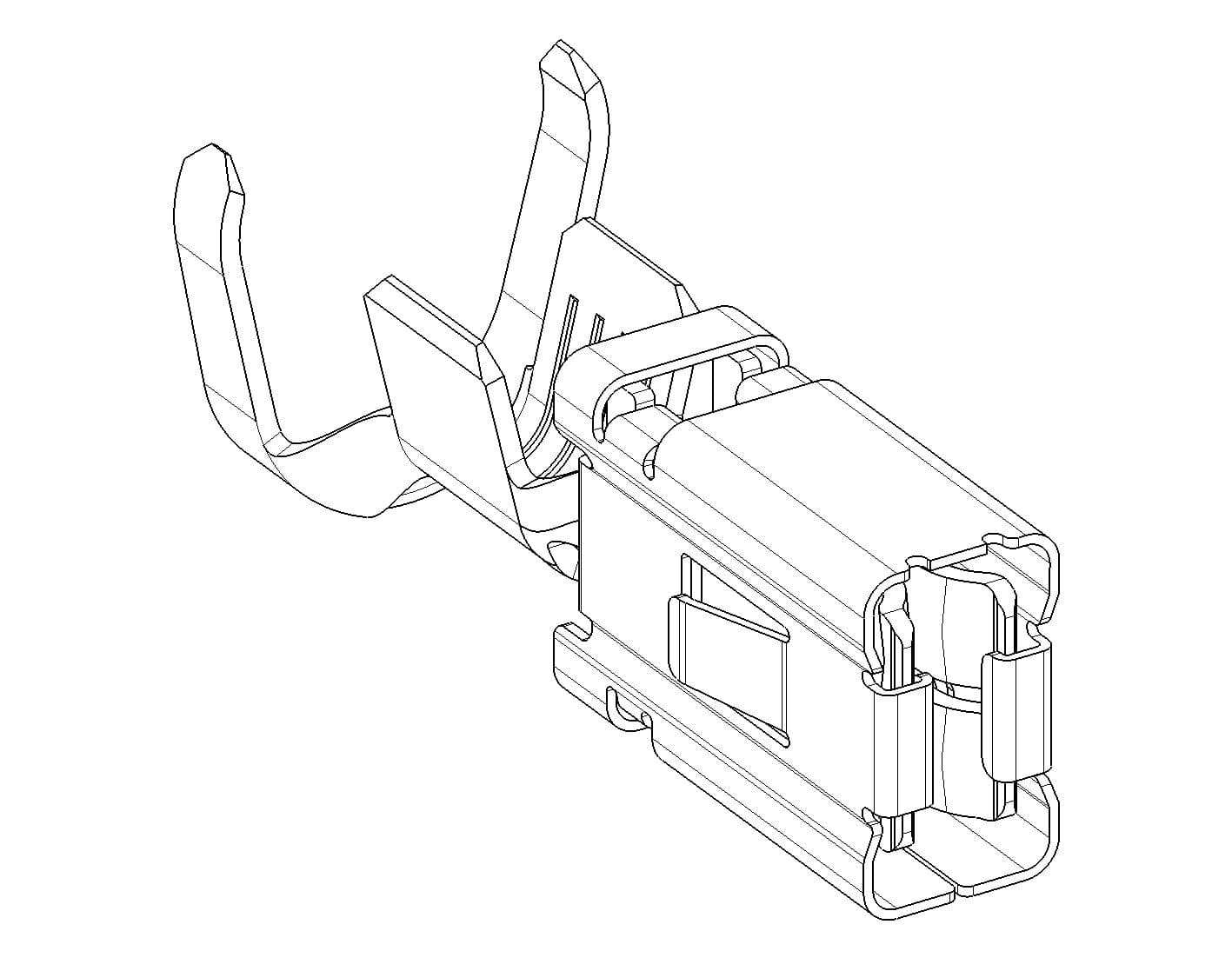

E00274200 - MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
Part Number: E00274200
Click to see 3D model
Product Specification
Previously cataloged under part number 28365306185.
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: E00274200, compatible with: 1241414-1.
This product requires other components for a fully functional assembly configuration:
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25434200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435300)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435400)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E44409700)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E44410300)
- 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector (E02213100)
Lear Connection Systems is offering other variants of this product:
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (3202595P5)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E00274300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E26240700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm² (E46492700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E46490400)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46491500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E46492300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E46492500)
