TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202595P5
- Legacy Part Number
- 28364306185
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130
Loading...

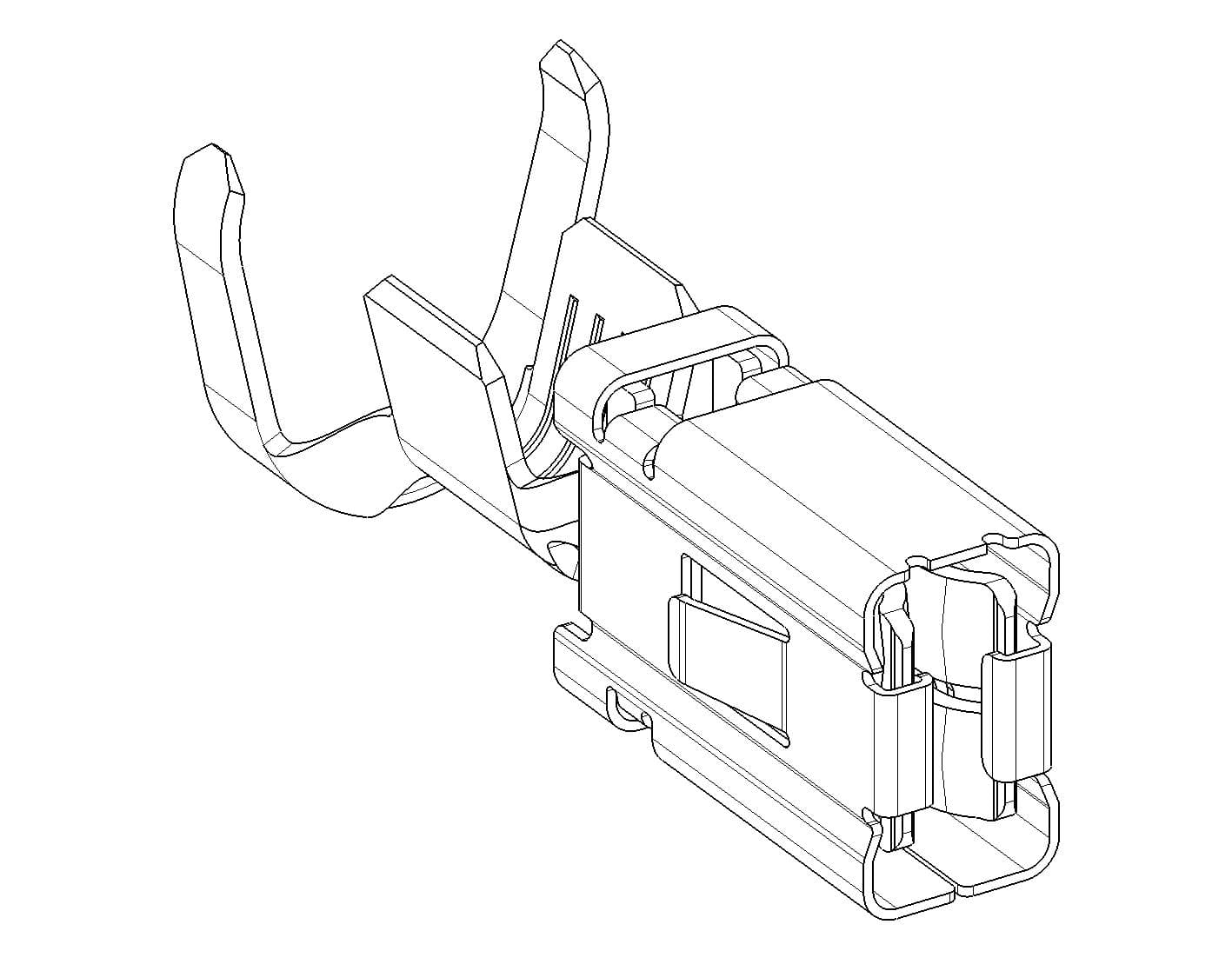

3202595P5 - MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: 3202595P5
Click to see 3D model
Product Specification
Previously cataloged under part number 28364306185.
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: 3202595P5, compatible with: 1241412-1, 1241412-3.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E00274300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E26240700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm² (E46492700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E46490400)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E00274200)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46491500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E46492300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E46492500)
