TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E14999600
- Product Family
- CLF, MAK
Other properties
- No. of cavities
- 46
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2, 2.8, 6.3
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- ABS
- Remarks
- Variant 1

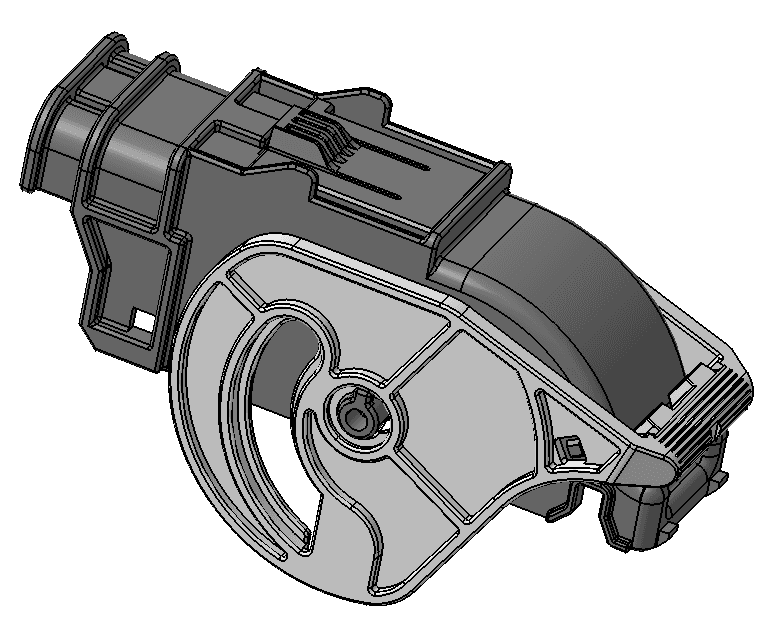

2D Drawing
2D Drawing E14999600
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25434200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E35614500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E41273400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E42733500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44409700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44410000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E44410300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E47119700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E54312700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA
E14999500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA
E36658500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25466400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E37115800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E00000266
Product Category:
TERMINALSLegacy Part Number:
28320306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E46488000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E46488300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46488500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E00274300
Product Category:
TERMINALSLegacy Part Number:
28366306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E26240700
Product Category:
TERMINALSLegacy Part Number:
28919306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E46492700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E46490400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46491500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E46492300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E46492500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
Single Wire Seal, Cavity Hole Diameter 5.2mm
320455A96
Product Category:
SEALSLegacy Part Number:
16260627626Seal type
Single Wire Seal
Cable diam min [mm]
1.9
Cable diam max [mm]
3
Single Wire Seal, Cavity Hole Diameter 8.2mm
E00020638
Product Category:
SEALSLegacy Part Number:
16697627626Seal type
Single Wire Seal
Cable diam min [mm]
2.7
Cable diam max [mm]
3.7
Single Wire Seal, Cavity Hole Diameter 8.2mm
320455A9G
Product Category:
SEALSLegacy Part Number:
16259627646Seal type
Single Wire Seal
Cable diam min [mm]
3.4
Cable diam max [mm]
4.4
E14999600 - 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA
Part Number: E14999600
Product Specification
This connector provides 46 cavities and is fully sealed, with a receptacle terminal type accommodating terminal sizes of 1.2, 2.8, and 6.3 mm. It belongs to the Connectors product category within the CLF and MAK product families.
Primarily designed for ABS applications in automotive vehicles.
The connector is equipped with both a Connector Position Assurance (CPA) and a Terminal Position Assurance (TPA) mechanism, ensuring reliable mating and terminal retention in demanding environments.
The main connector part is molded in PBT GF with a dominant black color. The operating temperature range spans -40 to 125 °C.
Online remarks: Variant 1.
Part Number: E14999600.
This product requires other components for a fully functional assembly configuration:
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA (E14999500)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA (E36658500)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25466400)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E37115800)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E00000266)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E46488000)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E46488300)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46488500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E00274300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E26240700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm² (E46492700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E46490400)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46491500)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (E46492300)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E46492500)
- Single Wire Seal, Cavity Hole Diameter 5.2mm (320455A96)
- Single Wire Seal, Cavity Hole Diameter 8.2mm (E00020638)
- Single Wire Seal, Cavity Hole Diameter 8.2mm (320455A9G)
