TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E02108600
- Product Family
- MAK
Other properties
- No. of cavities
- 38
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.5, 2.8, 6.3
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- ABS

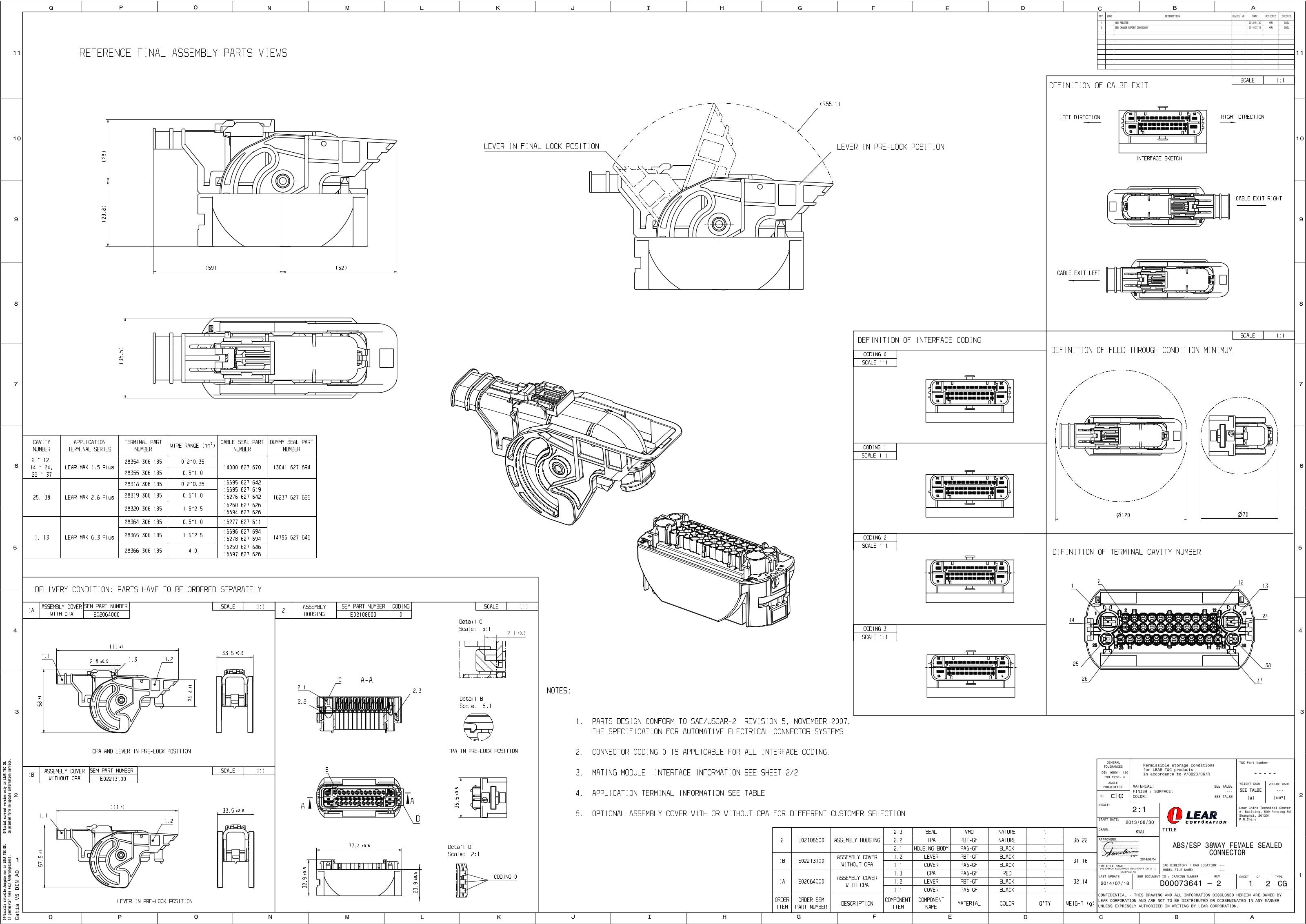

2D Drawing
2D Drawing E02108600
38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA
E02064000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
38
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Sealed
38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector
E02213100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
38
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Sealed
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E34231200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E53858900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E33122000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E53852200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E33122200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E53852300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E31841000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E33116800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E46492700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E46490400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46491500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
E46492300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E46492500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
E02108600 - 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA
Part Number: E02108600
Product Specification
This connector belongs to the MAK product family within the CONNECTORS category, configured as a 38-cavity sealed receptacle supporting terminal sizes of 1.5, 2.8, and 6.3 mm.
Primarily designed for ABS applications in automotive vehicles.
The connector is equipped with both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA), ensuring reliable mating engagement and terminal retention under operational conditions.
The main connector part is molded in PA6 GF GB with a dominant black color. Operating temperature range is -40 to 125 °C.
Part Number: E02108600, compatible with: 1-2112499-1, 1928405154, 15432304, 6189-7139.
This product requires other components for a fully functional assembly configuration:
- 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA (E02064000)
- 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector (E02213100)
