TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E57162600
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 59
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- GRAY
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Male dress cover

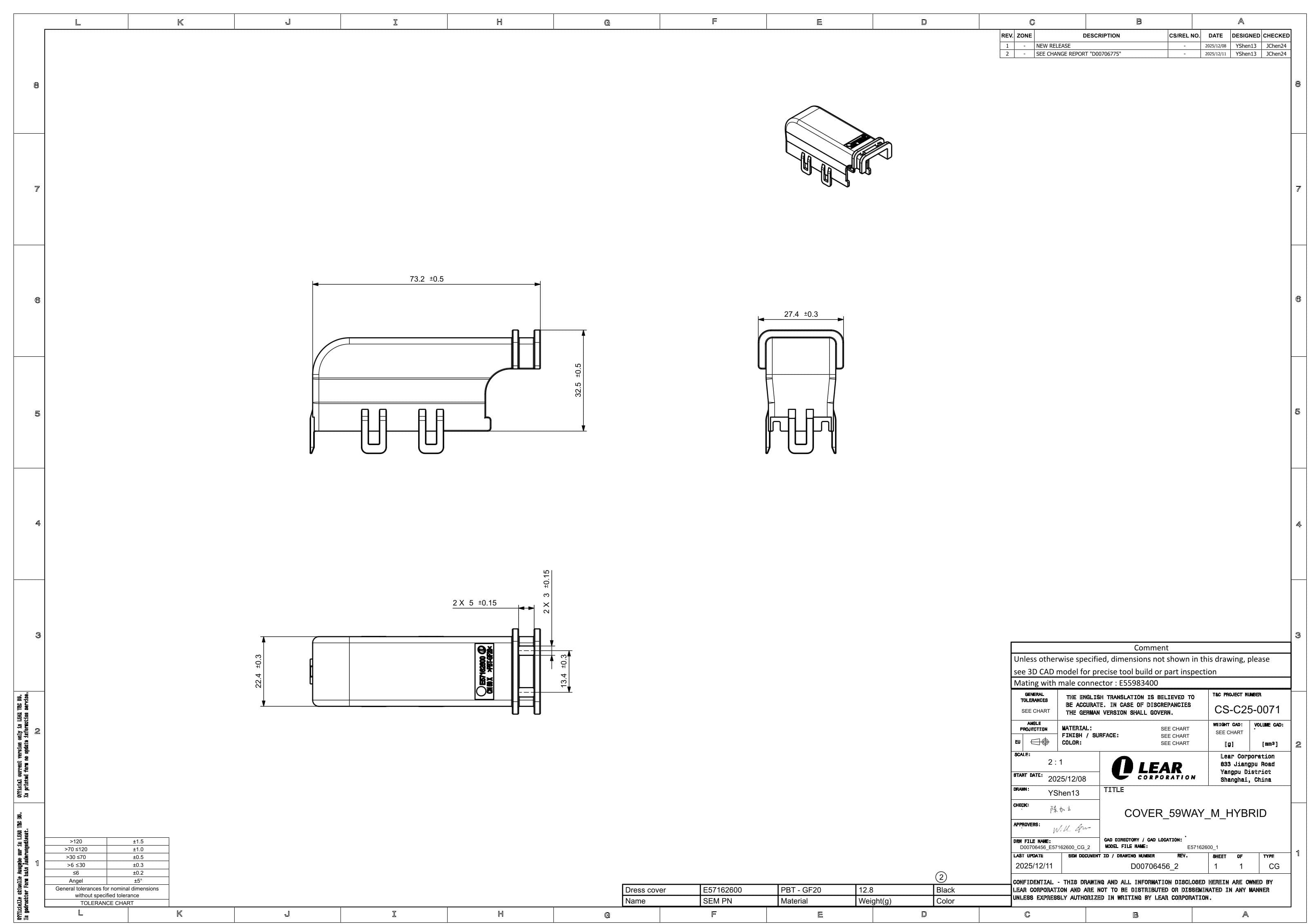

2D Drawing
2D Drawing E57162600
E57162600 - 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector
Part Number: E57162600
Product Specification
This connector belongs to the CONNECTORS product category within the COS, MAS, and AFS product families, configured as a 59-cavity unsealed design accommodating tab terminals in sizes 0.63, 1.2, and 2.8 mm.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA) to secure terminals in their seated positions and maintain reliable electrical contact under operating conditions.
The main connector part is molded in PBT GF with a dominant gray color. The operating temperature range spans -40 °C to 125 °C.
This part is supplied as a male dress cover.
Part Number: E57162600.
This product requires other components for a fully functional assembly configuration:
