TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E56799200
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 59
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Housing assembly w/o shorting bar
2D Drawing

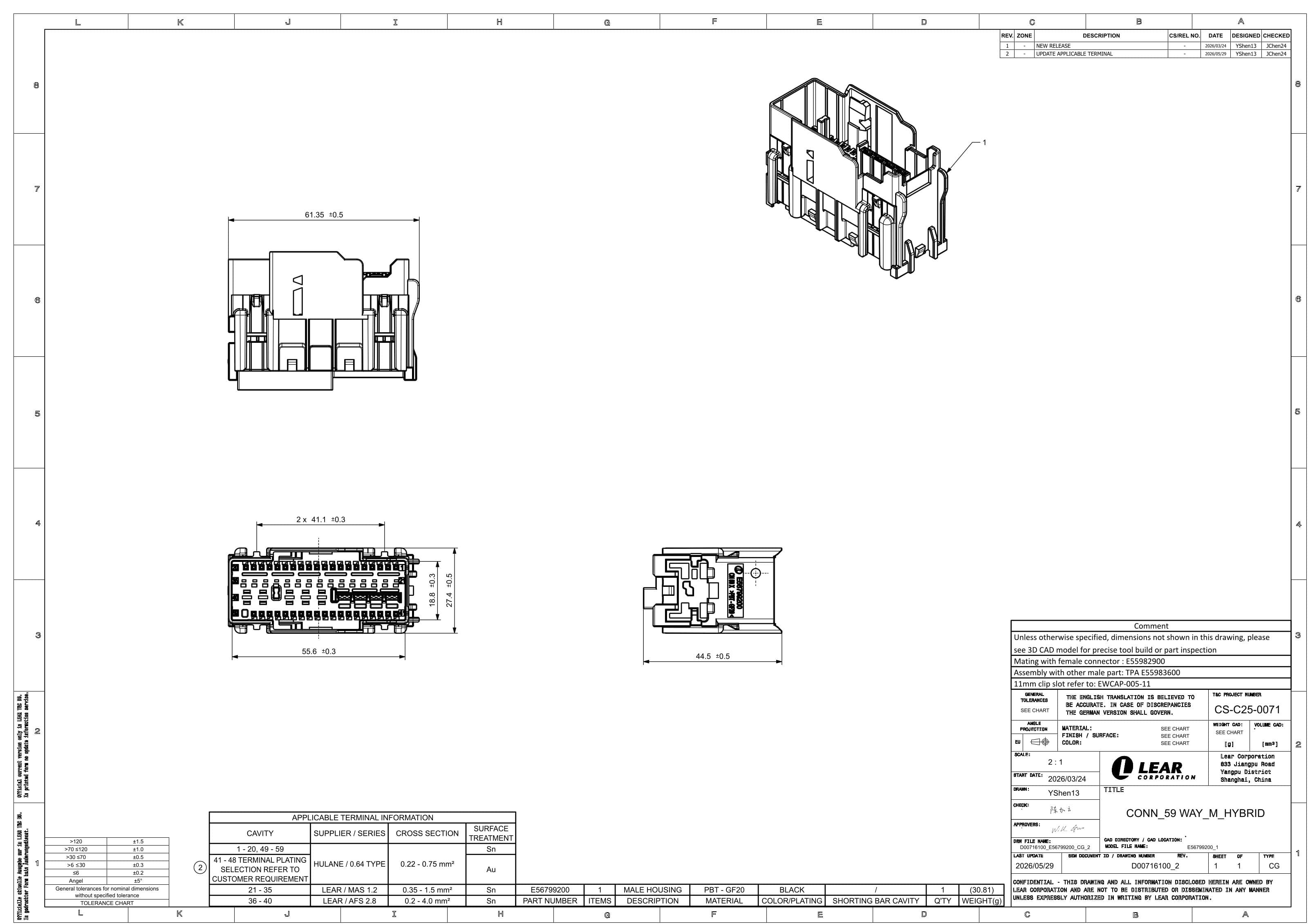

2D Drawing E56799200
E56799200 - 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
Part Number: E56799200
Product Specification
This connector belongs to the COS, MAS, and AFS product families within the CONNECTORS category, offering 59 cavities configured for Tab terminals across three terminal sizes: 0.63, 1.2, and 2.8 mm. The connector is unsealed.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
Terminal Position Assurance (TPA) is included, securing terminals within the housing to prevent incomplete insertion.
The main connector part is molded in PBT GF with a dominant black color. The operating temperature range spans -40 to 125 °C.
Supplied as a housing assembly without shorting bar.
Part Number: E56799200.
