TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E55983400
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 59
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Housing assembly with 4 shorting bars

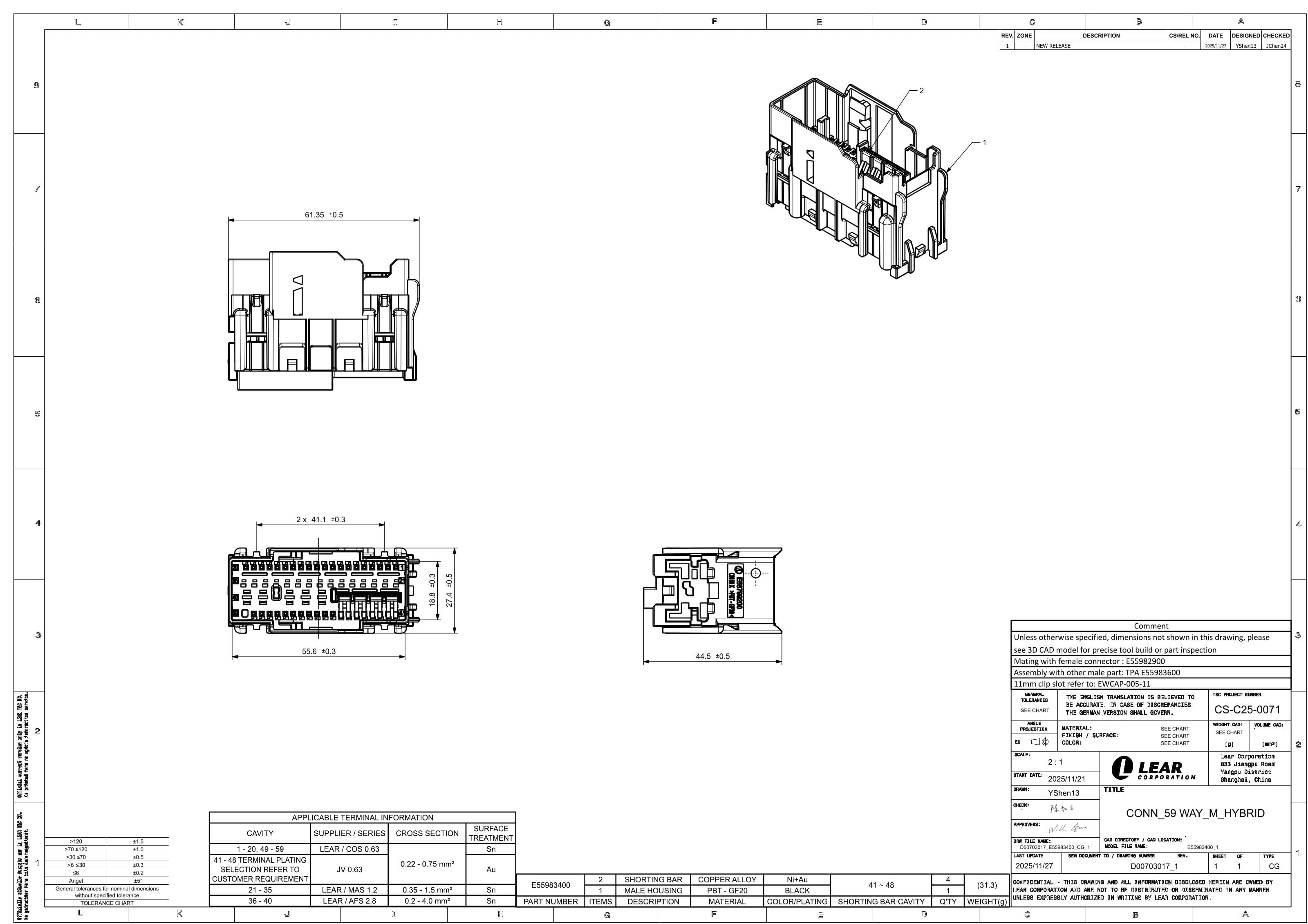

2D Drawing
2D Drawing E55983400
E55983400 - 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
Part Number: E55983400
Product Specification
This unsealed connector provides 59 cavities and accommodates tab terminals across three sizes — 0.63, 1.2, and 2.8 mm — making it compatible with the COS, MAS, and AFS product families within the CONNECTORS category.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
Terminal position assurance is included, with TPA integrated to maintain reliable terminal retention within the housing.
The main connector part is molded in PBT GF with a dominant black color. The operating temperature range spans -40 to 125 °C.
Supplied as a housing assembly with 4 shorting bars.
Part Number: E55983400.
This product requires other components for a fully functional assembly configuration:
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E56799200)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector (E57162600)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector (E55983600)
- 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E55982900)
- 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Natural Connector (E55983300)
