TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E55982900
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 59
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body

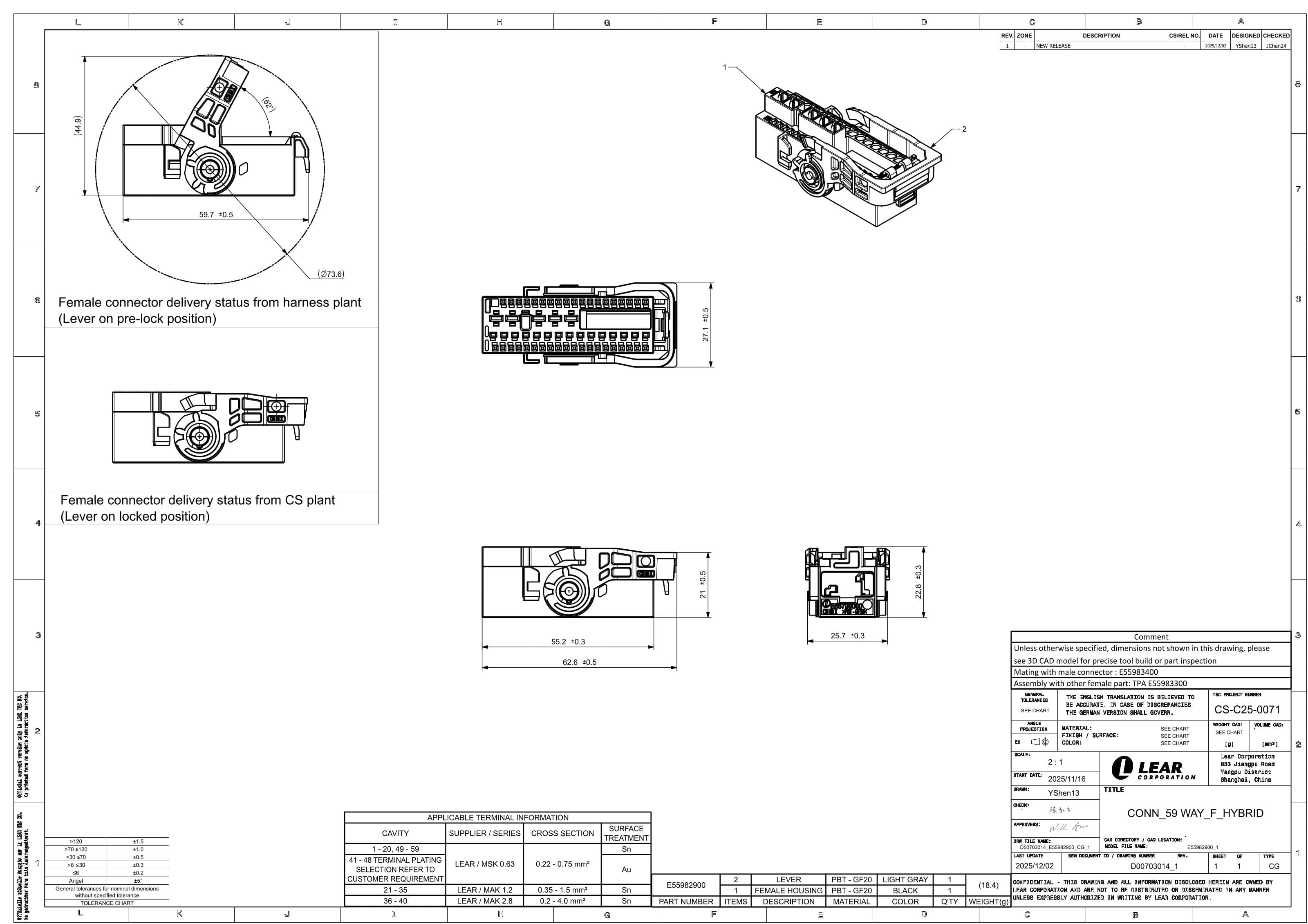

2D Drawing
2D Drawing E55982900

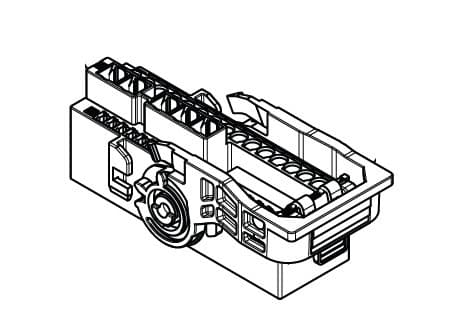

E55982900 - 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
Part Number: E55982900
Product Specification
This connector belongs to the CONNECTORS product category within the MSK and MAK product families. It is configured as a 59-cavity unsealed receptacle, accommodating terminal sizes of 0.63 mm, 1.2 mm, and 2.8 mm within a single housing.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA), ensuring reliable terminal retention and reducing the risk of terminal pushback during mating or in-service conditions.
The main connector part is molded in PBT GF with a dominant black color. It operates across a temperature range of -40°C to +125°C.
Part Number: E55982900.
This product requires other components for a fully functional assembly configuration:
- 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Natural Connector (E55983300)

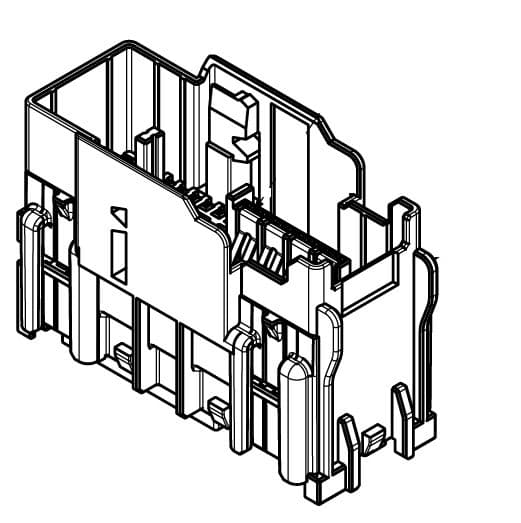

- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E55983400)

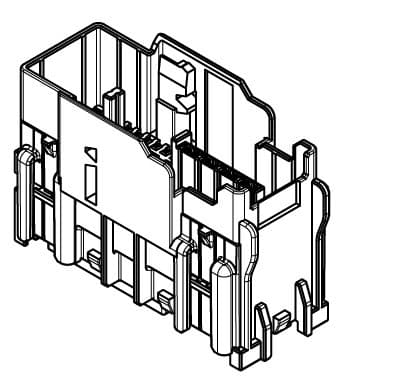

- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E56799200)

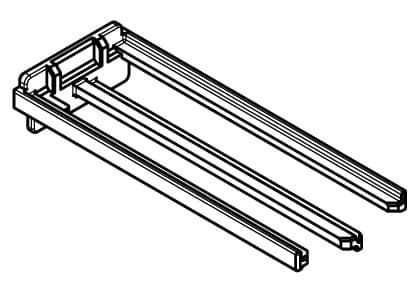

- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector (E55983600)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector (E57162600)
