TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E55983600
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 59
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Tab housing TPA

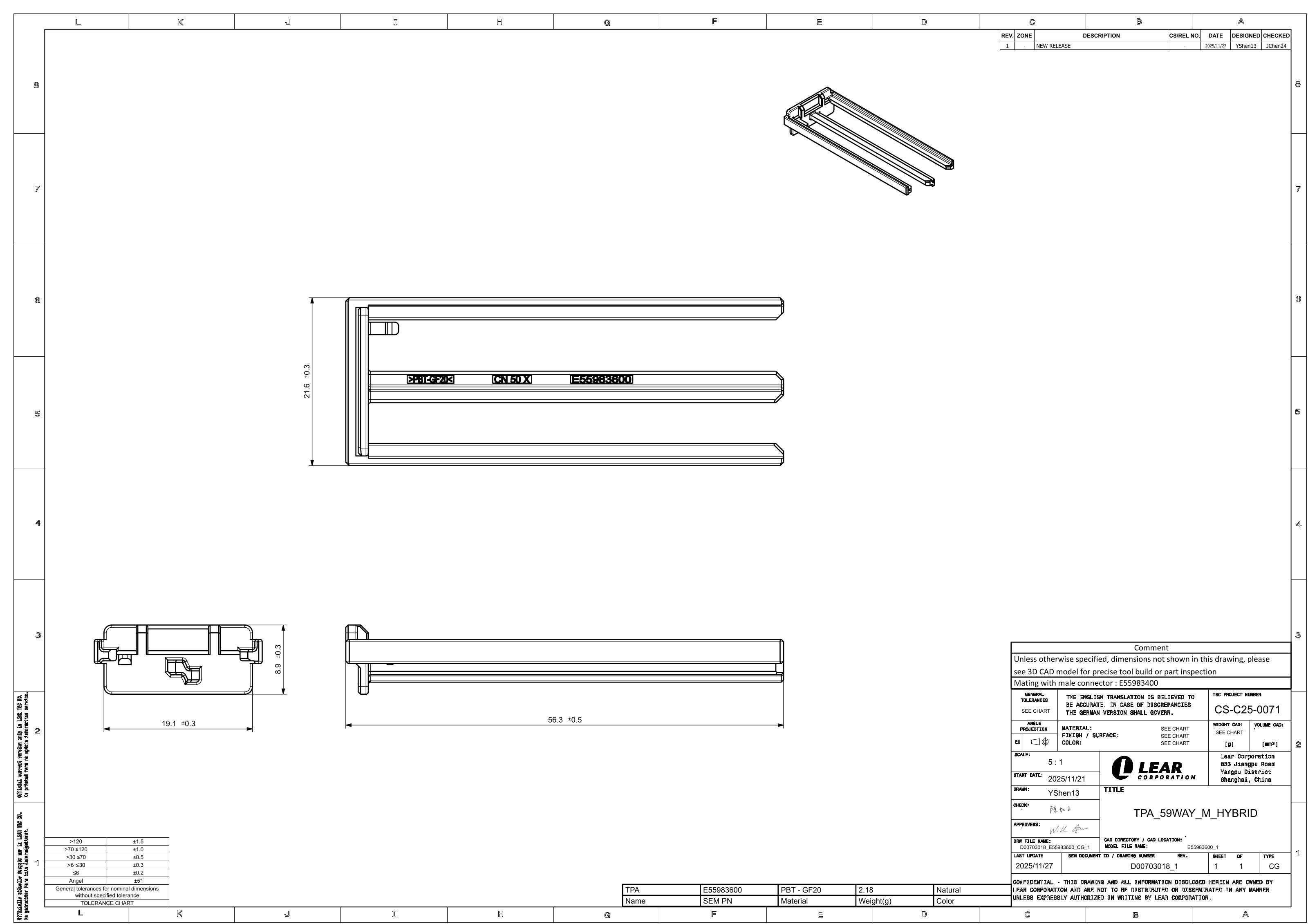

2D Drawing
2D Drawing E55983600
59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E55983400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
59
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E56799200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
59
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector
E57162600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
59
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
E55983600 - 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector
Part Number: E55983600
Product Specification
This connector belongs to the COS, MAS, and AFS product families within the CONNECTORS category, configured as a 59-cavity unsealed housing accepting Tab terminal types across three terminal sizes: 0.63, 1.2, and 2.8 mm.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA); specifically, this is a tab housing TPA configuration, securing terminal retention within the cavity arrangement.
The main connector part is molded in PBT GF with a dominant natural color. The operating temperature range spans -40 to 125 °C.
Part Number: E55983600.
This product requires other components for a fully functional assembly configuration:
