TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E55983300
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 59
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Receptacle housing TPA

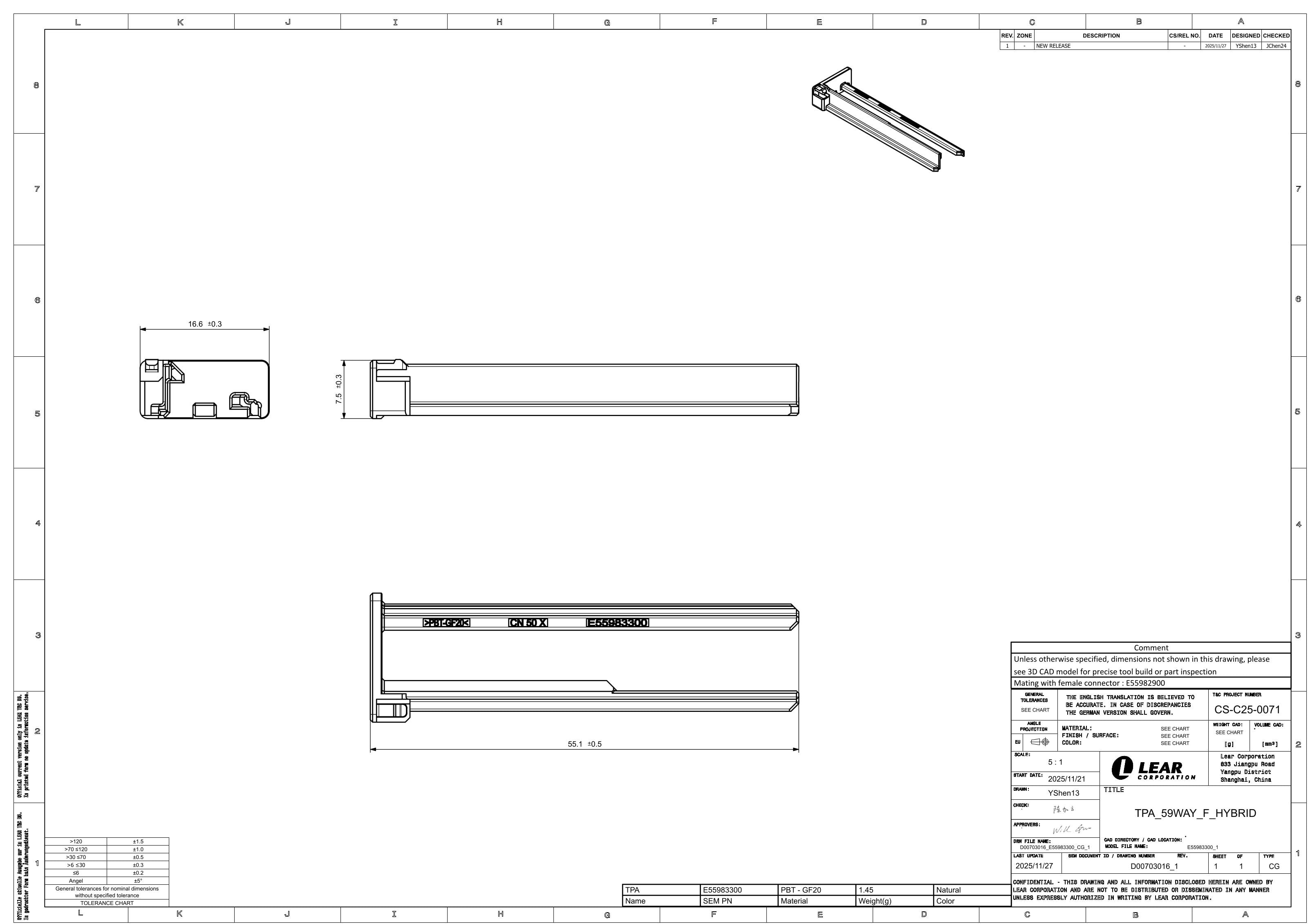

2D Drawing
2D Drawing E55983300
E55983300 - 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Natural Connector
Part Number: E55983300
Product Specification
This unsealed receptacle connector belongs to the MSK and MAK product families within the Connectors category, offering 59 cavities to support high circuit-count configurations.
Compatible terminal sizes span 0.63, 1.2, and 2.8 mm, accommodating mixed terminal arrangements within a single housing. Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA); specifically, the receptacle housing incorporates an integrated TPA to secure terminal retention within the housing.
The main connector part is molded in PBT GF with a dominant natural color. The operating temperature range extends from -40 °C to 125 °C.
Part Number: E55983300.
This product requires other components for a fully functional assembly configuration:
- 59way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E55982900)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E55983400)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E56799200)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector (E55983600)
- 59way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector (E57162600)
