TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E36712400
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 41
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- With 1 shorting bar
2D Drawing

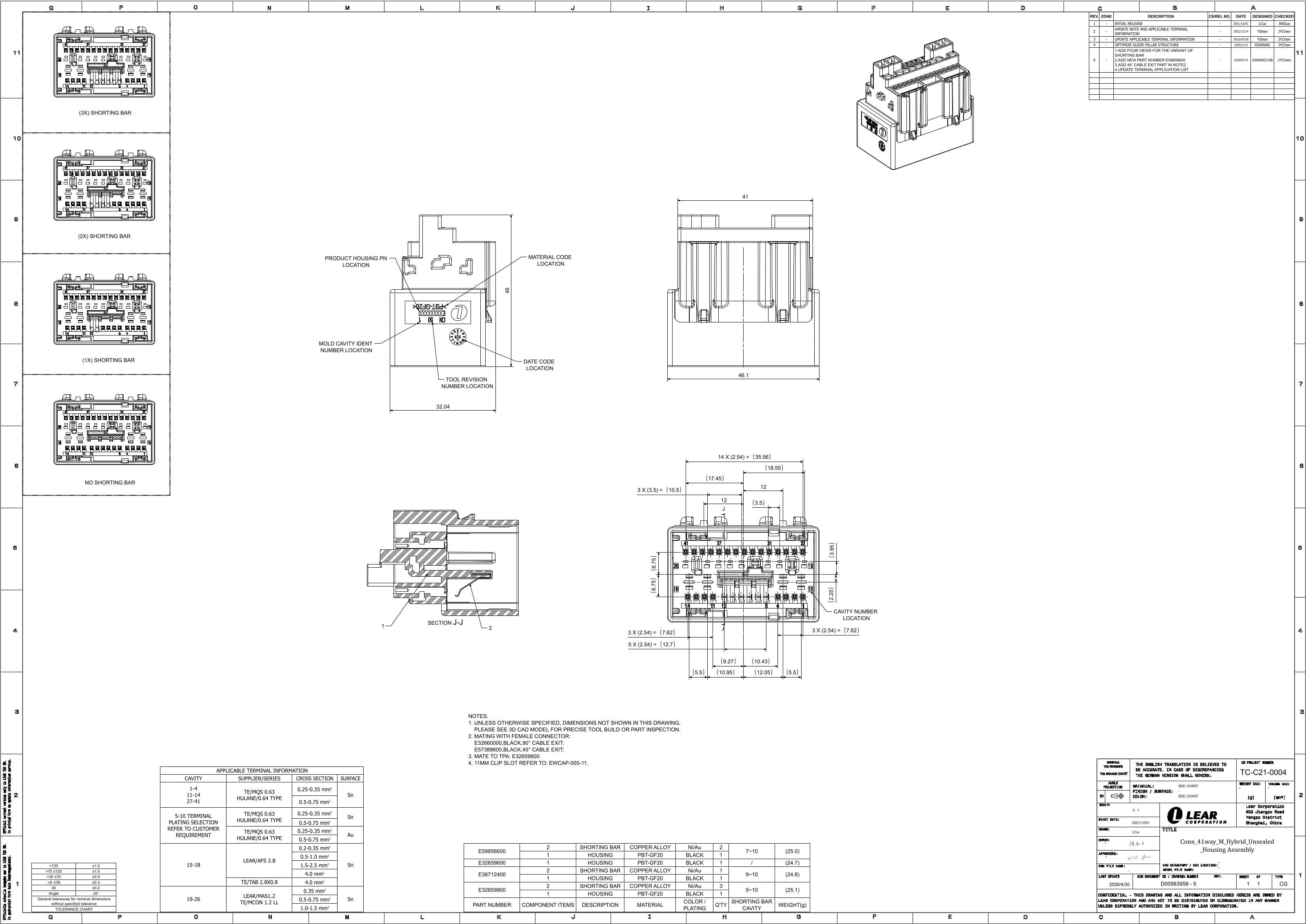

2D Drawing E36712400
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector
E32659800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E35505900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm²
E35506000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E35506100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm²
E35506200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
1.5
E36712400 - 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
Part Number: E36712400
Product Specification
This unsealed connector provides 41 cavities across the COS, MAS, and AFS product families, accommodating tab terminals in three sizes: 0.63, 1.2, and 2.8 mm.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA) and includes 1 shorting bar.
The main connector part is molded in PBT GF with a dominant black color, and operates across a temperature range of -40 to 125 °C.
Part Number: E36712400.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector (E32659800)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660000)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660500)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E35505900)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm² (E35506000)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E35506100)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm² (E35506200)
Lear Connection Systems is offering other variants of this product:
