TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E32660000
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 41
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- 41way cover assembly

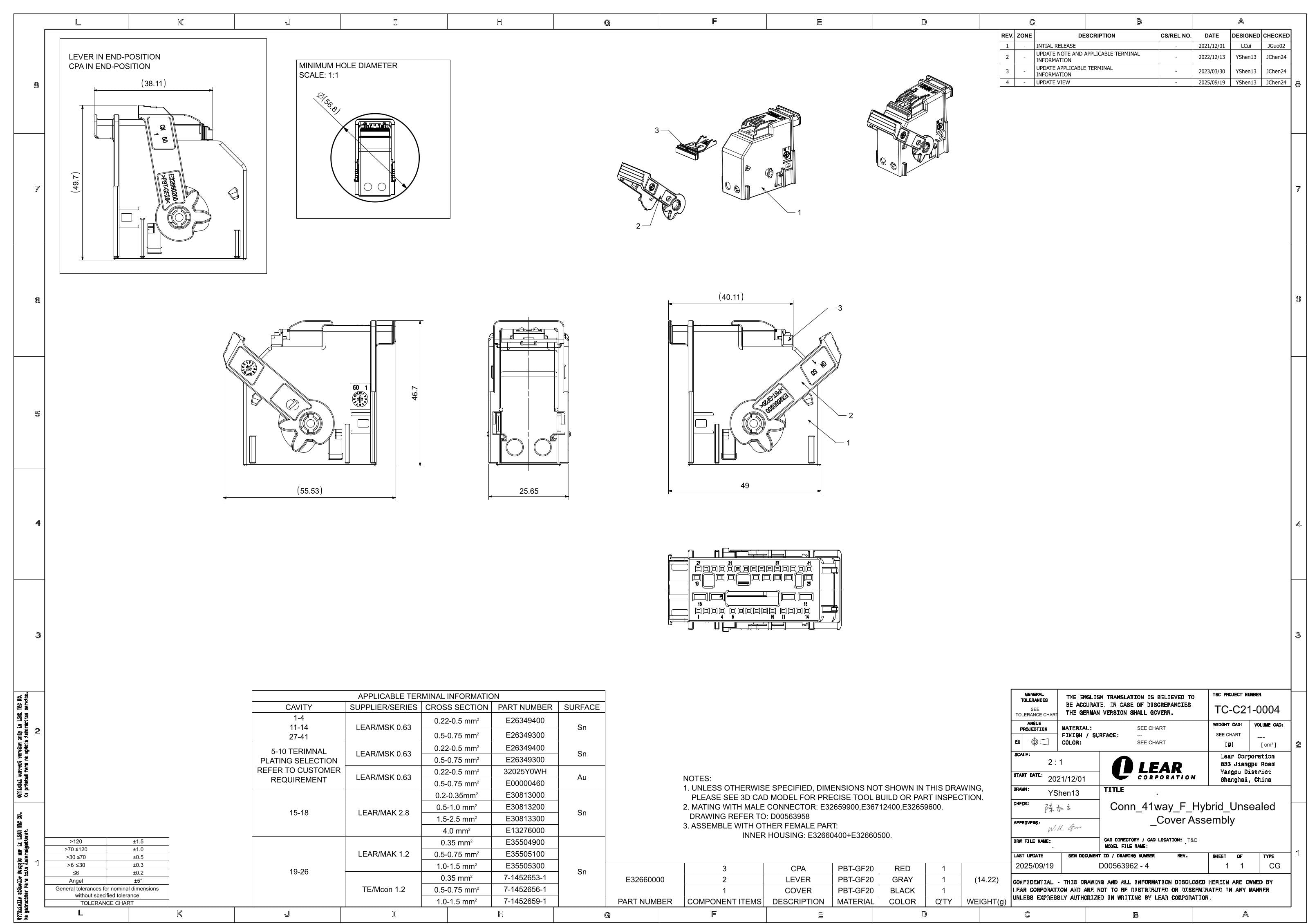

2D Drawing
2D Drawing E32660000
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E36712400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E30813200
Product Category:
TERMINALSLegacy Part Number:
28272000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E30813300
Product Category:
TERMINALSLegacy Part Number:
28273000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm²
32025Y0WH
Product Category:
TERMINALSLegacy Part Number:
28034201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
E00000460
Product Category:
TERMINALSLegacy Part Number:
28038201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E32660000 - 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
Part Number: E32660000
Product Specification
This connector belongs to the CONNECTORS product category within the MSK and MAK product families. It is an unsealed receptacle type with 41 cavities, accommodating terminal sizes of 0.63, 1.2, and 2.8 mm.
Primarily designed for inline and seat to body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA) to maintain reliable terminal retention within the housing.
The main connector part is molded in PBT GF with a dominant black color. Operating temperature range spans from -40 to 125 °C.
This part is supplied as a 41way cover assembly.
Part Number: E32660000, compatible with: 15536575.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659600)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659900)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E36712400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660500)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E30813200)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E30813300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm² (32025Y0WH)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (E00000460)
