TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E32659800
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 41
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- NATURAL
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- Male TPA
2D Drawing

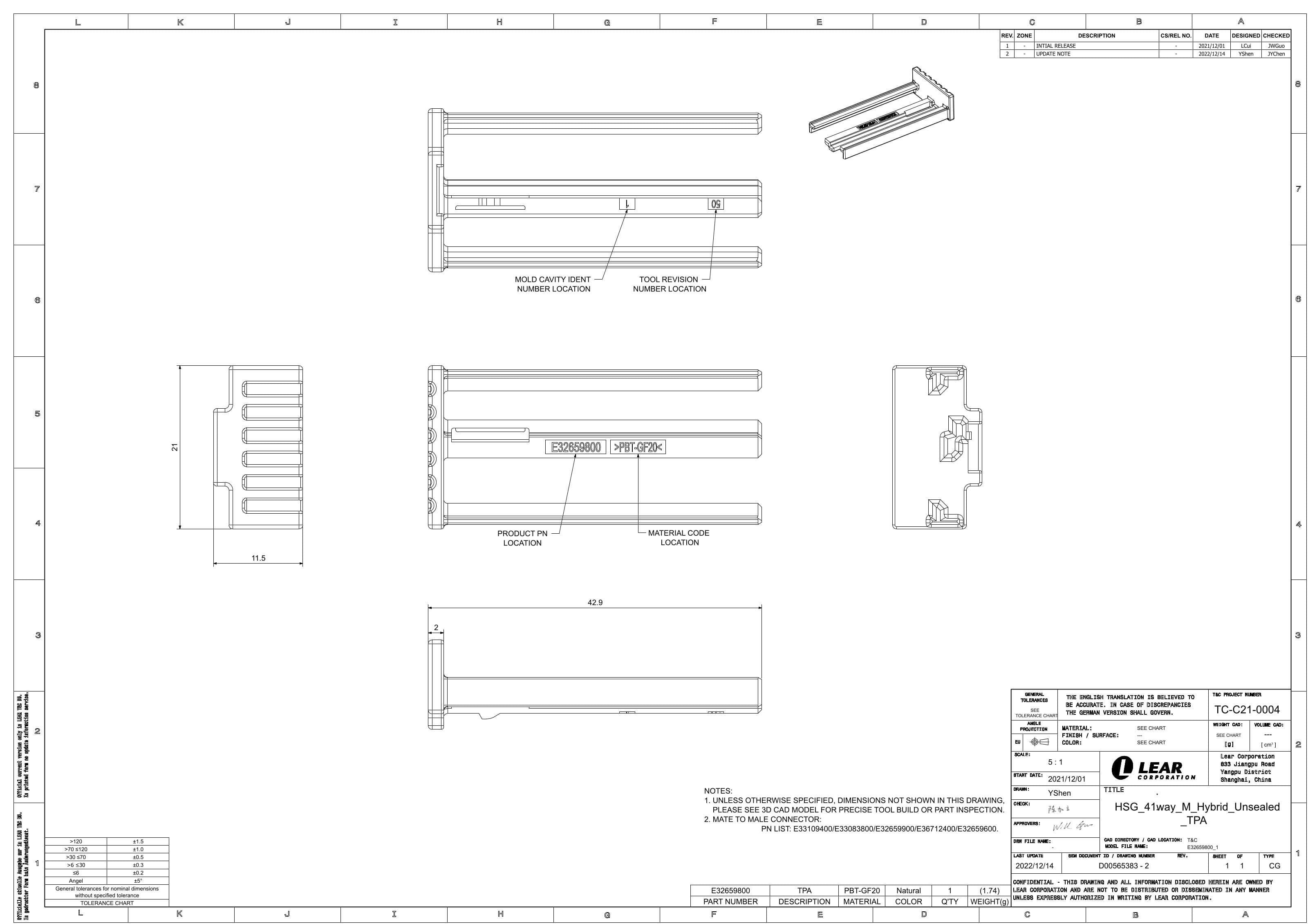

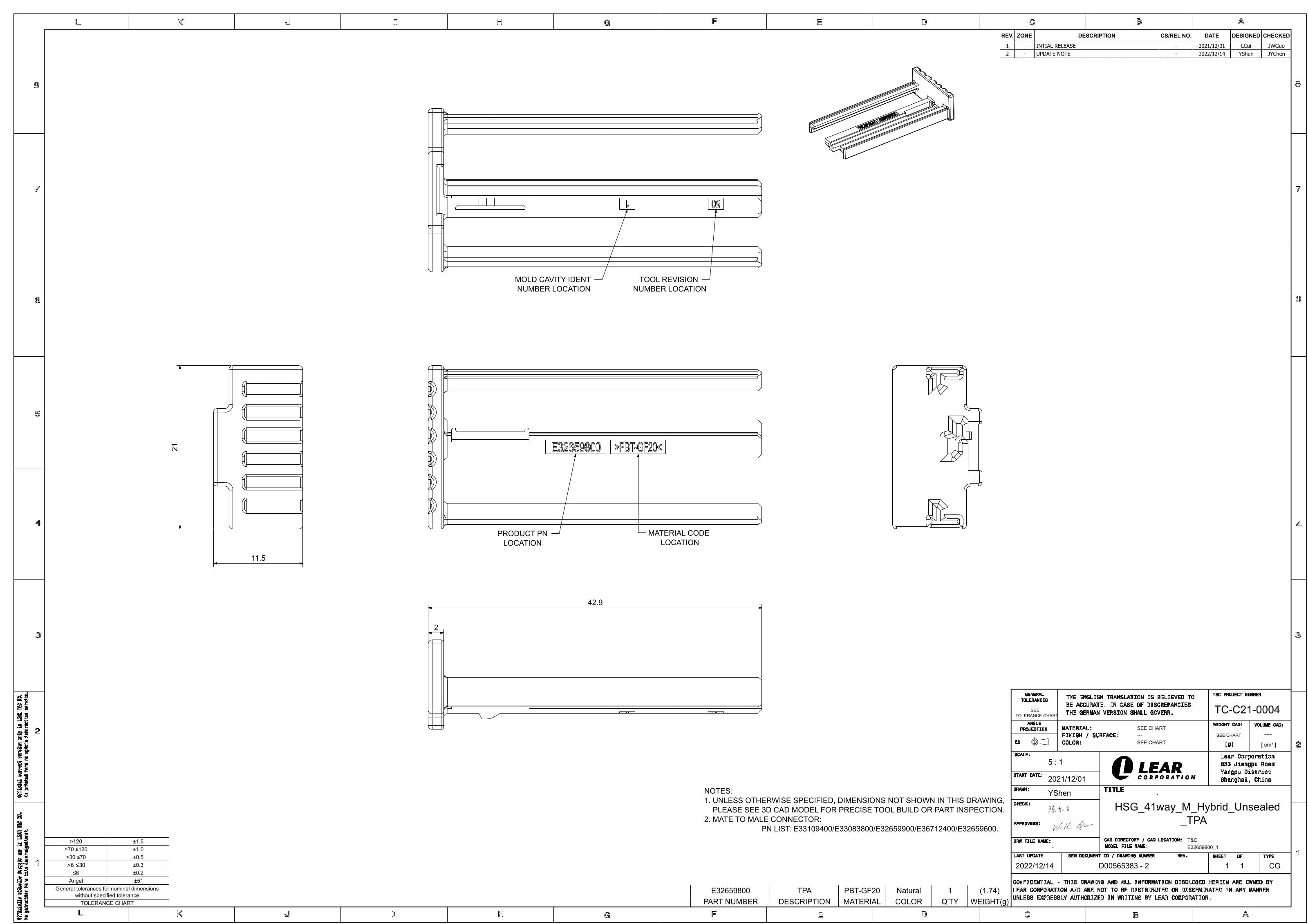

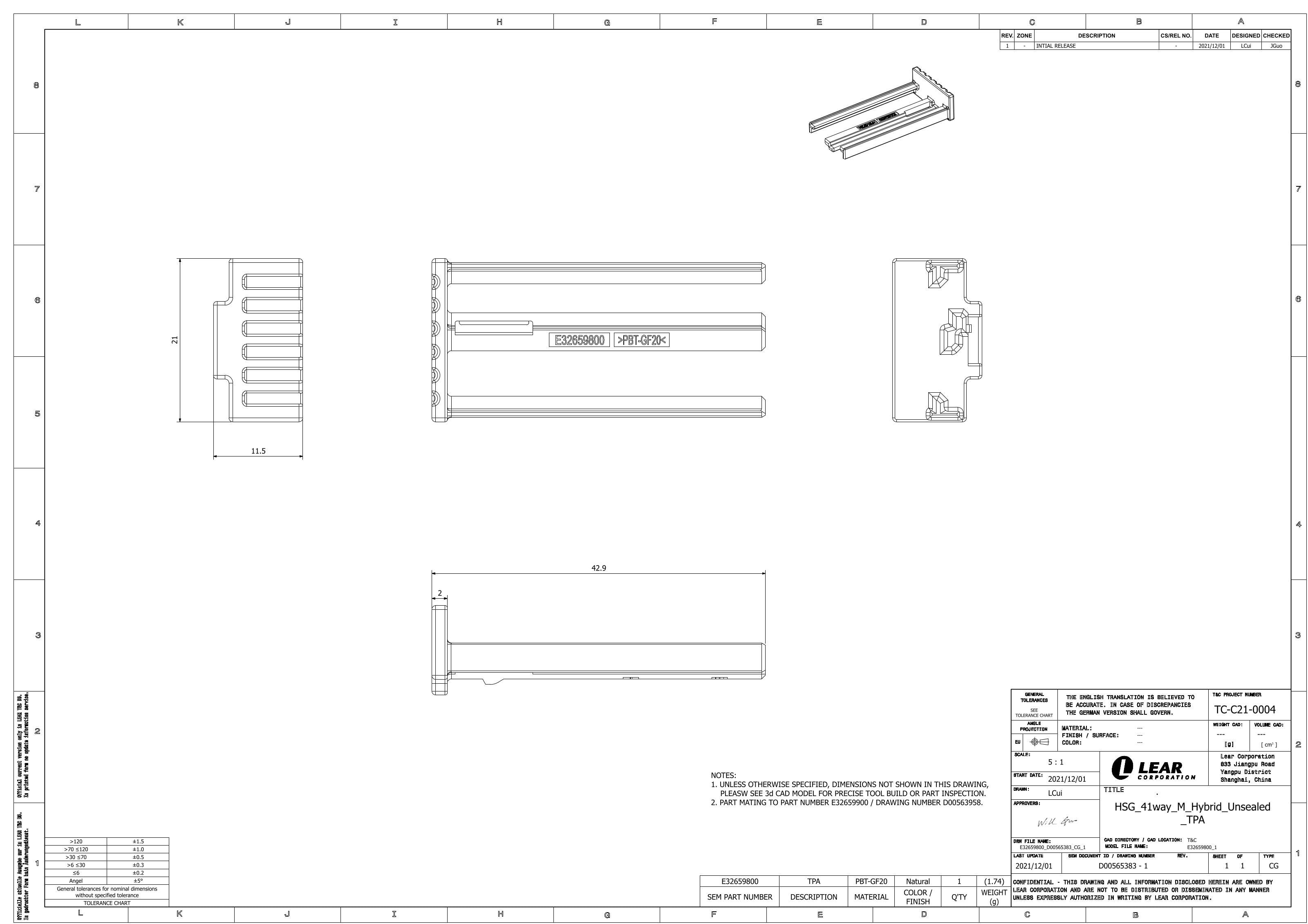

2D Drawing E32659800
E32659800 - 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector
Part Number: E32659800
Product Specification
This connector is a 41-cavity, unsealed unit belonging to the COS, MAS, and AFS product families within the CONNECTORS category. It accepts Tab terminals in sizes of 0.63, 1.2, and 2.8 mm, accommodating a range of circuit requirements within a single housing.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
Terminal Position Assurance is included, implemented as a male TPA to secure terminal retention within the connector housing.
The main connector part is molded in PBT GF with a dominant natural color. The connector operates across a temperature range of -40 to 125 °C.
Part Number: E32659800, compatible with: 15536562.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659600)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659900)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E36712400)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33083800)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33109400)
