TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E32660500
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 41
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- 23way housing
2D Drawing

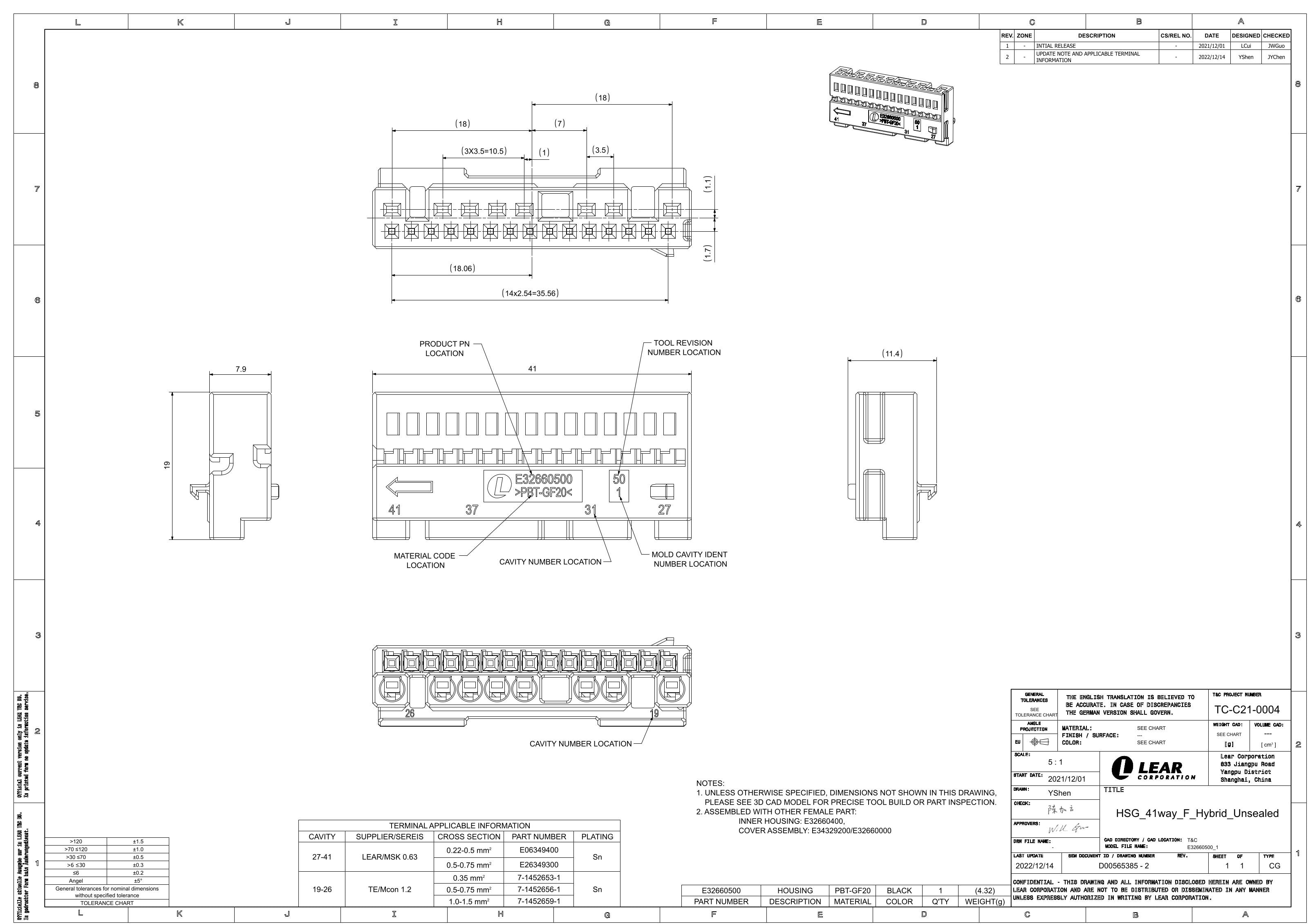

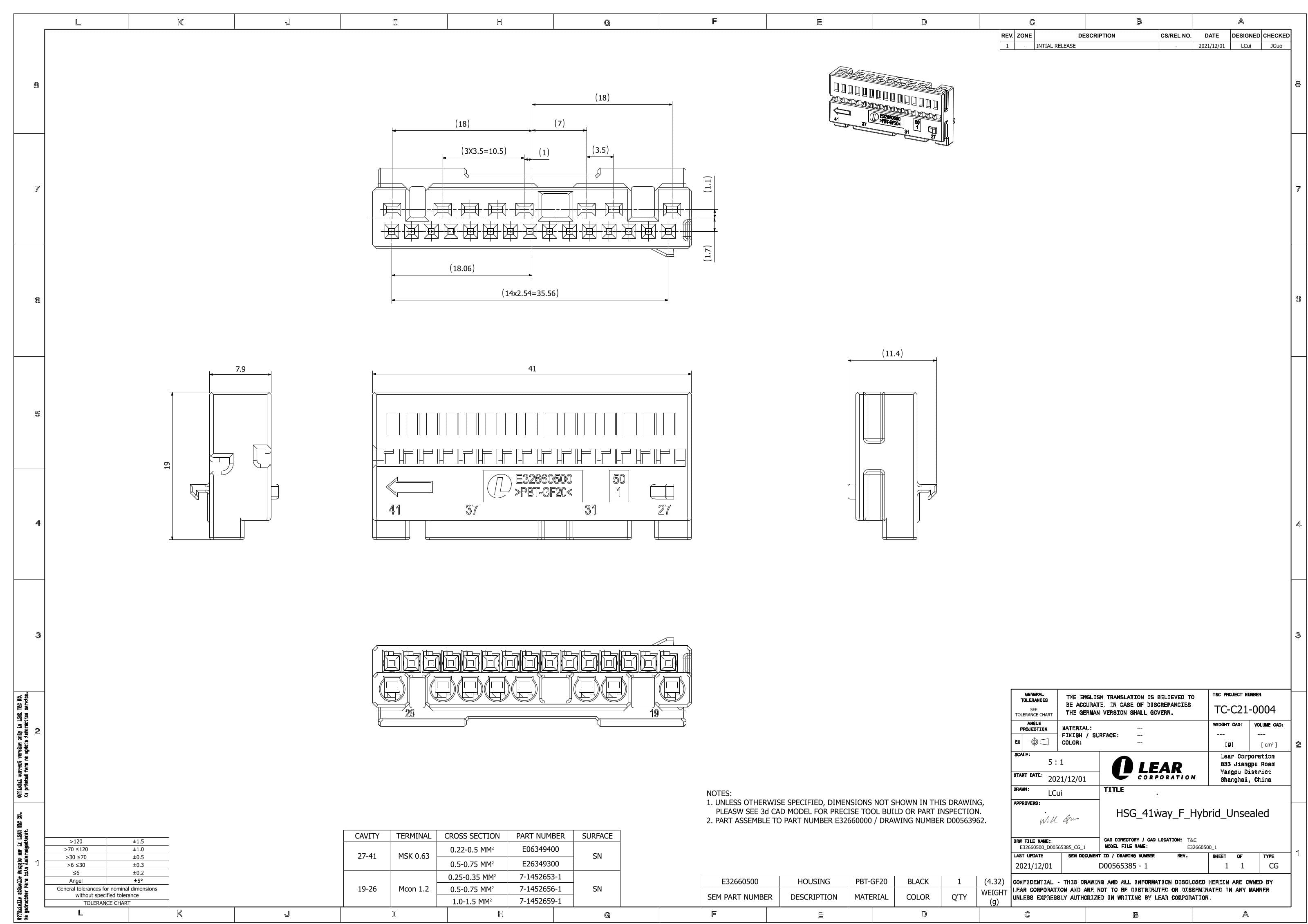

2D Drawing E32660500
E32660500 - 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
Part Number: E32660500
Product Specification
This unsealed receptacle connector belongs to the MSK and MAK product families within the connectors category, offering 41 cavities across terminal sizes of 0.63, 1.2, and 2.8 mm to accommodate mixed-circuit configurations.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA), ensuring reliable terminal retention within the housing. An operating temperature range of −40 to 125 °C supports use across demanding thermal environments.
The main connector part is molded in PBT GF with a dominant black color. Note that this part is a 23-way housing.
Part Number: E32660500, compatible with: 15536564.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E36712400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660000)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E57941600)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector (E34329200)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
