TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E32660400
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 41
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Remarks
- 18way housing

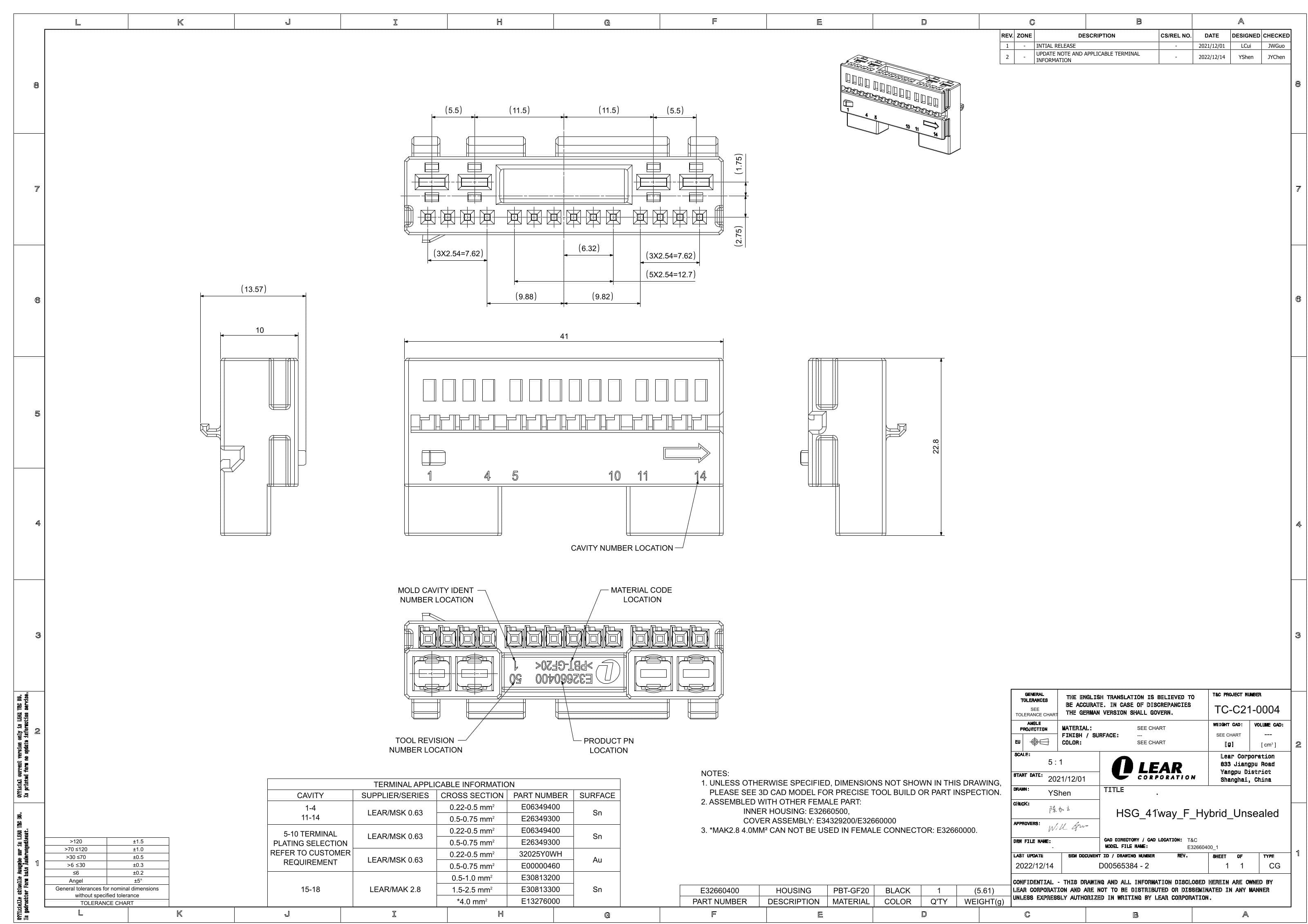

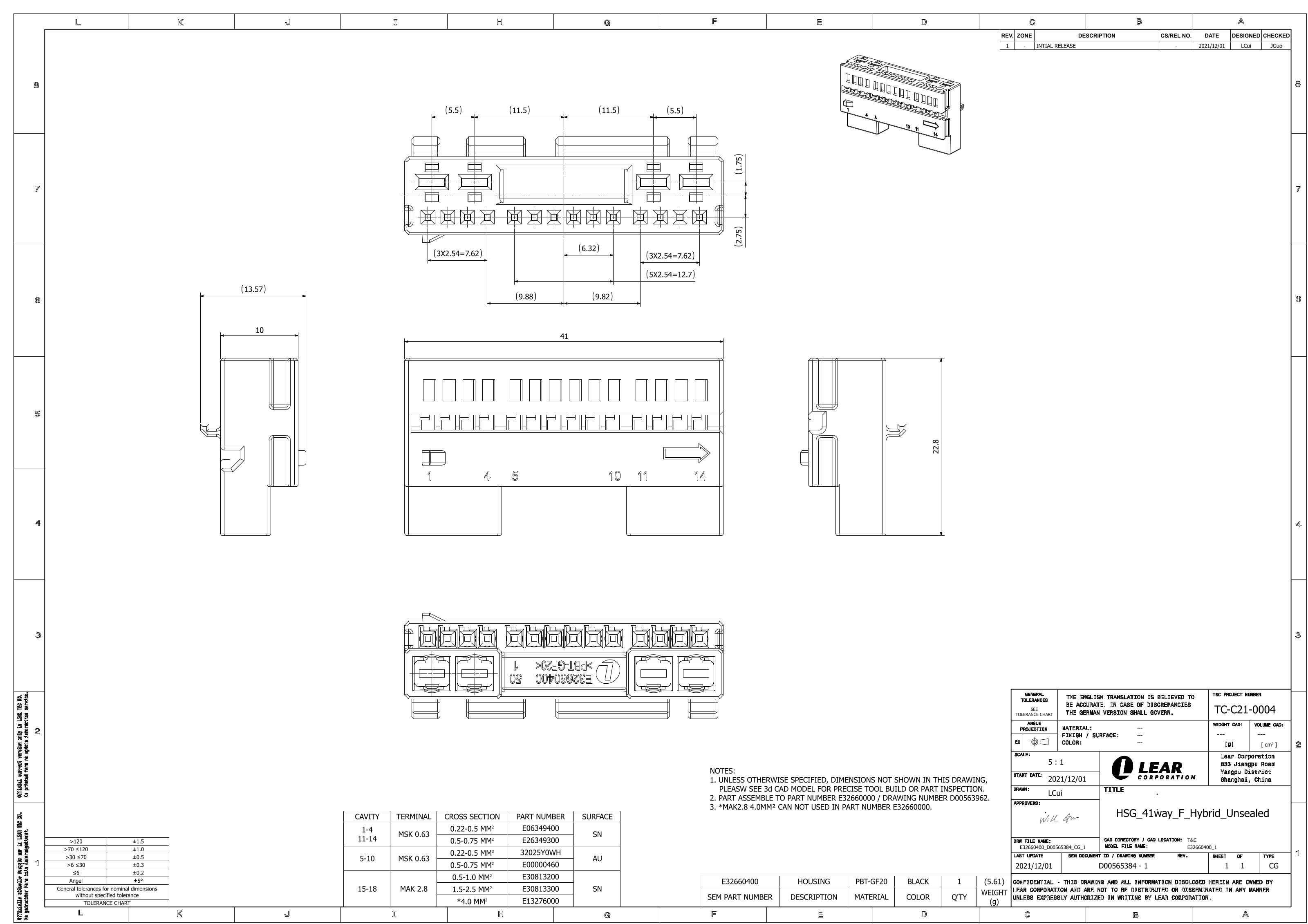

2D Drawing
2D Drawing E32660400
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E36712400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E57941600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector
E34329200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm²
E13276000
Product Category:
TERMINALSLegacy Part Number:
29086000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E30813200
Product Category:
TERMINALSLegacy Part Number:
28272000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E30813300
Product Category:
TERMINALSLegacy Part Number:
28273000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm²
32025Y0WH
Product Category:
TERMINALSLegacy Part Number:
28034201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
E00000460
Product Category:
TERMINALSLegacy Part Number:
28038201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E32660400 - 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
Part Number: E32660400
Product Specification
This unsealed receptacle connector belongs to the MSK/MAK product family within the connectors category, offering 41 cavities to accommodate a high circuit count in a single housing.
Compatible with MSK and MAK terminal types across three terminal sizes — 0.63, 1.2, and 2.8 mm — the connector supports mixed-gauge wiring configurations within one interface. Primarily designed for inline and seat-to-body applications in automotive vehicles.
Terminal position assurance (TPA) is included, securing terminals within the housing and reducing the risk of incomplete seating.
The main connector part is molded in PBT GF with a dominant black color. Operating temperature range is -40 to 125 °C.
Online remarks: 18way housing.
Part Number: E32660400, compatible with: 15536566.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E36712400)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660000)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E32660500)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E57941600)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector (E34329200)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm² (E13276000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E30813200)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E30813300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm² (32025Y0WH)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (E00000460)
