TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E35506100
- Product Family
- MAS
Other properties
- Terminal Size [mm]
- 1.2
- Application
- Signal
- Core Material
- CuNiSi
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 0.75
- Min Temp (C)
- -40
- Max Temp (C)
- +130

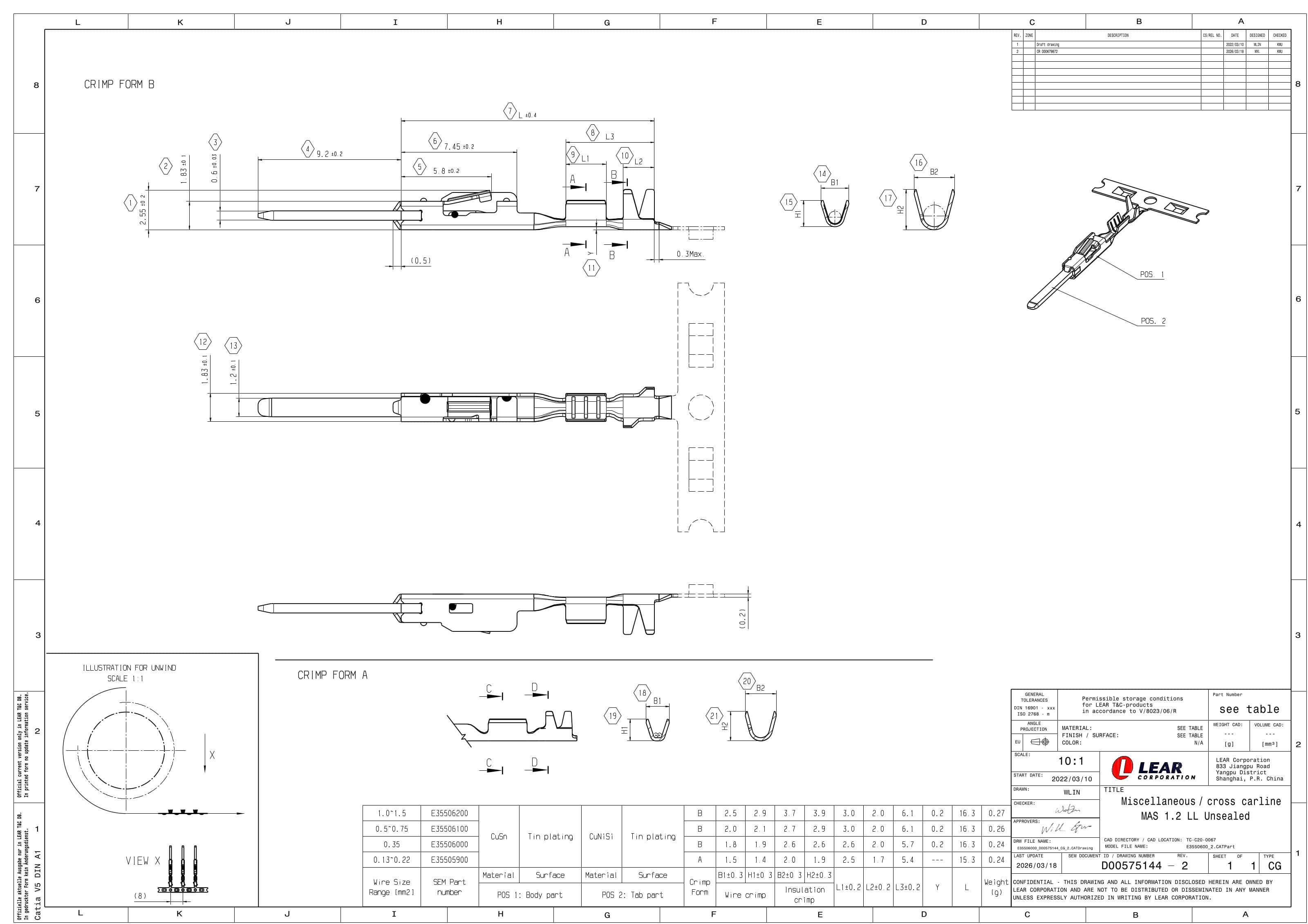

2D Drawing
2D Drawing E35506100
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E35505900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm²
E35506000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm²
E35506200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
1.5

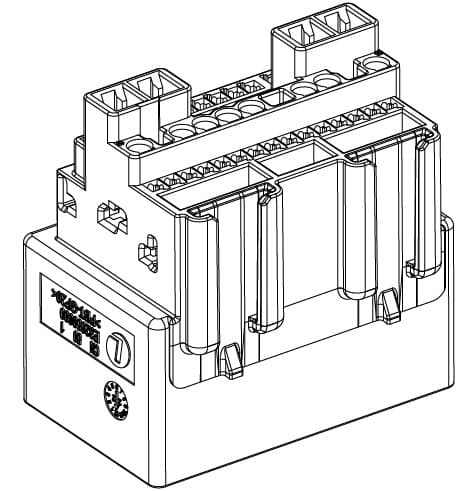

41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E36712400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector
E32659600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33109400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E56787300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33083800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
E35506100 - MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
Part Number: E35506100
Product Specification
An unsealed tab terminal belonging to the MAS product family, sized at 1.2 mm. It falls within the Terminals product category.
Rated for operation across a temperature range of −40 °C to +130 °C.
Part Number: E35506100.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659900)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E36712400)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Black Connector (E32659600)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33109400)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E56787300)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33083800)
